DRIVE SYSTEM AND ENGINE INSTALLATION SECTION - 6
Page 20 / 54 90-899883183 DECEMBER 2007
NOTICE
Fastening any items to the steering cables or outer casings prevents normal operation. The
steering cable and outer casing must be free to move back and forth. Do not fasten any items
to the steering cable and outer casing.
7827
a

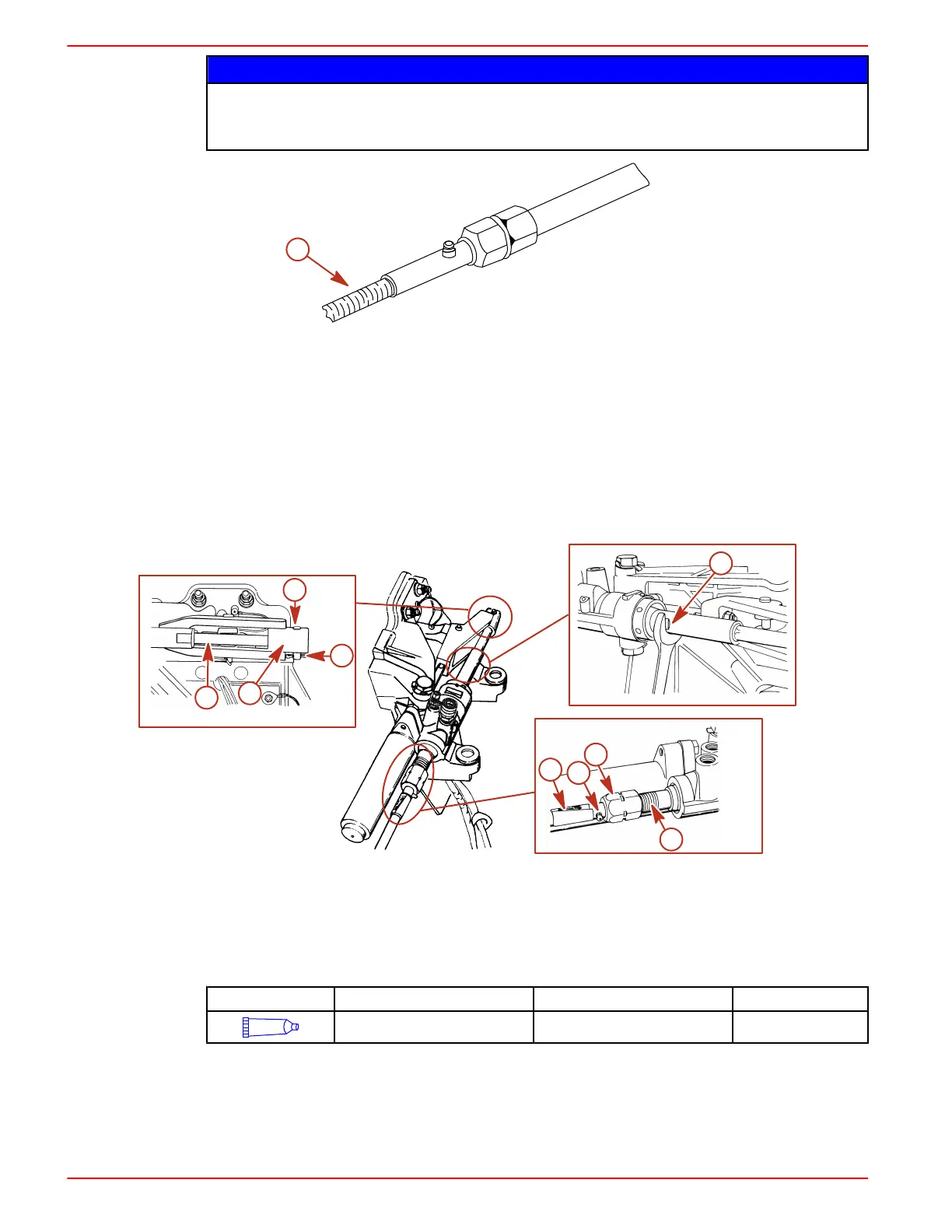

a - Steering cable and outer casing
11. Connect the steering cable as follows:
a. Coat the steering cable end with a liberal amount of lubricant.
b. Install the steering cable and secure with hardware as shown.
IMPORTANT: Cable guide tube flat surfaces must be positioned vertically or slight feedback in
the steering system could be encountered.
c. Using a suitable wrench hold the flat surfaces on the cable guide tube in the vertical
position. Torque the coupler nut. Ensure that the flat surfaces are still aligned vertically
after torque is applied to the coupler nut.
d
h
d
c
b
a
g
f
e
7830
a - Steering cable
b - Grease fitting
c - Cable coupler nut
d - Cable guide tube
e - Steering cable end
f - Clevis
g - Clevis pin
h - Cotter pin
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Steering cable end 92-802865Q02
To Next Page
