SECTION - 6 DRIVE SYSTEM AND ENGINE INSTALLATION
90-899883183 DECEMBER 2007 Page 19 / 54

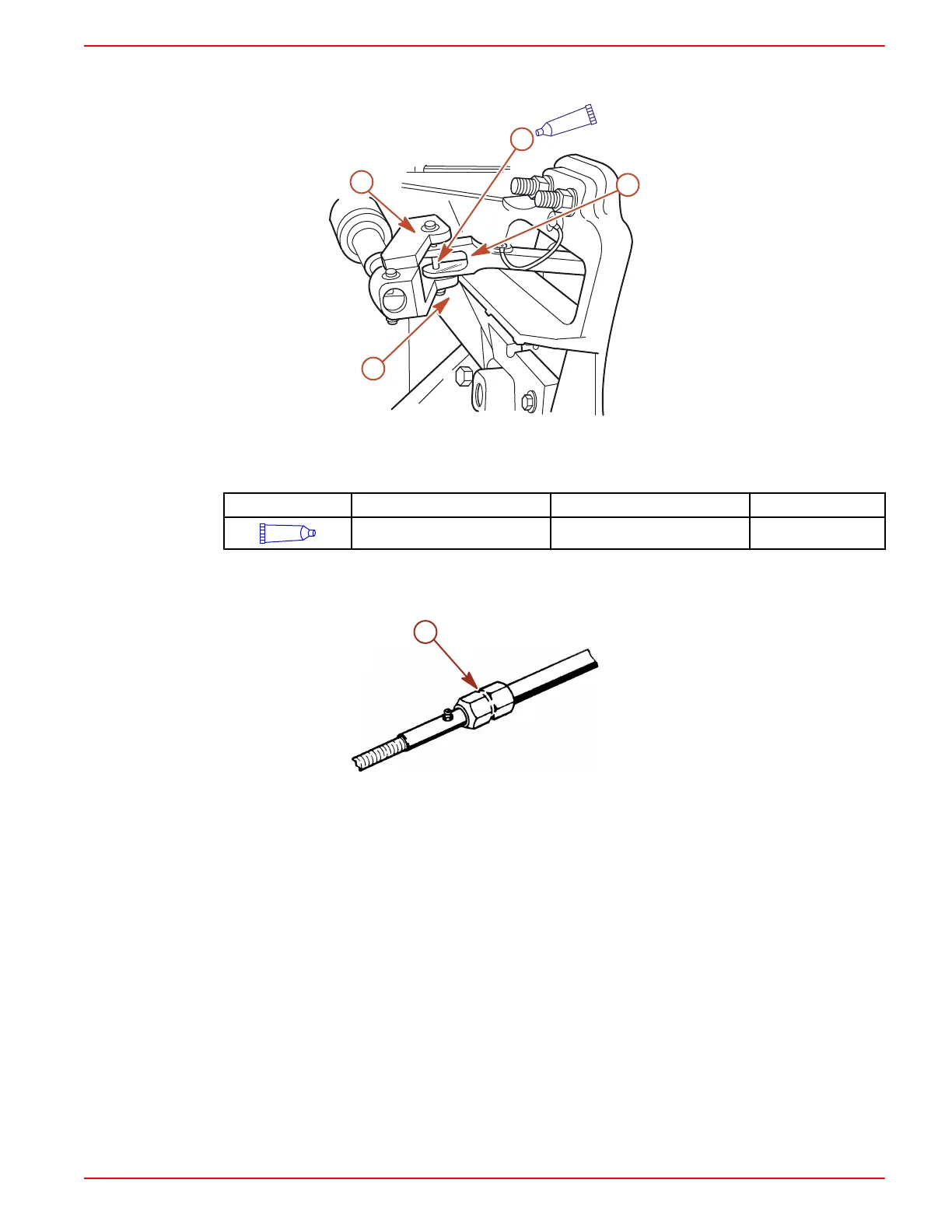

NOTE: Insert the clevis pin from the top to ensure that the cotter pin hole is as shown in the
diagram.
7822
a
b
c
d
a - Clevis
b - Steering lever
c - Clevis pin
d - Cotter pin
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Clevis pin 92-802865Q02
IMPORTANT: Quicksilver RideGuidet steering cable has a self‑locking coupler nut and does not
require an external locking sleeve or locking plate.
7255
a
a - Self‑locking coupler nut
