DRIVE SYSTEM AND ENGINE INSTALLATION SECTION - 6
Page 18 / 54 90-899883183 DECEMBER 2007

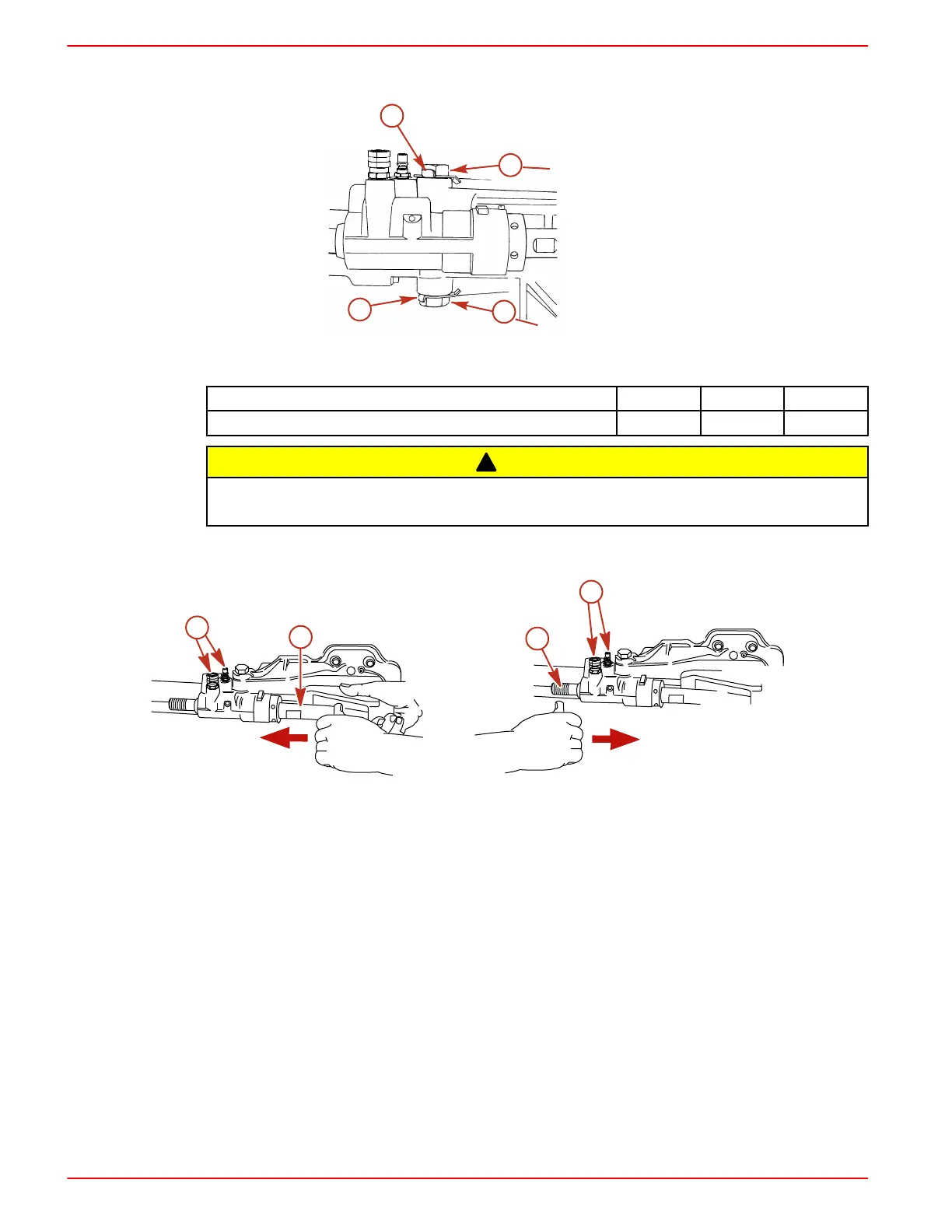

NOTE: It may be necessary to tighten the pivot bolts further to align the flats on bolt head with
the tabs on the washer.
b
a
a
A
A
b
7711
a - Pivot bolt b - Bent tab
Description Nm lb. in. lb. ft.
Upper and lower pivot bolt 34 25
!
CAUTION
Contents under pressure. Moving the control valve cable guide tube with the hoses disconnected
expels fluid from the ports. Wear eye protection while servicing the system.
9. While wearing eye protection, to avoid expelled fluid, move the control valve cable guide tube
in the directions shown, so that it will be less difficult to pull it out or push it in during connection.
a
b
b
a
7819
a - Port b - Control valve cable guide tube
10. Connect the clevis to the steering lever. Lubricate the clevis pin. Be sure to spread both ends
of the cotter pin.
