STARTING AND ELECTRICAL SECTION - 7
Page 14 / 22 90-899883183 DECEMBER 2007
Boat Harness

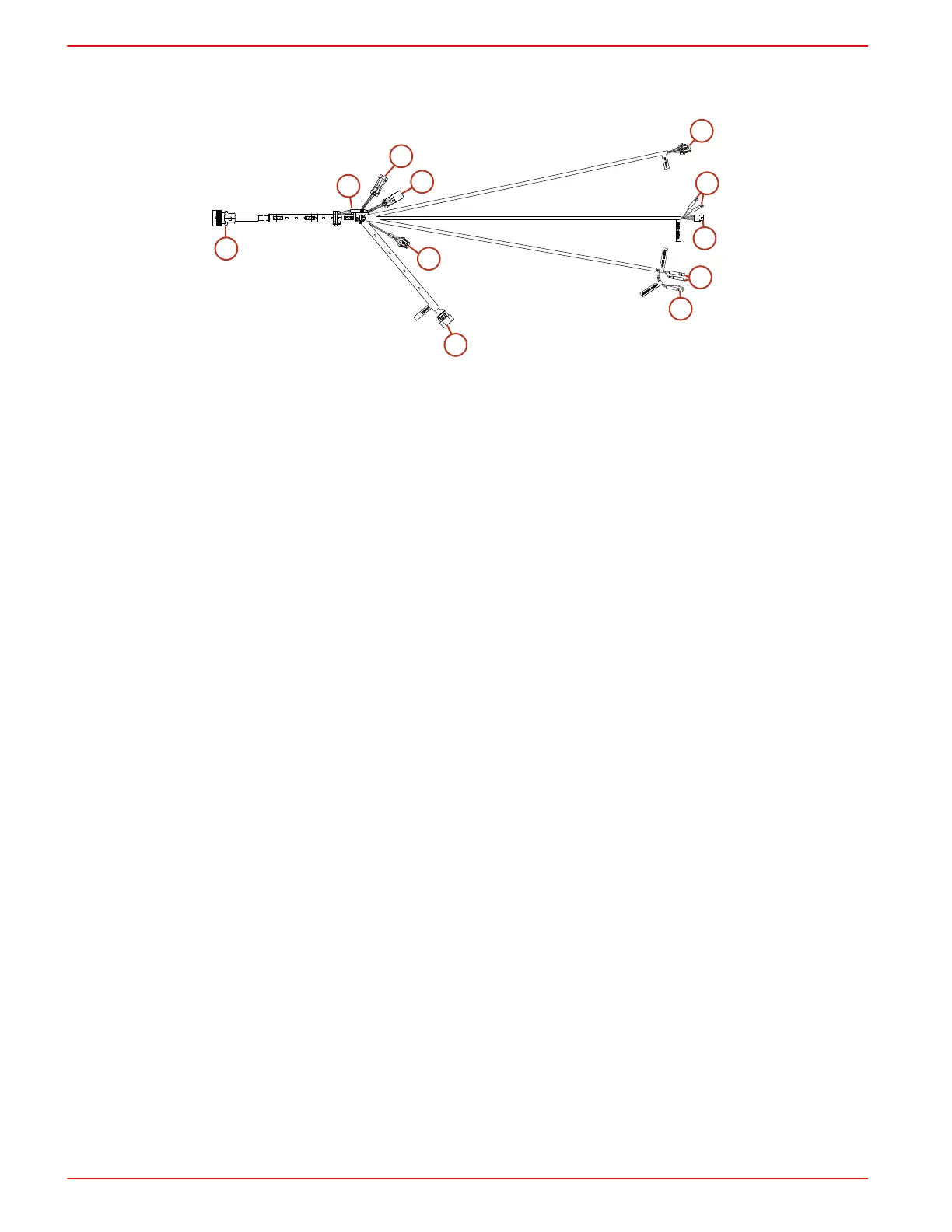

DRAWING
12340
1
7
8
10
11
9
2
3
4
5
6
1 - 14‑pin Deutsch connector
2 - Key switch connector
3 - Trim switch (outboard only)
4 - Neutral switch
5 - Lanyard switch (sterndrive) or key
switch + connection
6 - Lanyard (outboard) or E Stop
connection
7 - Warning horn
8 - Accessory relay connection (15‑amp)
9 - Gauge connector/CAN connector for
SmartCraft
10 - CAN P (CAN 1) with resistor cap
11 - CAN V (CAN 3) with weather cap
To Next Page
