SECTION - 5
COOLING SYSTEM
90-899883183 DECEMBER 2007
Page 3 / 4

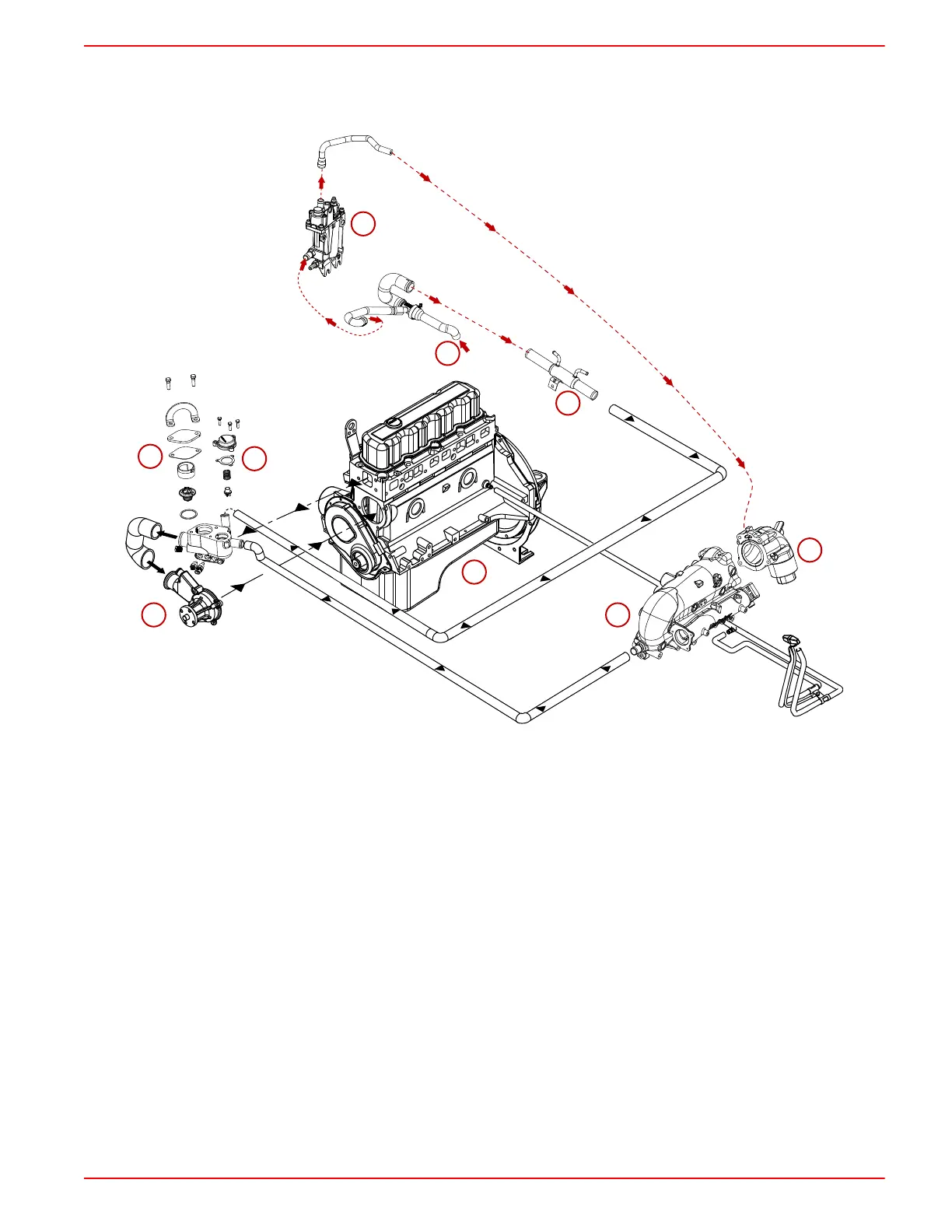

3.0 MPI Water Flow Diagrams
Models with Seawater Cooling
32741
1
2
3
4
5
6
7
8
9
1 -
From Transom
2 -
Seawater intake
3 -
Power steering cooler (if equipped)
4 -
Poppet valve assembly
5 -
Thermostat housing
6 -
Engine circulating pump
7 -
Engine block and cylinder head
assembly
8 -
Intake and exhaust manifold
9 -
Exhaust elbow
36
