DRIVE SYSTEM AND ENGINE INSTALLATION SECTION - 6
Page 38 / 54 90-899883183 DECEMBER 2007

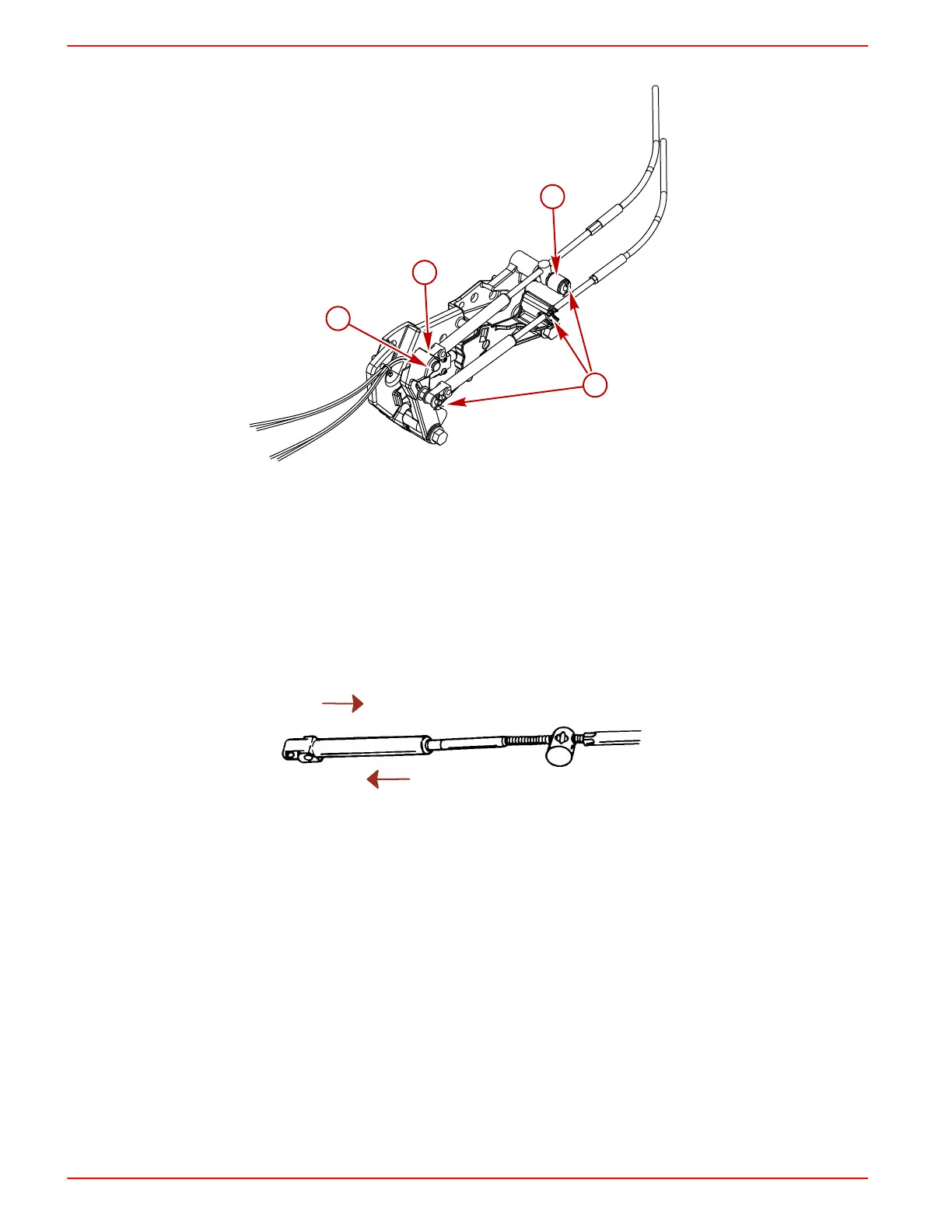

Order a spacer kit to connect the remote control shift cable when shift assist assembly is not used.
32845
a
c
b
cc
d
a - Clevis pin
b - Washer
c - Spacer
d - Cotter pin
NOTE: Do not discard shift assist assembly until after it is used below.
IMPORTANT: Shift cable must be connected at the remote control for the appropriate rotation (LH
or RH) drive unit, as explained following:
RIGHT‑HAND ROTATION ‑ Control cable will have to be installed in remote control so that cable
end will move in direction "A" when shift handle is placed in the FORWARD position.
LEFT‑HAND ROTATION ‑ Control cable will have to be installed in remote control so that cable
end will move in direction "B" when shift handle is placed in the FORWARD position.
B
A
6614
INSTALLATION
1. Remove shift assist assembly.
