SECTION - 6 DRIVE SYSTEM AND ENGINE INSTALLATION
90-899883183 DECEMBER 2007 Page 3 / 54

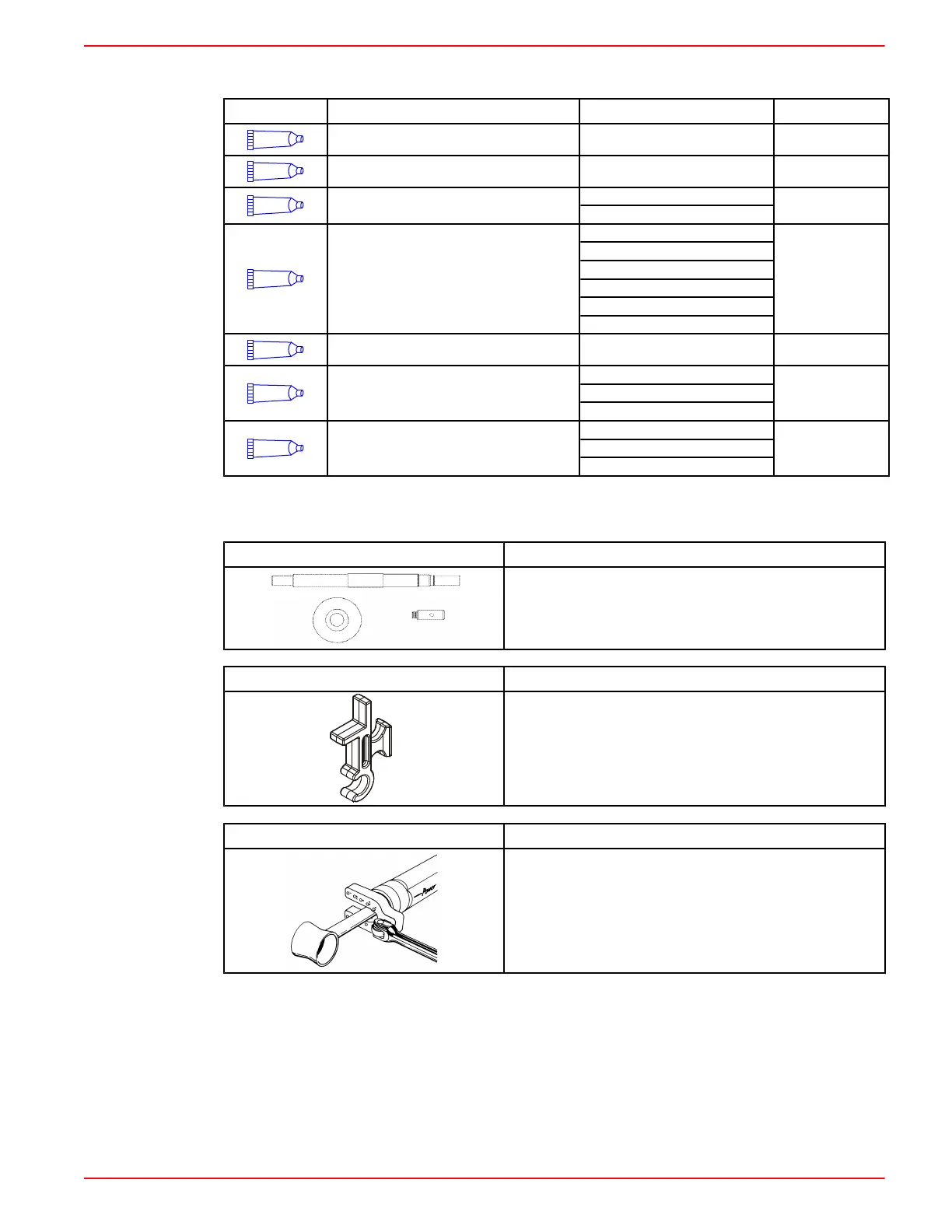

Lubricant, Sealant, Adhesives
Tube Ref No. Description Where Used Part No.
7
Loctite 271 Threadlocker Trim cylinder bolt threads 92-809819
9
Loctite 567 PST Pipe Sealant Brass fitting threads 92-809822
25
Liquid Neoprene
Battery cable connections
All electrical connections
92- 25711 3
34
Special Lubricant 101
Steering cable end
Pivot bolt threads
Power steering bushings
Upper and lower pivot bolts
Clevis pin
Trim cylinder end cap
92-802865Q02
87
High Performance Gear Lubricant Gear lube monitor 92-858064K01
91
Engine Coupler Spline Grease
Coupler splines
Ujoint O-rings
Drive shaft splines
92-802869A 1
95
2-4-C Marine Lubricant with Teflon
Bell housing studs
Trim cylinder hardware
Trim cylinder
92-802859A 1
Special Tools
Alignment Tool Assembly 91‑805475A 1
Aligns the engine and the sterndrive unit during installation.
Shift Slide Stabilizer 91‑865232
Holds the shift slide in the proper position as the sterndrive is
installed onto the bell housing studs.
Trim Cylinder End Cap Tool 91‑821709T
Allows easy removal of the trim cylinder end caps. Required
if tilt limit spacers are to be installed or if the trim in limit spacer
is to be removed (to allow additional trim in range).
Transom Cutout
Finding The Crankshaft Centerline
SINGLE ENGINE
1. Locate and mark the vertical centerline on the transom, if known. This is also the crankshaft
vertical centerline.
