SECTION - 9 PREDELIVERY PREPARATION AND STORAGE
90-899883183 DECEMBER 2007 Page 7 / 24

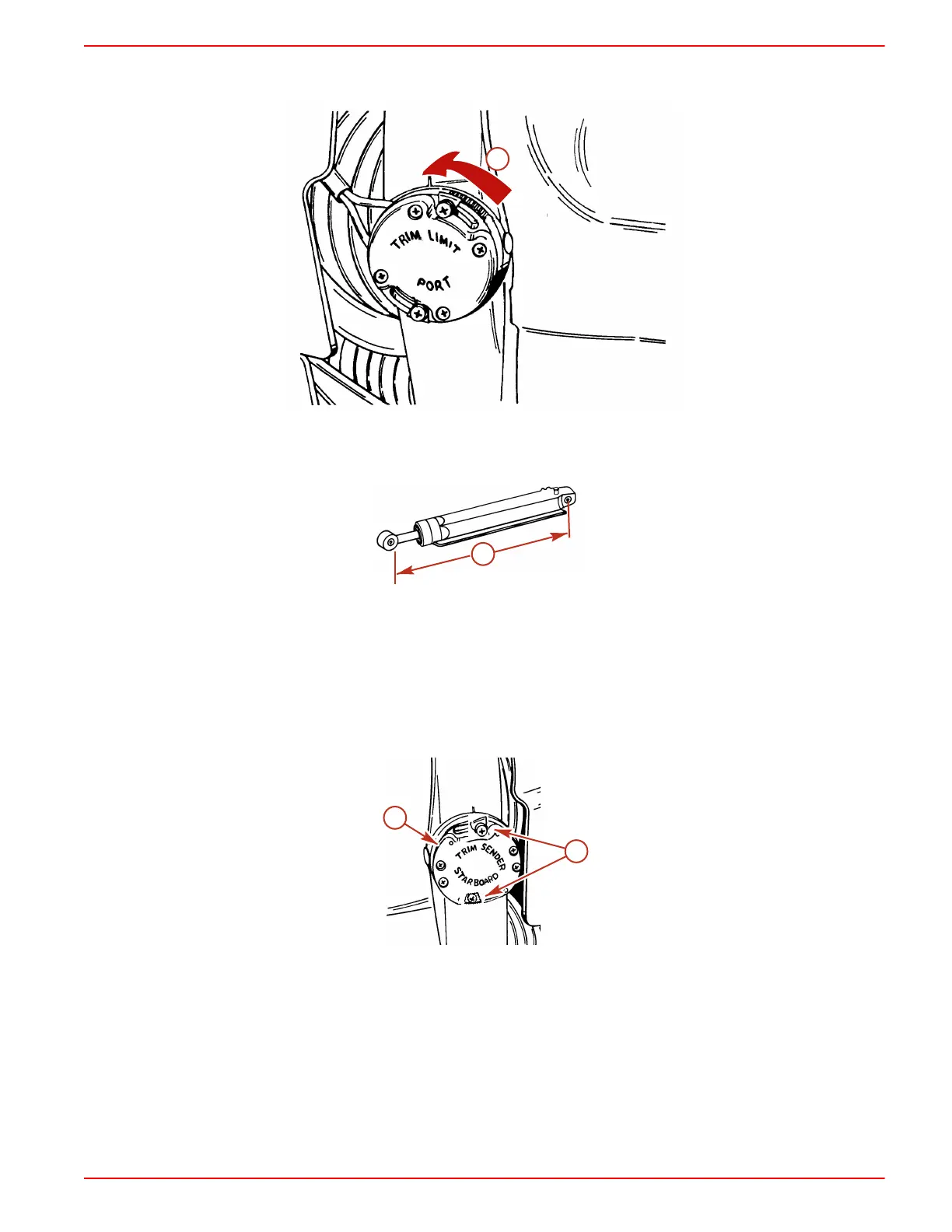

d. Slowly turn trim limit switch counterclockwise until trim cylinders extend to dimension
shown.
7880
a
Trim limit switch
a - Rotate Counterclockwise To Adjust
a
7881
Alpha trim cylinder extended
a - Maximum520 mm (20‑3/4 in.)
e. Retighten screws when adjustment is correct.
Trim position sender adjustment
ANALOG GAUGES
1. Loosen both trim position sender retaining screws.
a
b
7882
a - Retaining screws b - Trim position sender
IMPORTANT: Do not start the engine during this procedure.
2. Turn ignition key to RUN position.
3. Trim sterndrive unit to the full DOWN/IN position.
