SECTION - 6 DRIVE SYSTEM AND ENGINE INSTALLATION
90-899883183 DECEMBER 2007 Page 23 / 54
IMPORTANT: There is a fuse located at the starter solenoid. Do not remove this fuse.

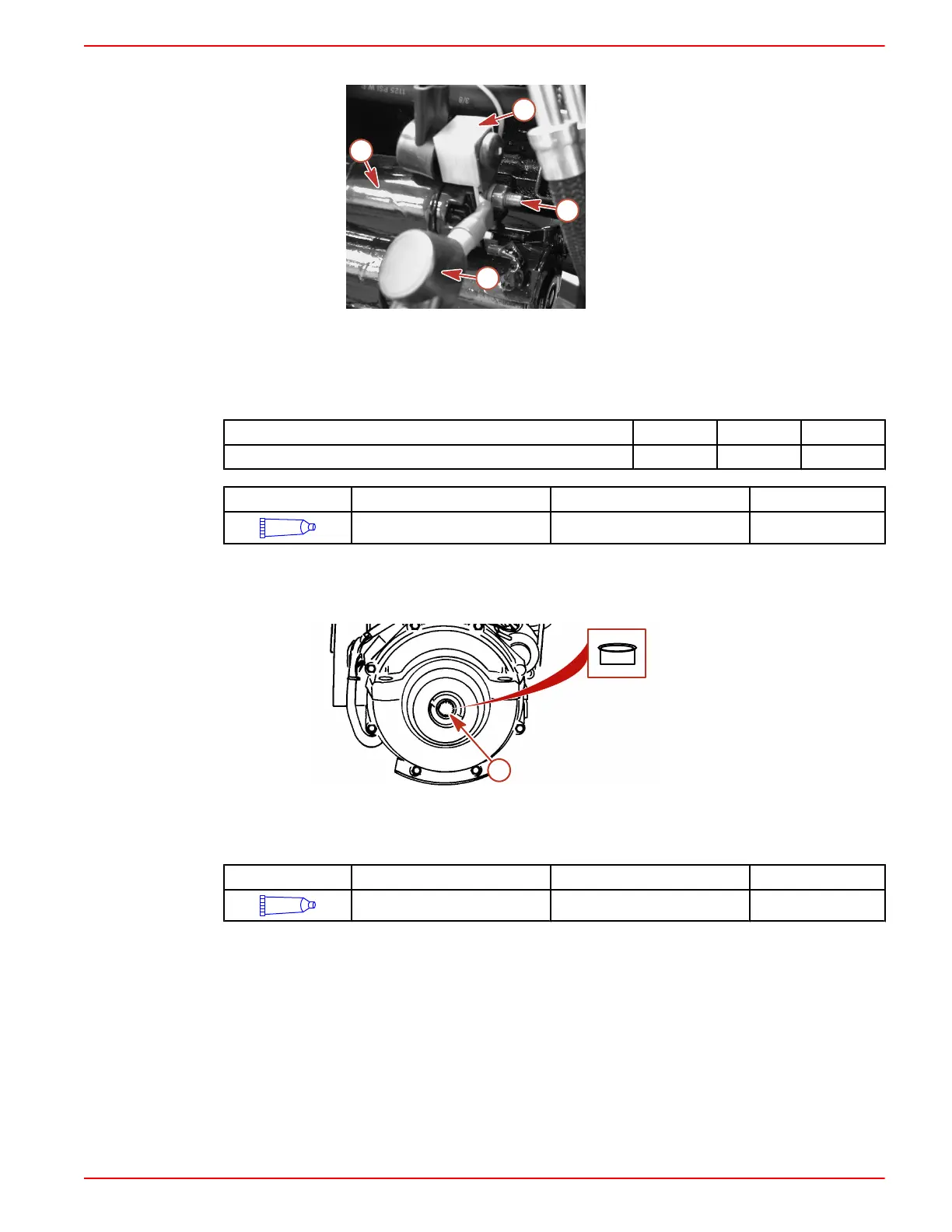

23832
a - Starter solenoid
b - 90 amp fuse ‑ do not remove
c - Positive (+) battery cable location
d - Protective rubber boot, pulled back for
clarity
d. After the battery cables are connected, apply a thin coat of sealant to the terminals.
Description Nm lb‑in. lb‑ft
Battery stud 11 97 –
Tube Ref No. Description Where Used Part No.
25
Liquid Neoprene Battery cable connections 92- 25711 3
e. Slide rubber boot over positive (+) terminal after making connection.
4. Drape the battery cables over top of engine to prevent interference during installation.
5. Remove the shipping plug from engine coupler and lubricate the coupler splines.
a
7767
Typical
a - Shipping plug
Tube Ref No. Description Where Used Part No.
91
Engine Coupler Spline Grease Coupler splines 92-802869A 1
Fuel Inlet Fitting
IMPORTANT: The following information is provided to ensure proper installation of brass fittings
or plugs installed into fuel pump or fuel filter base:
• Use Loctite 565 Pipe Sealant with Teflon on threads of fuel inlet fittings or plugs. DO NOT
USE TEFLON TAPE.
