SECTION - 7 STARTING AND ELECTRICAL
90-899883183 DECEMBER 2007 Page 19 / 22

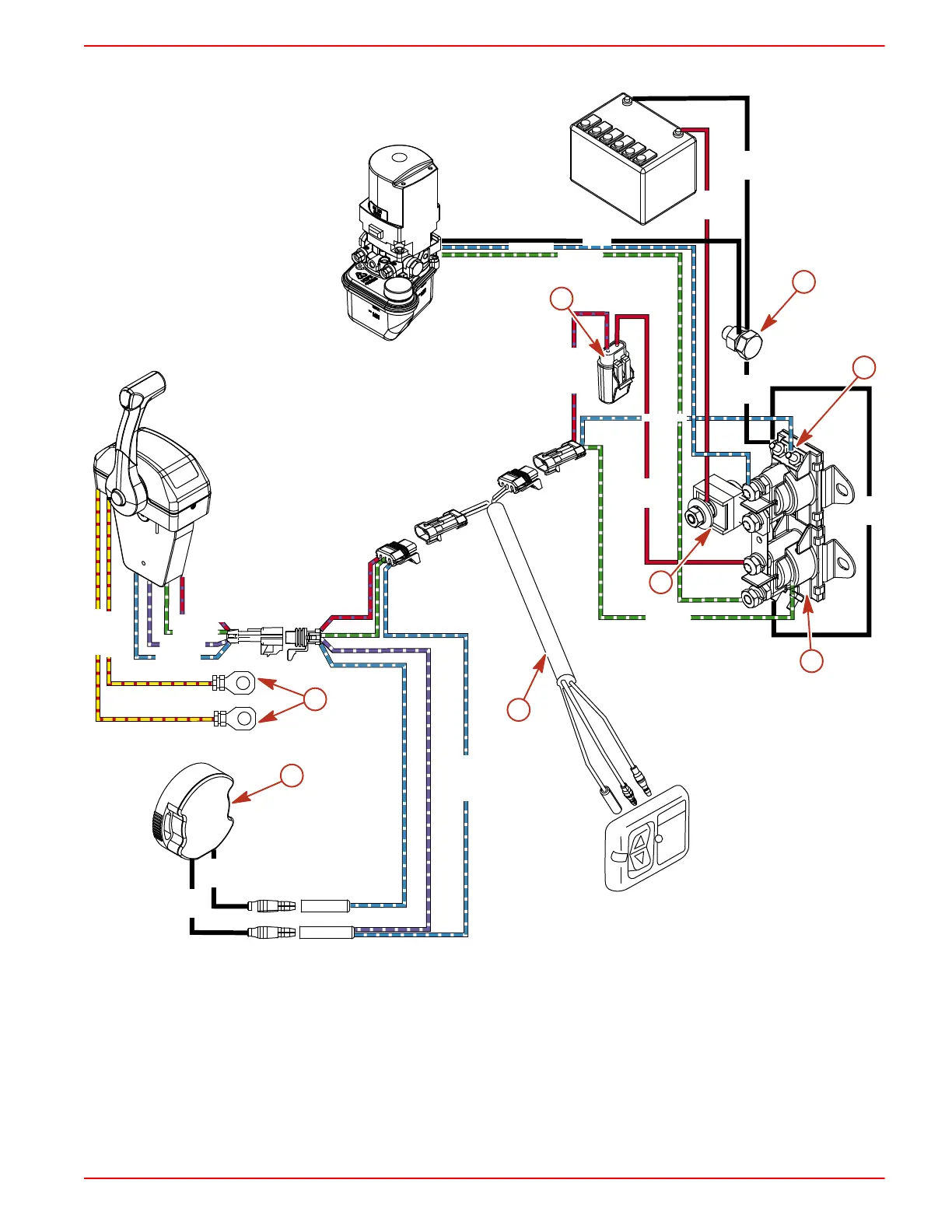

Power Trim System (Non‑DTS)
YEL/RED
YEL/RED
BLU/WHT
BLU/WHT
BLU/WHT
BLU/WHT
PPL/WHT
GRN/WHT
GRN/WHT
GRN/WHT
RED/PPL
RED/PPL
RED
RED
BLK
BLK
BLK
BLK
BLK
BLK
7866
c
b
a
f
h
g
d
e
a - 20 amp fuse
b - Ground bolt (floor mount)
c - Up solenoid
d - Down solenoid
e - 110‑amp fuse
f - Y‑harness (optional)
g - Neutral switch to instrument wiring
harness
h - Trim limit switch
