8. Attach E‑rings and plastic caps to end of anchor pin.
c
e
a
b
d
a
b
7844

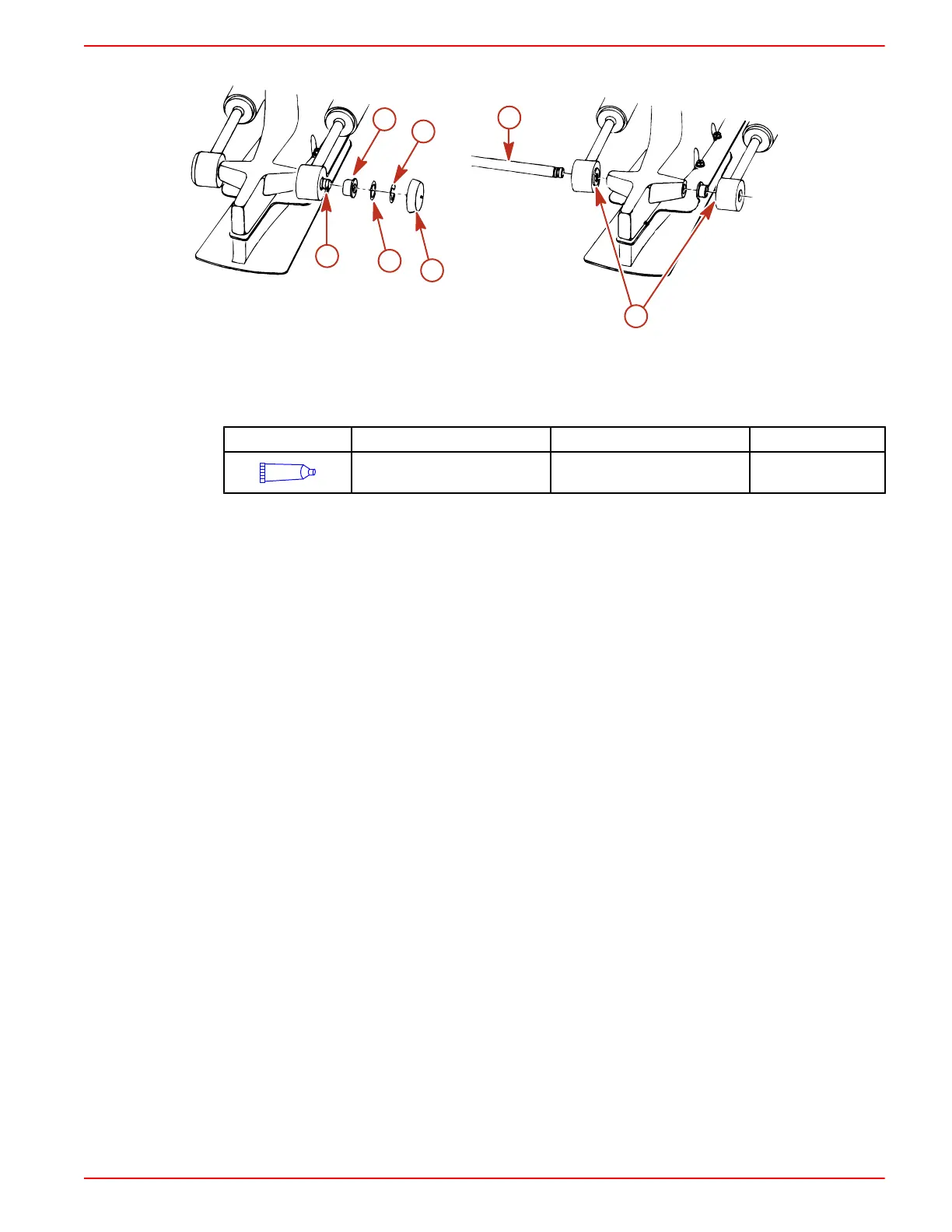

a - Rear anchor pin
b - Bushing (port and starboard) (4)
c - Flat washer (port and starboard) (2)
d - E‑ring (port and starboard) (2)
e - Plastic caps (port and starboard) (2)
Tube Ref No. Description Where Used Part No.
95
2-4-C Marine Lubricant with
Teflon
Trim cylinder 92-802859A 1
9. Reconnect trim hoses after air bleeding power trim cylinders and hoses following procedures
outlined in Mercury MerCruiser Service Manual 14.
