SECTION - 9 PREDELIVERY PREPARATION AND STORAGE
90-899883183 DECEMBER 2007 Page 5 / 24
5. Observe the oil level in the reservoir.
a
b
7876

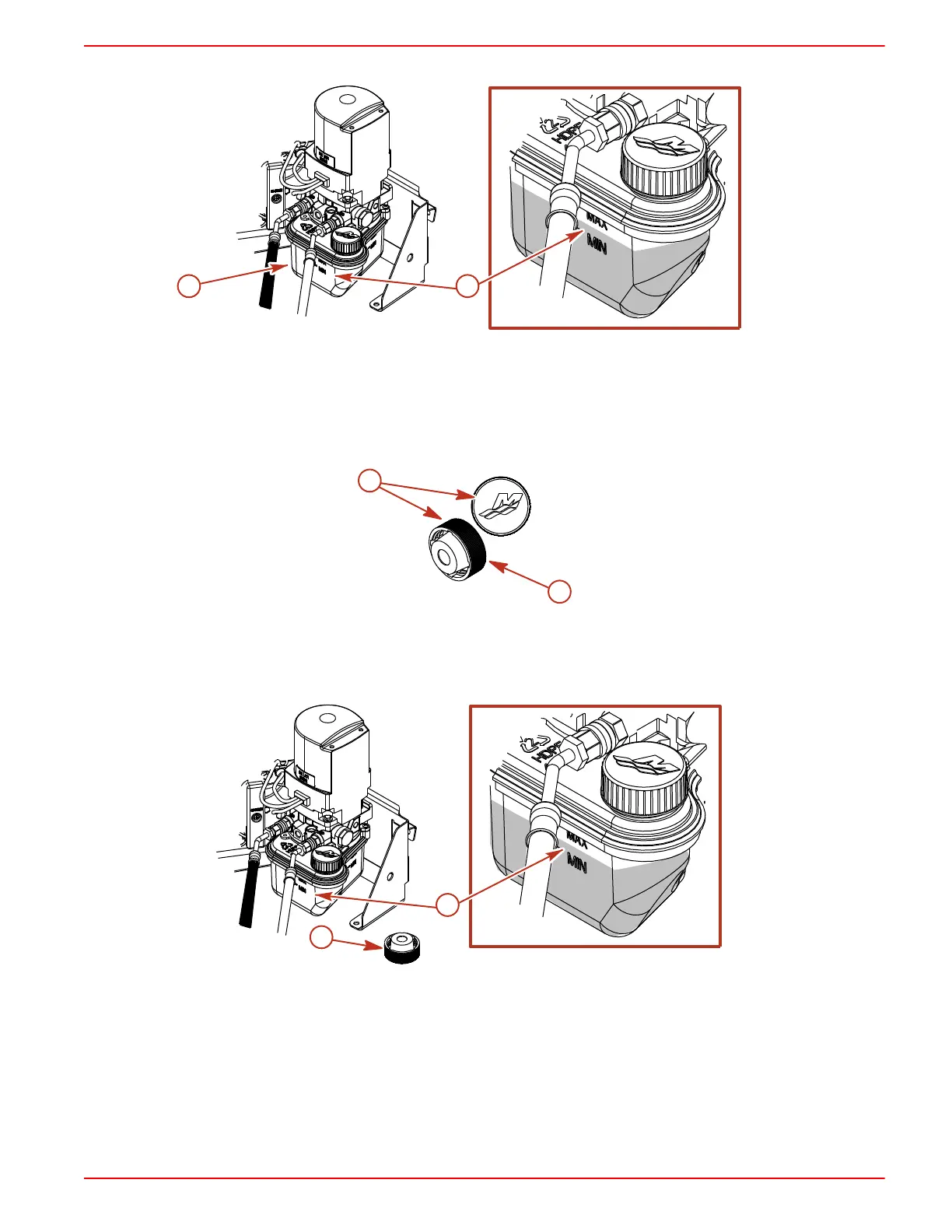

The oil level should be within the "MIN" and "MAX" lines on the reservoir.
a - Reservoir b - "MIN" and "MAX" lines
6. Unscrew and remove the fill cap assembly from the reservoir.
NOTE: The fill cap and cap vent are an assembled as a unit and should not be separated. Do not
remove or discard the cap vent.
b
a
7877
a - Fill cap assembly b - Cap plug
IMPORTANT: Use only the specified lubricant.
7. Add lubricant to bring the oil level to within the "MIN" and "MAX" lines on the reservoir.
b
7878
a
Typical
a - Fill cap assembly b - "MIN" and "MAX" lines
8. Install the fill cap assembly.
9. Check all trim line connection points for leaks. If fluid is visible at fittings, inspect the trim line
connection fittings.
