REMOTE CONTROLS SECTION - 8
Page 8 / 10 90-899883183 DECEMBER 2007

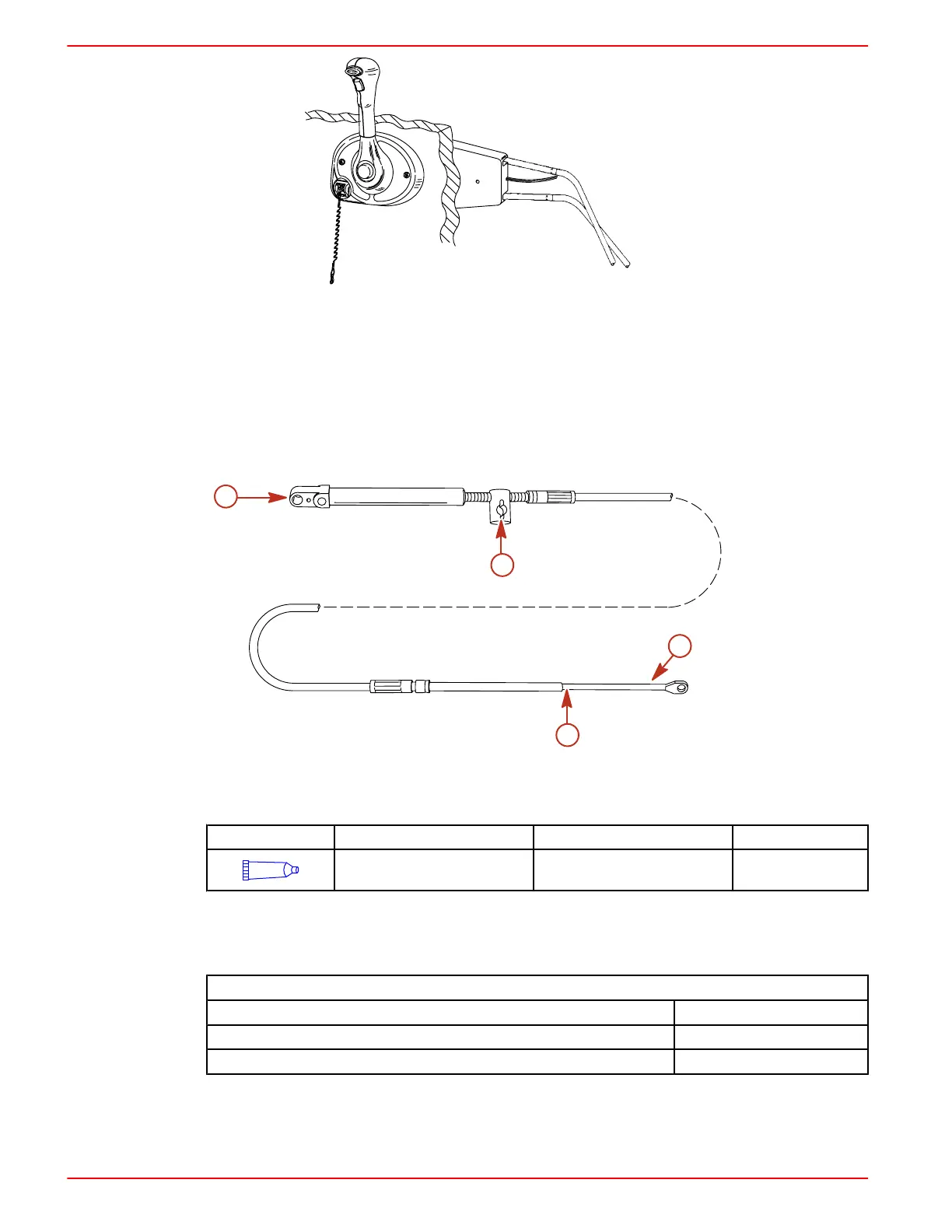

7872
Improper cable bend
2. Ensure that when the shift cable from the control box is led through the side gunnel of the hull,
it does not have any extremely sharp bends in it as this will cause stiff shifting.
IMPORTANT: Remote control cables MUST BE THE CORRECT LENGTH; sharp bends on
too‑short cables result in kinks and too‑long cables require unnecessary bends or loops. Both
conditions place extra stress on the cables.
IMPORTANT: Shift cable/throttle cable lubrication points use 2‑4‑C with Teflon.
3. Before installing the shift cable into the control box, extend the stainless rod eye end of the
cable and lubricate it. Move it back and forth to allow even distribution of the lubricant.
b
c
d
a
7874
a - Remote control end
b - Engine end
c - Adjusting barrel
d - Lubricating point
Tube Ref No. Description Where Used Part No.
95
2-4-C Marine Lubricant with
Teflon
Shift cable end 92-802859A 1
NOTE: Allow for clearance of cables directly behind panel mount remote control. The 4000 GEN
II Series Panel Mount Remote Control mounting surface must not exceed 25 mm (1 in.) thickness.
Cable radius at any one point must not be less than 305 mm (12 in.).
4000 GEN II Series Panel Mount Remote Control
Description Specification
Mounting surface maximum thickness 25 mm (1 in.)
Minimum cable bend radius at any point 305 mm (12 in.)
4. Do not strap or clamp the control cables to any other cables or rigid structure within 91.4 cm
(3 ft) of the control box.
