Mercury MerCruiser 3.0 MPI User Manual

SECTION - 6 DRIVE SYSTEM AND ENGINE INSTALLATION
90-899883183 DECEMBER 2007 Page 49 / 54

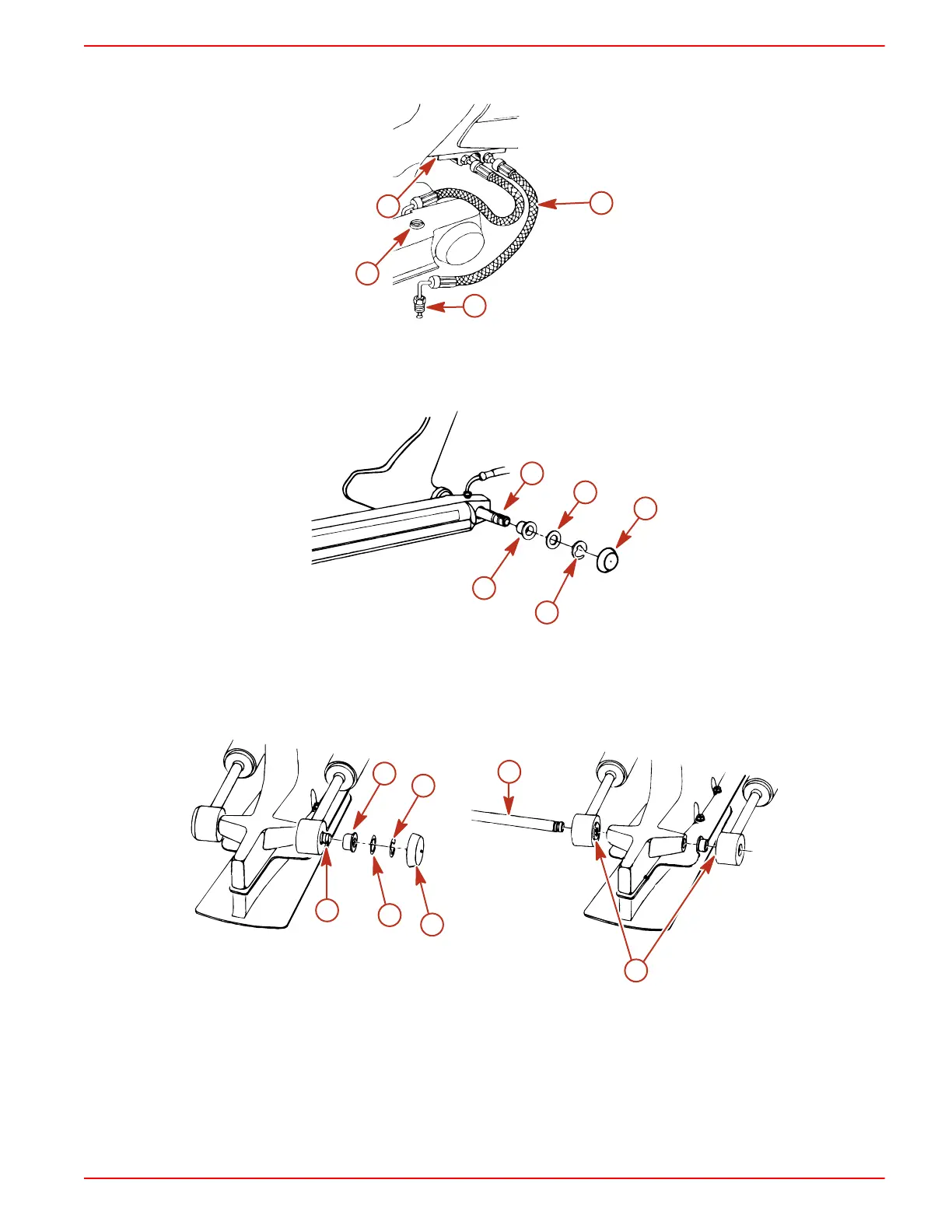

2. Disconnect "DOWN" trim hose from hydraulic connector on gimbal housing. Plug holes with
22‑38609 plug.
c
d
a
b
7843
a - "UP" hose
b - "UP" port on trim cylinder
c - "DOWN" hose
d - Hydraulic connector
3. Remove front power trim cylinder mounting hardware.
b
d
a
c
e
4827
a - Front anchor pin
b - Bushing (port and starboard) (4)
c - Flat washer (port and starboard) (2)
d - E‑ring (port and starboard) (2)
e - Plastic caps (port and starboard) (2)
4. Remove rear power trim cylinder mounting hardware.
c
e
a
b
d
a
b
7844
a - Rear anchor pin
b - Bushing (port and starboard) (4)
c - Flat washer (port and starboard) (2)
d - E‑ring (port and starboard) (2)
e - Plastic caps (port and starboard) (2)
