OIL INJECTION
Page 3C-8 90-855347R1 JANUARY 1999

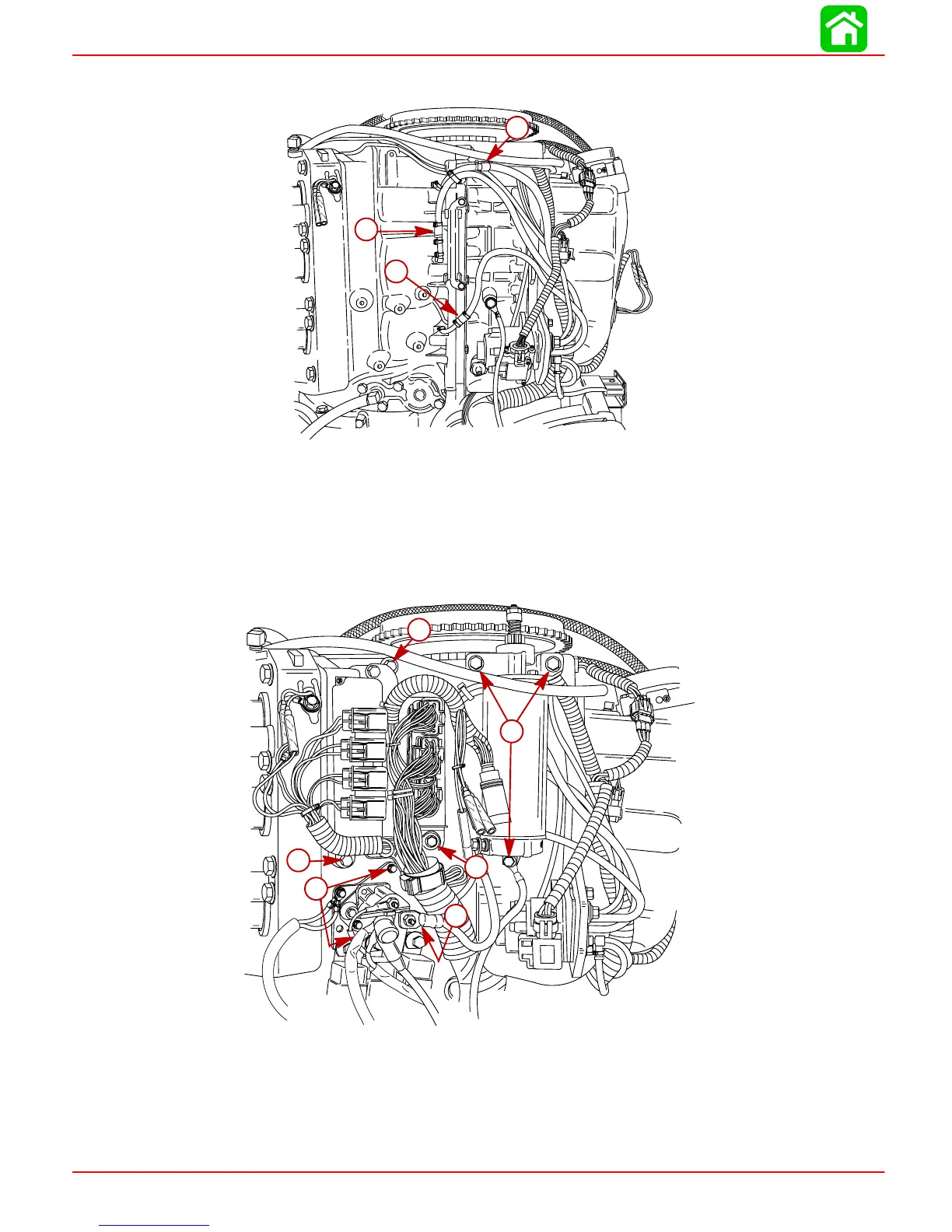

18. Install new check valve/hose assemblies on cylinders #1, #3 and #5. Secure all hose
connections with sta-straps.
57411
a
b
c
a-#1 Cylinder Check Valve/Hose Assembly
b-#3 Cylinder Check Valve/Hose Assembly
c-#5 Cylinder Check Valve/Hose Assembly
19. Reinstall starter motor. Torque bolts to 17.5 lb ft. (23.5 Nm).
20. Reinstall starter solenoid/trim relay plate. Torque bolts to 150 lb. in. (17 Nm).
21. Reinstall ECM. Torque bolts to 70 lb. in. (8 Nm).
57412
a
b
b
c
c
c
a-Torque bolts to 17.5 lb ft. (23.5 Nm)
b-Torque bolts to 150 lb. in. (17 Nm)
c-Torque bolts to 70 lb. in. (8 Nm)
22. Reinstall bottom cowling.
23. Reinstall flywheel cover.
