Mercury Optimax 115 User Manual

OUTBOARD MOTOR INSTALLATION
90-855347R1 JANUARY 1999 Page 1D-7

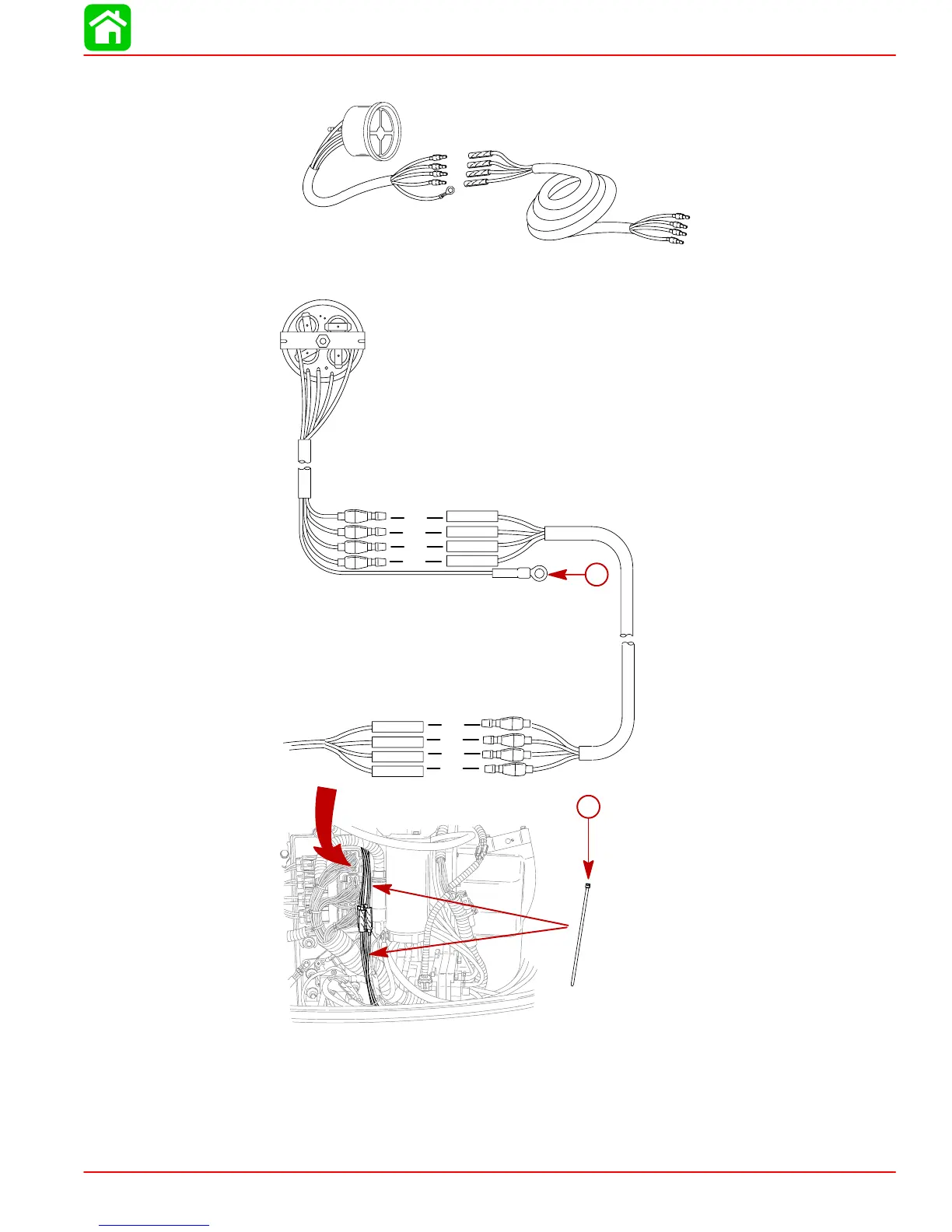

Warning Gauge Harness
Connect the harness extension to gauge and engine.
1
2
3
4
5
6
a
c
b
d
f
e
a
c
b
d
a-TAN/BLACK
b-TAN/WHITE
c-PINK/LT. BLUE to PINK/LT. BLUE
d-ORANGE
e-Connect PURPLE to 12 Volt Source or Adjacent Gauge
f-Sta-Straps – Fasten Wiring to Prevent Catching on Cowl

Mercury Optimax 115 Specifications

General

Fuel Induction System	2-stage Direct Fuel Injection (DFI)
Alternator Amp	60 amp / 756 watt
Steering	Remote
Cylinders	3
Starting	Electric
Displacement	1.5 L
Bore x Stroke	89 x 76 mm
Shaft Length	20" (508 mm)
Horsepower	115 HP
