CHARGING & STARTING SYSTEM
90-855347R1 JANUARY 1999 Page 2B-19
Stator Test

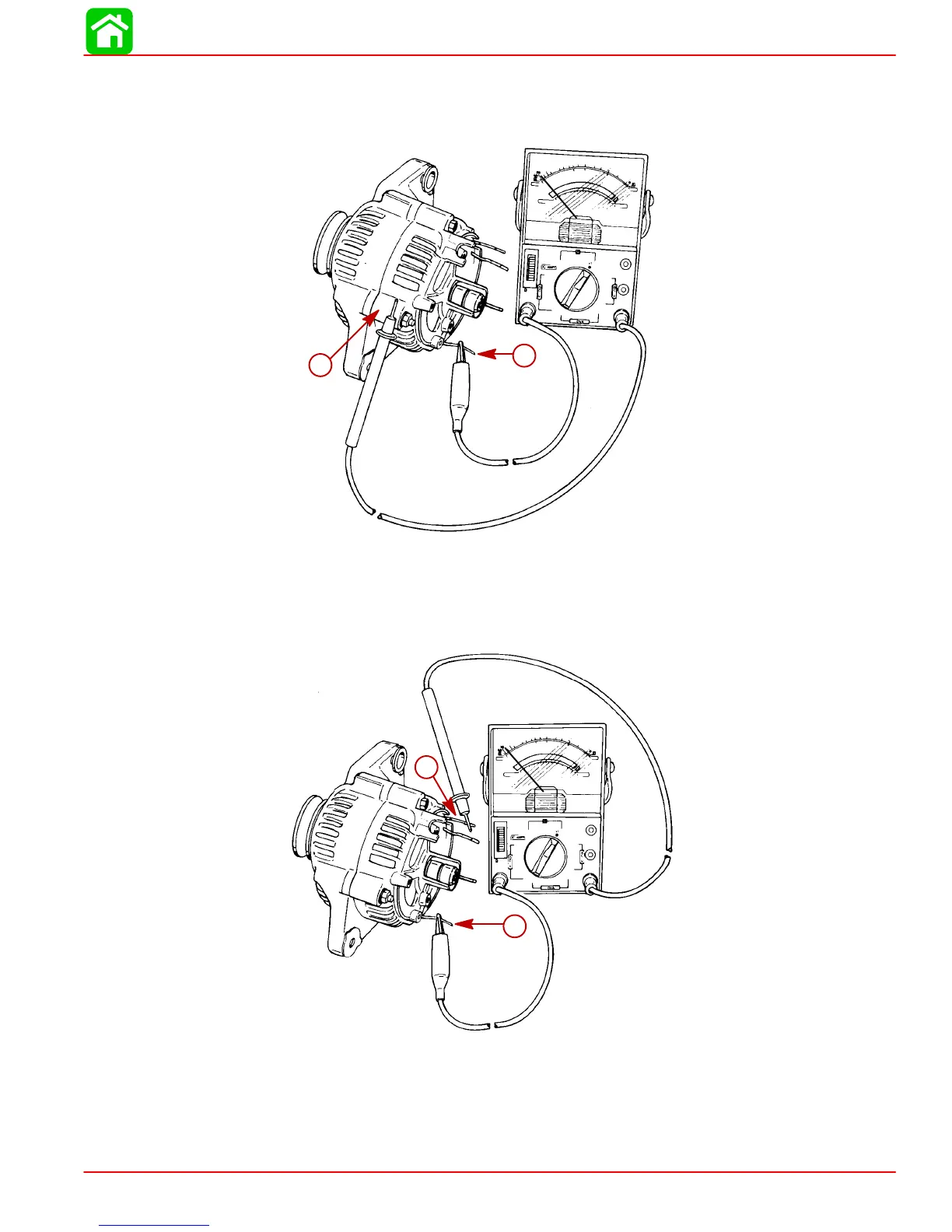

1. With rectifier removed, use an ohmmeter to check for a short circuit between each
stator lead and the stator frame. If CONTINUITY exists, stator is defective.
51682
b
a
a
b
a-Stator Leads
b-Frame
2. Inspect stator for open circuit. Using an ohmmeter, check for an open circuit between
each of the stator leads. If no continuity exists, stator is defective.
51682
a
a
a
a
a-Stator Leads
