GENERAL INFORMATION
90-855347R1 JANUARY 1999 Page 1C-11

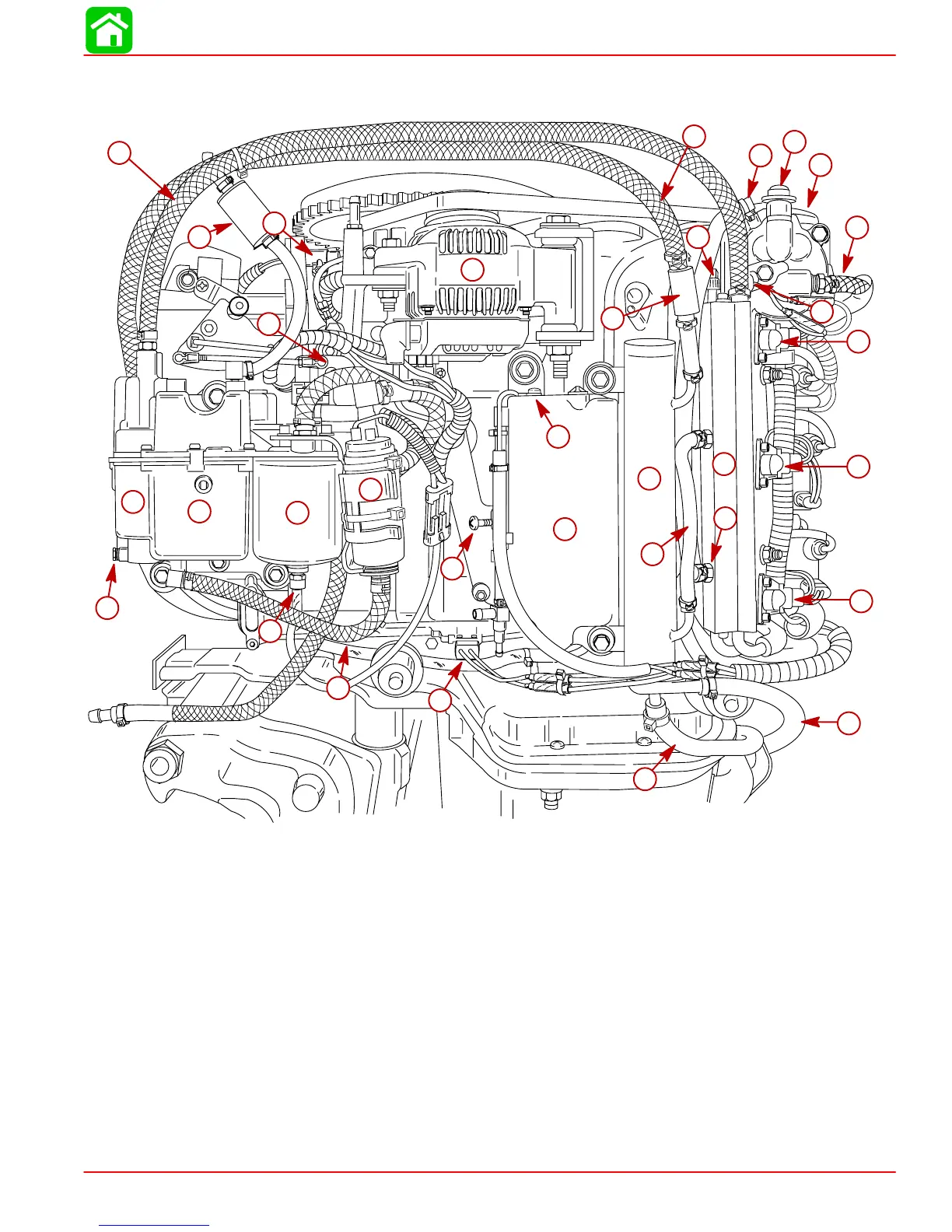

Model 135/150 DFI Powerhead Port View
57312
2
3
1
15
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
1-High Pressure Electric Fuel Pump
2-Fuel Out (90 psi)
3-Crank Position Sensor
4-Fuel Return from Fuel Cooler
5-Water Out (tell-tale) from Air Compressor
6-Air Restrictor/Air Inlet to Air Compressor
7-Air Compressor
8-Air Pressure Out from Air Compressor
9-Temperature Sensor (Air Compressor)
10 - #2 Fuel Injector
11 - #4 Fuel Injector
12 - #6 Fuel Injector
13 - Excess Air to Adaptor Plate
14 - Water Inlet to Fuel Cooler from Adaptor Plate
15 - Port Fuel Rail
16 - Water Out to Poppet Valve
17 - Excess Fuel Return to Fuel Cooler
18 - Air Pressure Test Port
19 - 40 psi Check Valve
20 - Fuel Cooler
21 - Oil Reservoir
22 - Neutral Shift Interrupt Switch
23 - 60 Ampere Alternator
24 - Throttle Position Sensor (2 each)
25 - Low Pressure Electric Fuel Pump
26 - Fuel/Water Separator
27 - Fuel/Water Sensor
28 - Low Pressure Fuel Pump Inlet Hose
29 - Vapor Separator
30 - Vapor Separator Drain Plug
31 - Vent Canister
32 - Idle Stop Screw
