CHARGING & STARTING SYSTEM
Page 2B-32 90-855347R1 JANUARY 1999
Starter Reassembly

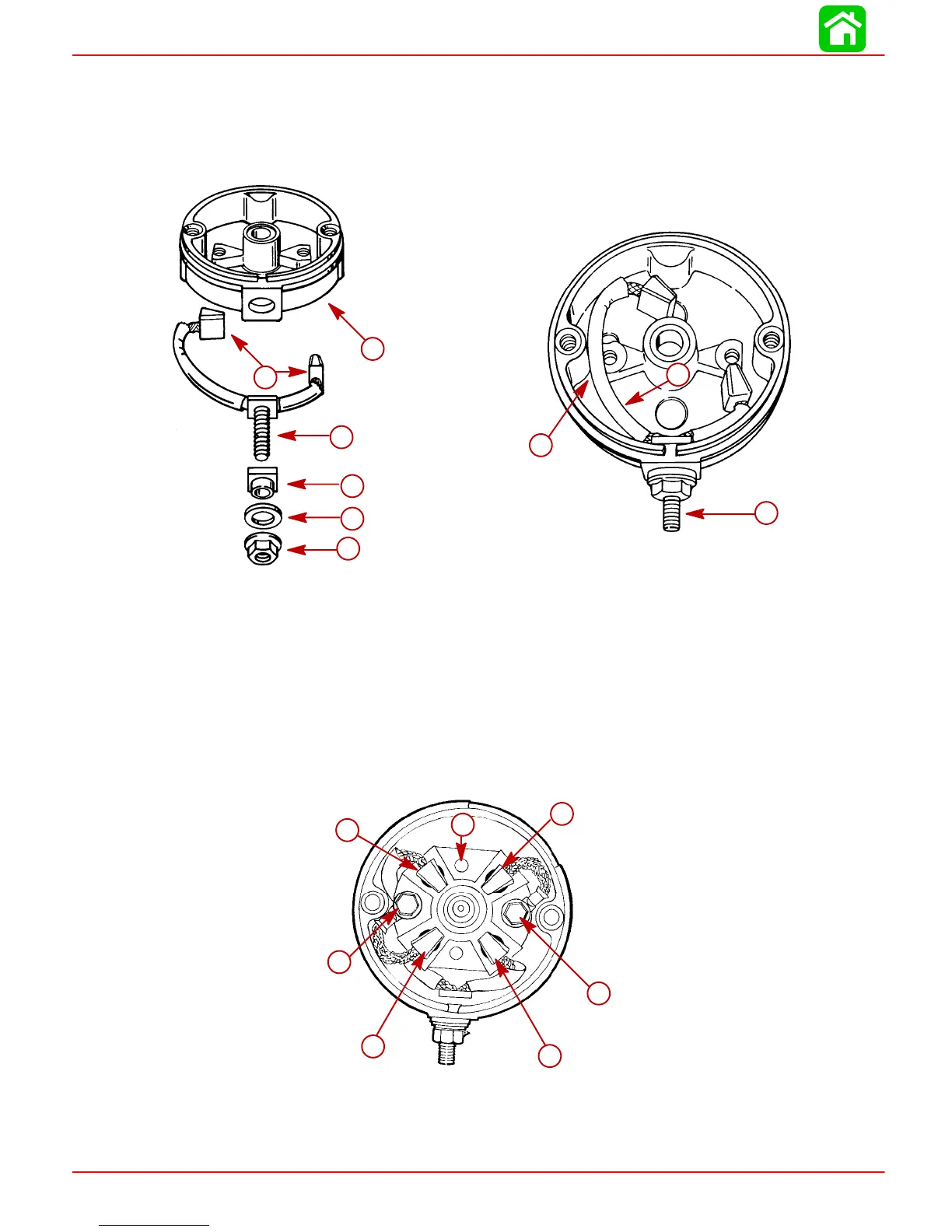

1. If brushes were removed, replace as follows:
a. Install POSITIVE brushes (along with POSITIVE terminal) into commutator end
cap.
52131
a
b
c
d
e
f
c
a
b
51713
g
h
i
a
b
c
d
e
f
a-End Cap
b-POSITIVE Brushes
c-POSITIVE Terminal
d-Insulating Block
e-Insulating Washer
f-Hex Nut
g-POSITIVE (+) Terminal
h-Long Brush Lead
i-Push Lead into Slot
b. Install NEGATIVE brushes (along with brush holder).
11656
a
c
b
d
a
b
d
a
b
c
a
b
d
d
a-POSITIVE (+) Brushes
b-NEGATIVE (–) Brushes
c-Brush Holder
d-Bolts (Fasten NEGATIVE Brushes and Holder)
To Next Page
