Mercury Optimax 115 User Manual

DIRECT FUEL INJECTION
90-855347R1 JANUARY 1999 Page 3B-25

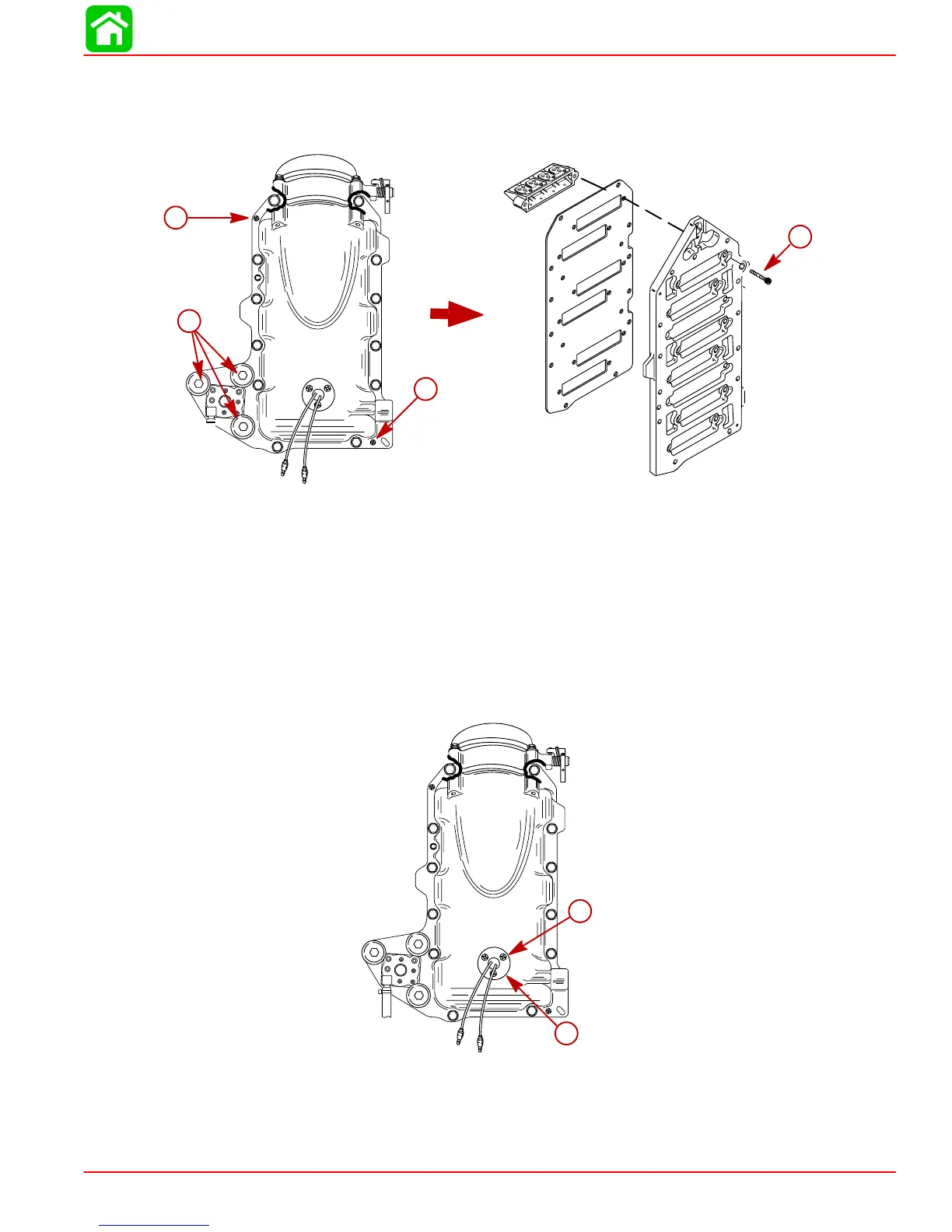

Reed Block Assembly Removal
1. Remove 2 screws securing air plenum to reed plate assembly.
2. Remove 3 bolts securing oil pump adaptor plate to air plenum assembly.
56144
b
a
a
a
a
b
a
a
a-Screws (2 each)
b-Bolts (3 each)
Reed Block Assembly Installation
1. Secure oil pump adaptor plate to air plenum with 3 bolts. Torque bolts to 16 lb. ft. (22.0
Nm).
2. Secure air plenum to reed plate with 2 screws. Drive screws tight.
Air Temperature Sensor Removal
Remove 3 screws securing sensor and remove sensor.
56144
a
b
a
b
a-Screws
b-Sensor

Mercury Optimax 115 Specifications

General

Fuel Induction System	2-stage Direct Fuel Injection (DFI)
Alternator Amp	60 amp / 756 watt
Steering	Remote
Cylinders	3
Starting	Electric
Displacement	1.5 L
Bore x Stroke	89 x 76 mm
Shaft Length	20" (508 mm)
Horsepower	115 HP
