POWER TRIM
Page 5B-10 90-855347R1 JANUARY 1999
Anode Plate
Anode plate is a self-sacrificing alloy plate that is consumed gradually by corrosion while
providing protection to the midsection and power trim from galvanic corrosion. Replace
anode plate when it is 50% consumed.

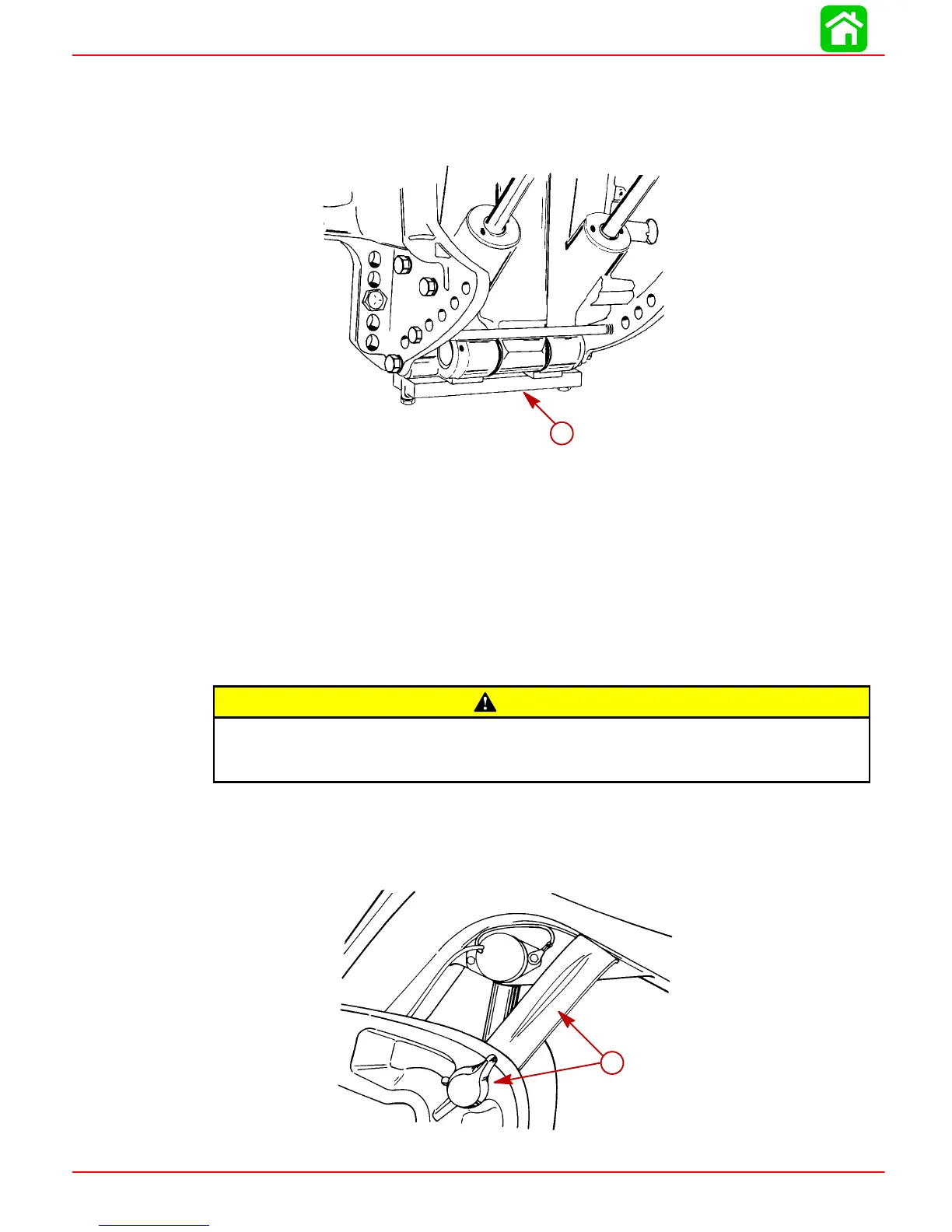

27932
a
a-Anode Plate
IMPORTANT: Do not paint or place protective coating on anode plate, or corrosion
protection function will be lost.
Trim Indicator Gauge
A Quicksilver Trim Indicator Gauge accessory kit is available for the power trim sender
(if not previously installed).
Check, Fill and Purge - Power Trim System
TO CHECK:
CAUTION
Tilt outboard to full “Up” position and engage tilt lock lever before checking fluid
level. System is pressurized. Extend trim and tilt rams fully to depressurize sys-
tem.
Remove fill plug and O-ring. System is full when oil level is present at filler hole. Tighten
fill plug securely.
NOTE: Automatic Transmission Fluid (ATF) Type F, FA, Dexron II or Dexron III may be
used.
51368
a
a-Tilt Lock Lever
