OUTBOARD MOTOR INSTALLATION
Page 1D-4 90-855347R1 JANUARY 1999

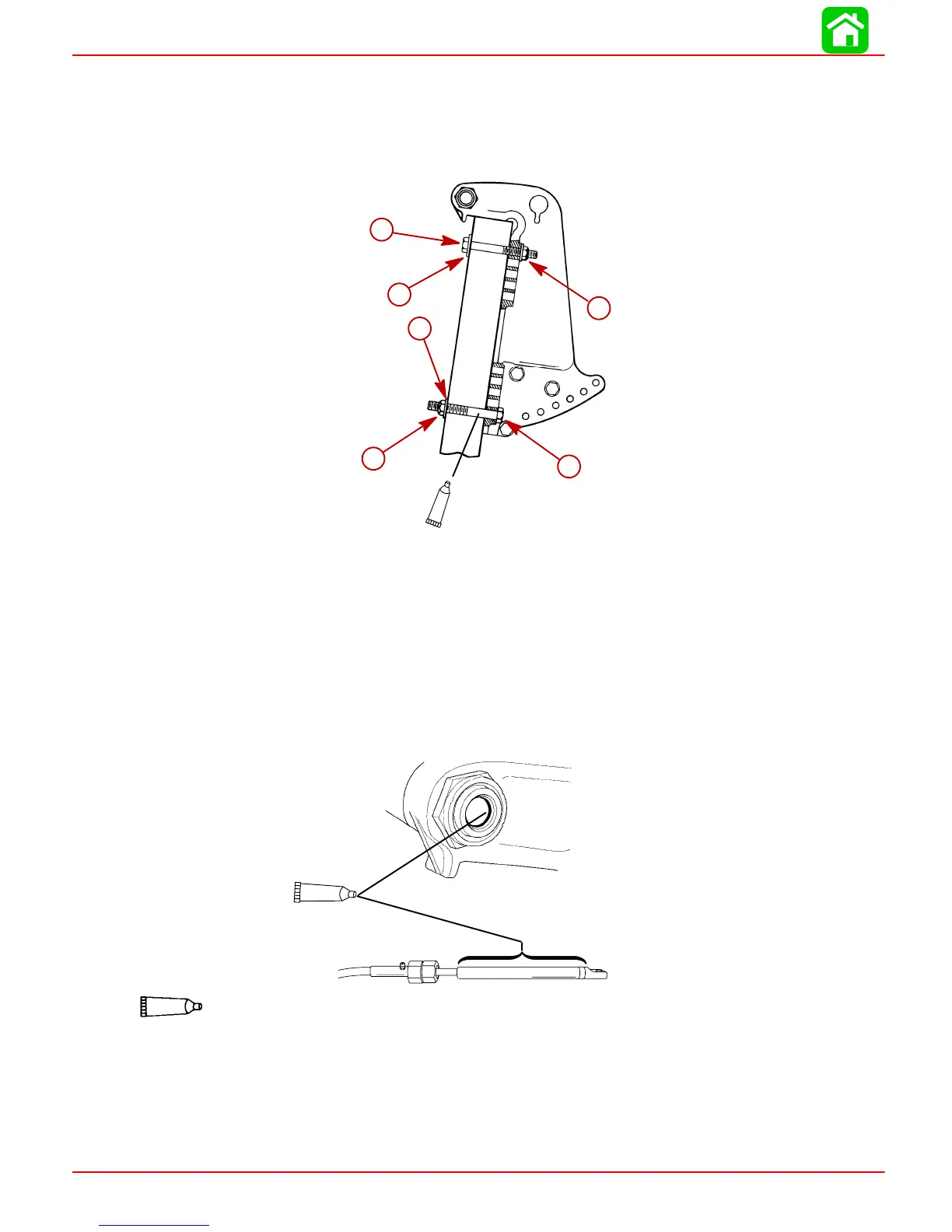

Securing Outboard To Boat Transom
1. Refer to “Determining Recommended Outboard Motor Mounting Height”, preceding
and Install outboard to the nearest recommended mounting height.
2. Fasten outboard with provided mounting hardware shown.
d
c
b
a
b
c
a
a-1/2 In. Diameter Bolts (4)
b-Flat Washers (4)
c-Locknuts (4)
d-Marine Sealer - Apply to Shanks of Bolts, Not Threads
Steering Cable
STARBOARD SIDE ROUTED CABLE
1. Lubricate O-ring seal and entire cable end.
95
95
2-4-C With Teflon (92-825407A12)
To Next Page
