CHARGING & STARTING SYSTEM
Page 2B-22 90-855347R1 JANUARY 1999

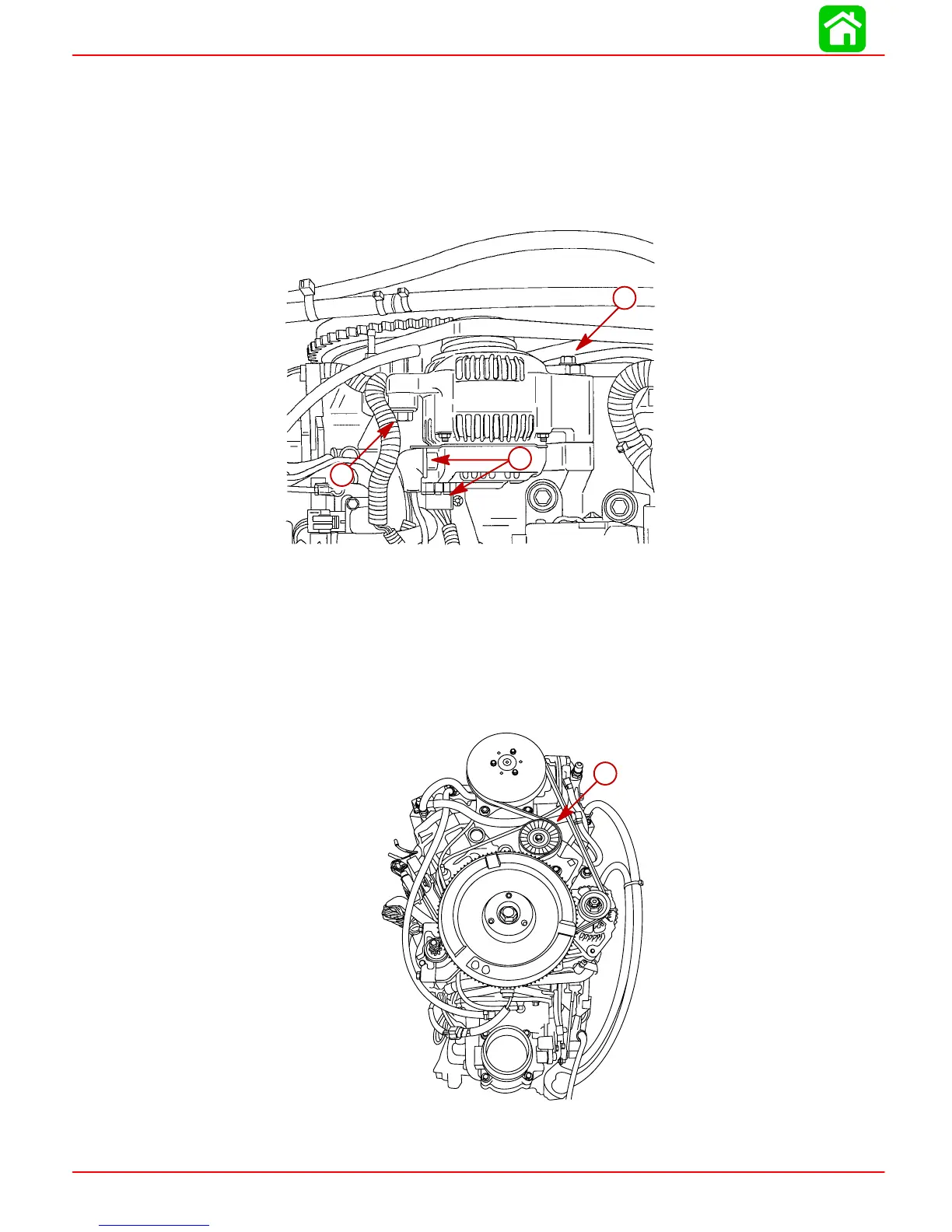

Installation
1. Secure alternator to engine block with attaching bolts. Torque top bolt to 40 lb-ft (54
Nm). Torque bottom bolt to 35 lb-ft (47.5 Nm).
2. Install alternator belt in V-groove of flywheel and alternator pulley.
3. Reconnect electrical harness to alternator.
a
56117
b
c
a
b
c
a-Top Bolt [Torque to 40 lb-ft (54 Nm)]
b-Bottom Bolt [Torque to 35 lb-ft. (47.5 Nm)]
c-Harnesses
Alternator Belt Tension Adjustment
Correct alternator belt tension is maintained by a belt tensioner assembly.
a
56142
a
a-Belt Tensioner Assembly
