POWER TRIM
Page 5B-14 90-855347R1 JANUARY 1999

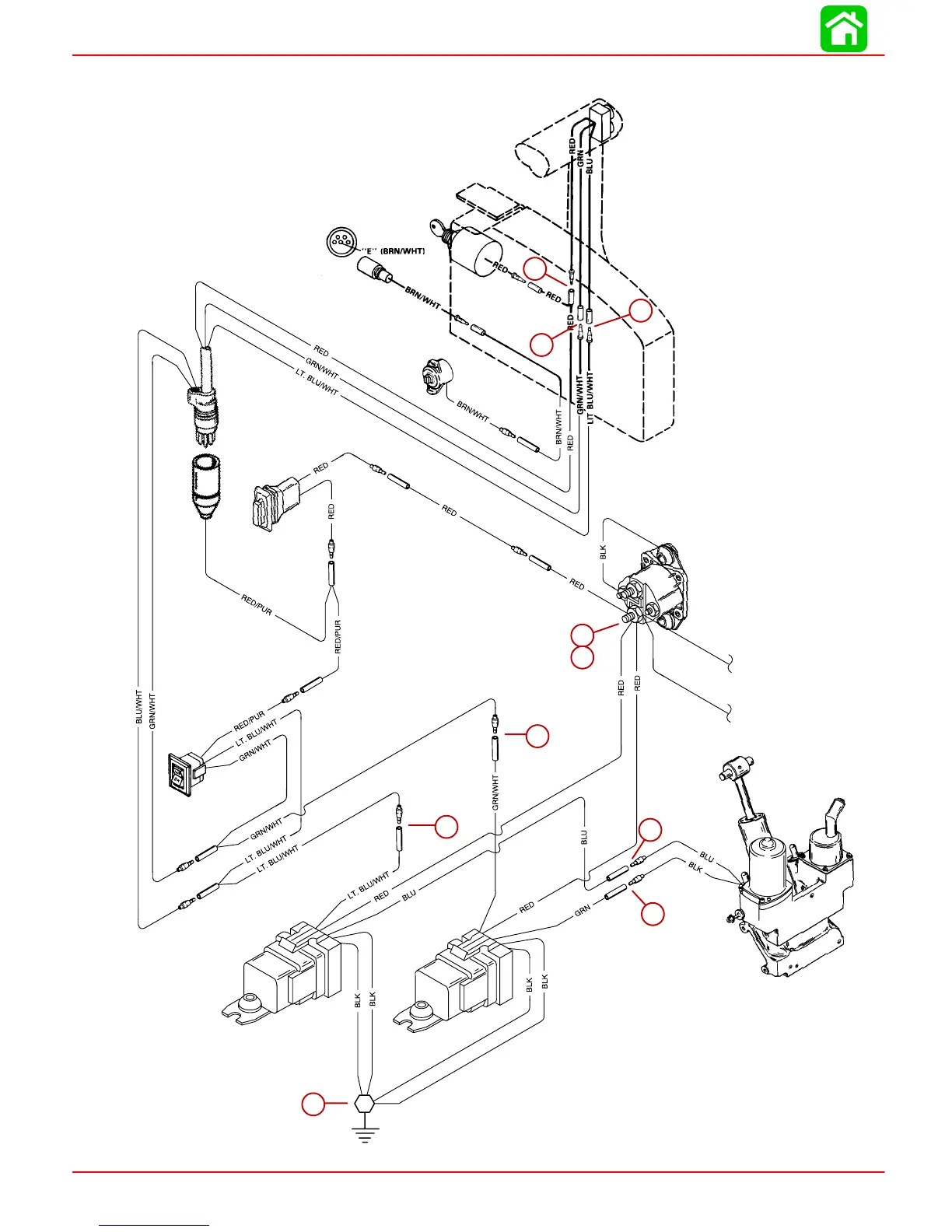

Power Trim System with Relays and 2 Wire Trim Motor
BLK = Black
BLU = Blue
GRN = Green
RED = Red
WHT = White
DOWN Relay
UP Relay
53794
1
2
3
4
5
6
7
8
9
10
