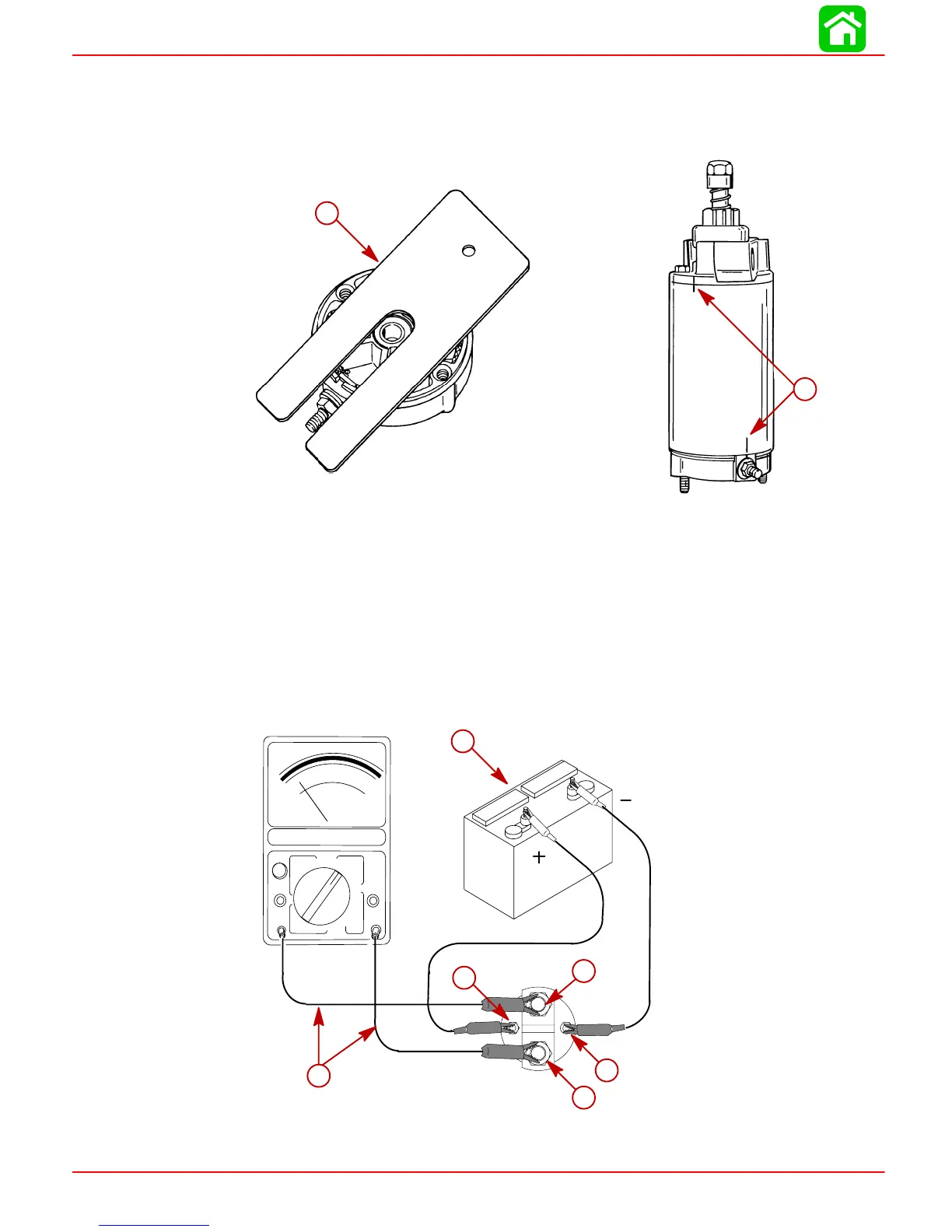

8. Place springs and brushes into brush holder and hold in place with brush retainer tool.
9. Install commutator end cap onto starter frame. Align marks on frame with alignment
marks on end caps. Remove brush retainer tool. Install through bolts and torque to
70 lb-in (8 Nm).
52130
a
51713
a
b
a
a-Brush Retainer Tool
b-Alignment Marks
Starter Solenoid Test
1. Disconnect all wires from solenoid.
2. Connect ohmmeter (R x1 scale) between terminals 1 and 2.
3. Connect a 12-volt power supply between terminals 3 and 4. Solenoid should click and
meter should read 0 ohms (full continuity).
4. If meter does not read 0 ohms (full continuity), replace solenoid.
DCV
ACV
DVA
a
b
1
2
3
4
a
b
1
2
3
4
a-12-VOLT Supply
b-VOA Leads
