POWERHEAD
Page 4A-4 90-855347R1 JANUARY 1999

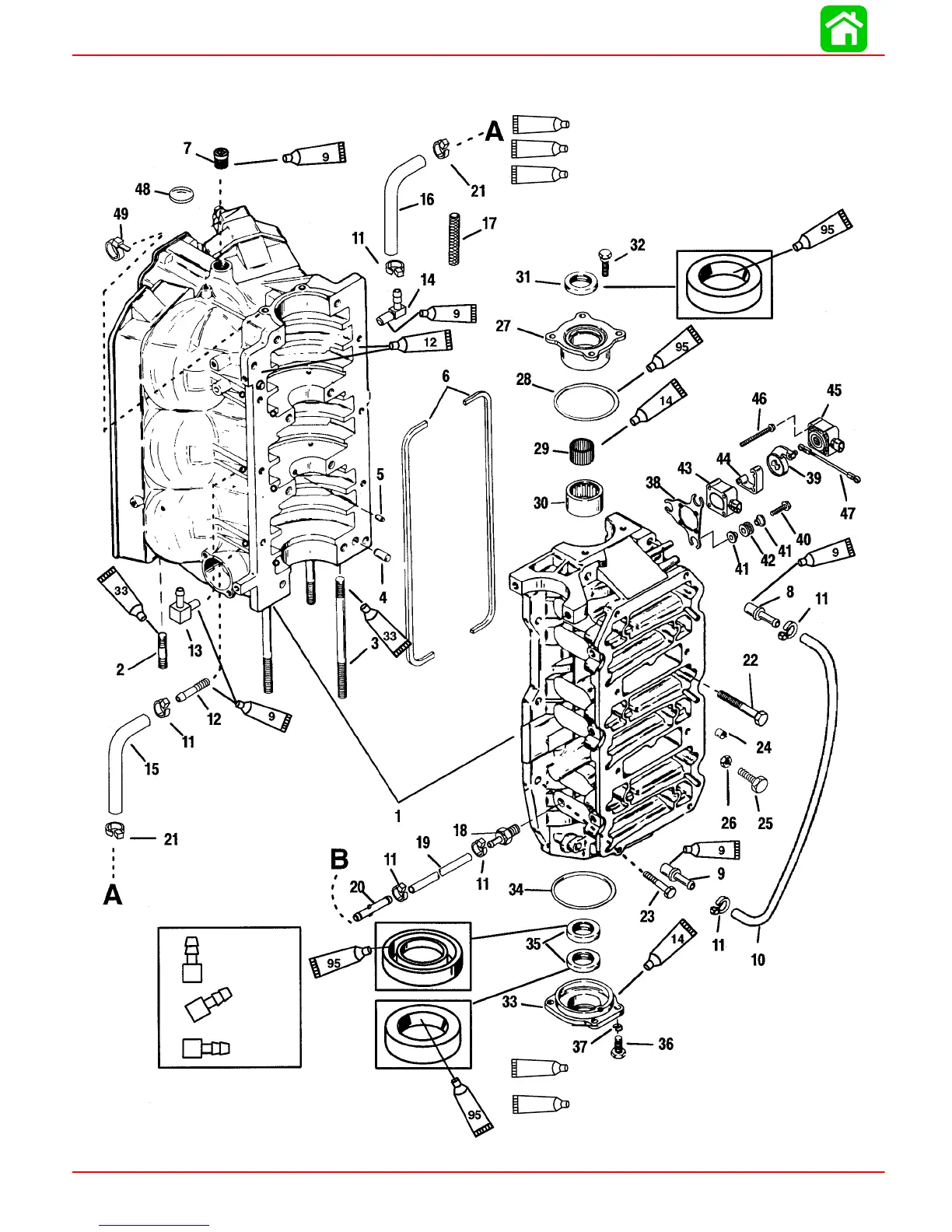

Cylinder Block and End Caps
TOP OF BLOCK
CRANK
BOTTOM OF BLOCK
HEAD
PORT OIL FITTING
ORIENTATION
2 o’clock
Loctite PST Pipe Sealant (92-809822)
9
12
Loctite “514” Master Gasket (92-12564-2)
14
2 Cycle Outboard Oil (92-13249A24)
Loctite “RCA/680” Retaining Compound
(92-809833)
33
95
2-4-C w/Teflon (92-825407A12)
A = TO AIR HANDLER
B = TO ON BOARD OIL TANK
To Next Page
