POWERHEAD
Page 4A-14 90-855347R1 JANUARY 1999

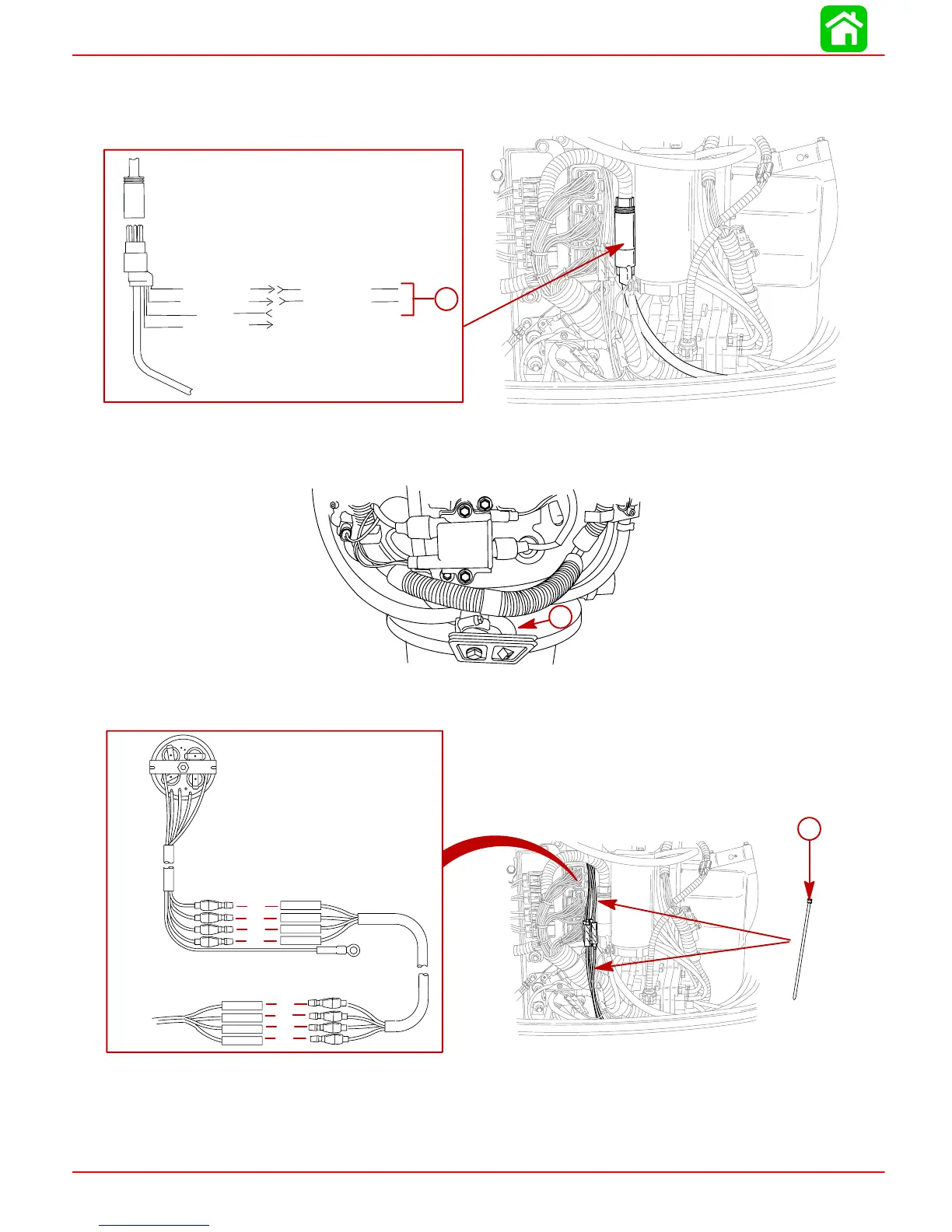

5. Disconnect remote oil tank hose connector.
6. Disconnect remote control harness from powerhead harness connector and wires as
shown.
GRN/WHT
BLU/WHT
BRN/WHT
TAN
BLU/WHT
GRN/WHT
a
a-Power Trim Connections
7. Remove sta-strap which secures tell-tale hose to fitting on lower cowl and remove
hose from fitting.
56141
a
a-Tell-tale Hose
8. Disconnect warning gauge harness.
1
2
3
4
5
6
a
c
b
d
a
c
b
d
e
a-TAN/BLACK
b-TAN/WHITE
c-PINK/LT. BLUE to PINK/LT. BLUE
d-ORANGE
e-Sta-Straps
