POWERHEAD
Page 4A-16 90-855347R1 JANUARY 1999

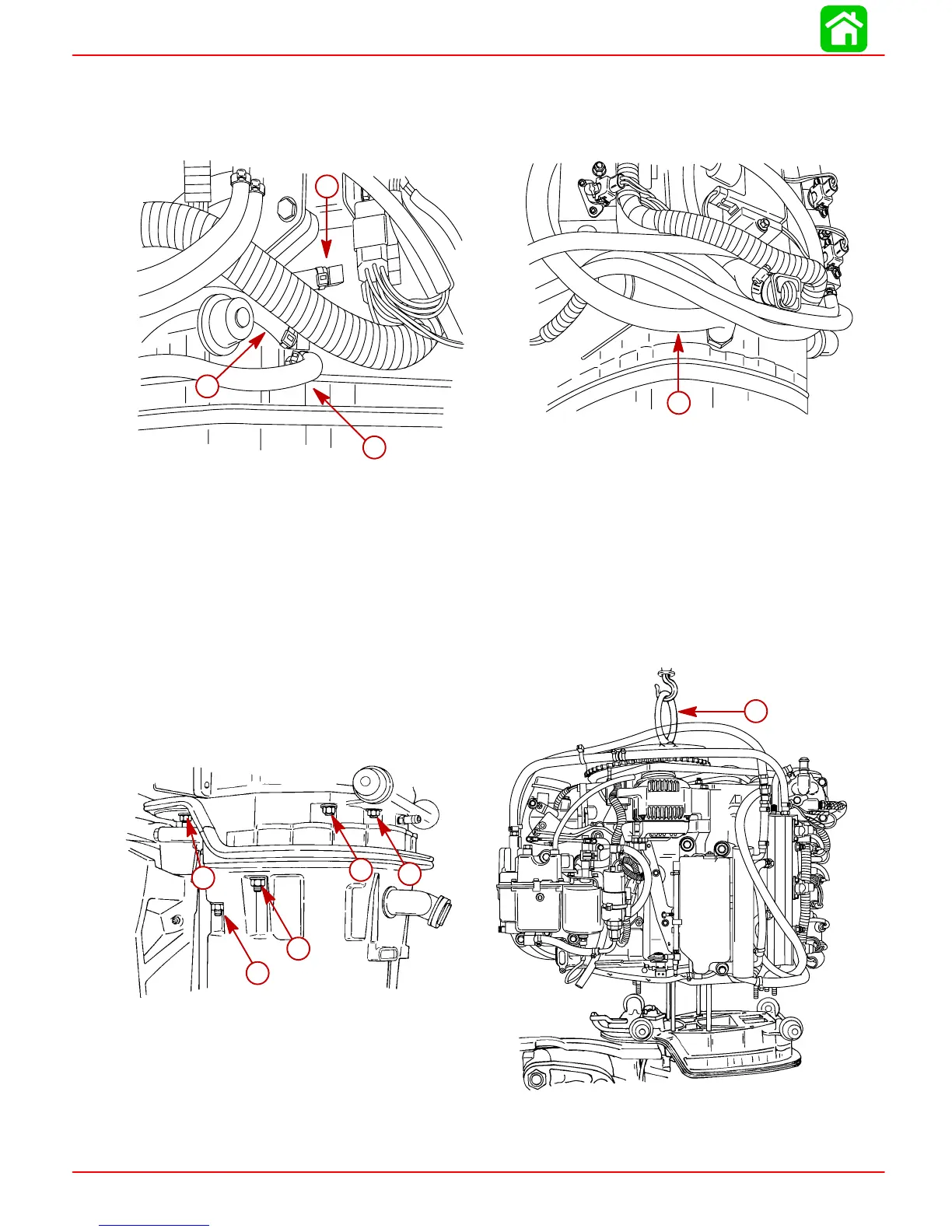

15. Remove fuel cooler inlet and outlet water hoses from fittings on exhaust adaptor plate
and poppet valve cover. Remove excess air hose (from port fuel rail) from fitting on
exhaust adaptor plate.
16. Remove thermostat cover hose from exhaust adaptor plate.
56158
56159
d
a
b
c
a-Fuel Cooler Outlet Water Hose
b-Fuel Cooler Inlet Water Hose
c-Air Hose
d-Thermostat Cover Hose
17. Remove 10 nuts and washers (five each side) from powerhead base.
18. Remove plastic cap from center of flywheel and install LIFTING EYE (91-90455) into
flywheel at least five full turns. Using a hoist, lift powerhead assembly from driveshaft
housing.
56162
51846
a
a
a
a
b
a
a-Nuts and Washers (5 Each Side)
b-Lifting Eye
