POWERHEAD
90-855347R1 JANUARY 1999 Page 4A-25

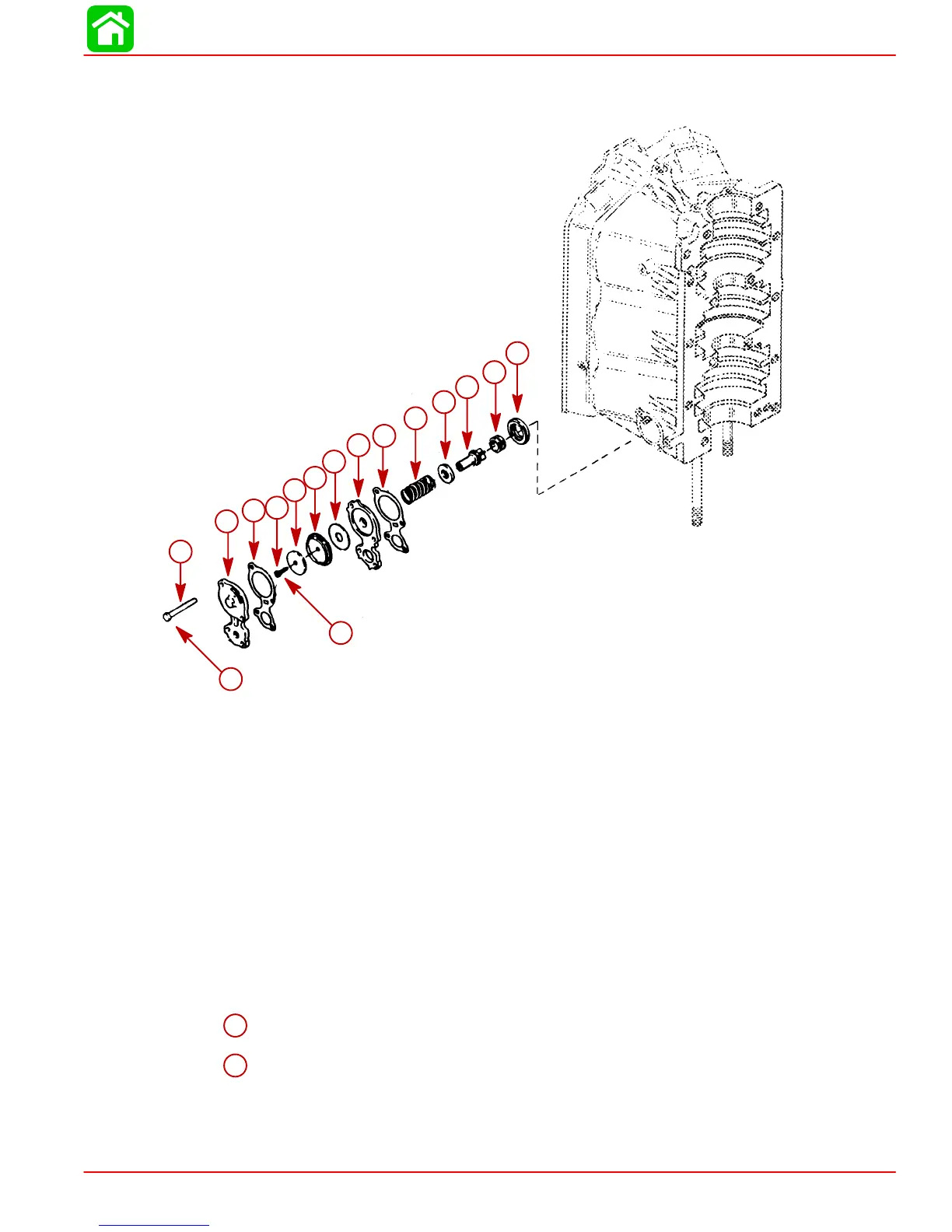

Water Pressure Relief Valve Components
1. If necessary, remove water pressure relief valve components as shown.
a
b
1
2
3
4
5
6
7
8
9
10
11
12
13
3
50803
1-Cover
2-Bolt
3-Gasket
4-Relief Valve Plate
5-Diaphragm
6-Water Deflector
7-Washer
8-Screw
9-Spring
10 - Poppet Valve
11 - Grommet
12 - Carrier
13 - Washer
Torque Specifications
a
150 lb. in. (17 N·m)
b
25 lb. in. (3 N·m)

Mercury Optimax 115 Specifications

General

Fuel Induction System	2-stage Direct Fuel Injection (DFI)
Alternator Amp	60 amp / 756 watt
Steering	Remote
Cylinders	3
Starting	Electric
Displacement	1.5 L
Bore x Stroke	89 x 76 mm
Shaft Length	20" (508 mm)
Horsepower	115 HP
