RIGHT HAND NON-RATCHETING
Page 6A-28 90-855347R1 JANUARY 1999
5. Press ball bearing onto gear with a suitable mandrel until firmly seated. (Be sure to
press only on inner race of bearing and that bearing is firm against gear.)
6. Apply a light coat of Quicksilver Super Duty Gear Lubricant onto outside diameter of
propeller shaft needle bearing.
7. Place propeller shaft needle bearing into aft end of bearing carrier with numbered side
toward aft end.
8. Use Mandrel 91-15755 and press needle bearing into bearing carrier.

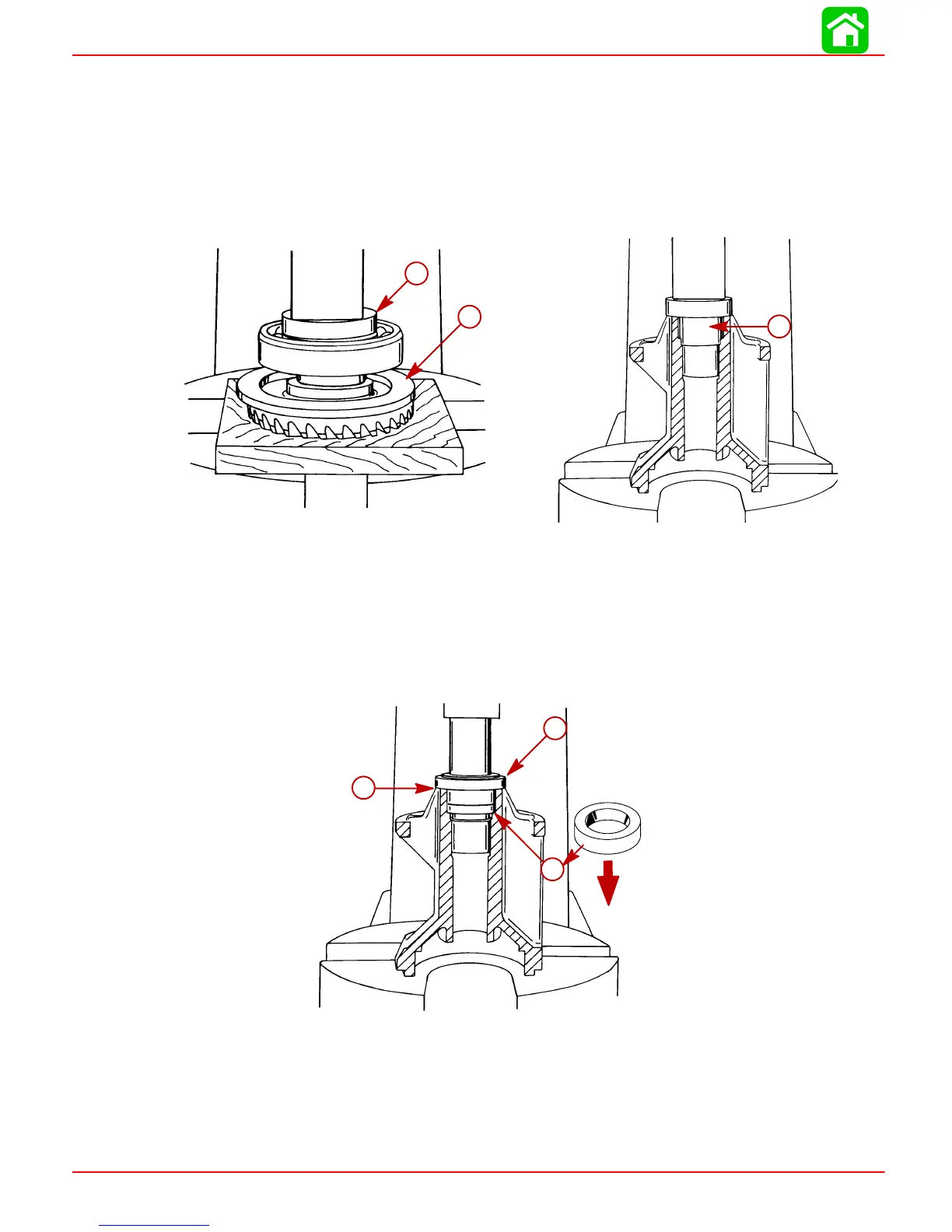

51872
51873
a
b
c
a-Thrust Washer
b-Mandrel
c-Mandrel (91-15755)
9. Apply Loctite 271 to outer diameter of propeller shaft oil seals.
10. Place one seal on longer shoulder side of Oil Seal Driver (91-31108) with lip of seal
away from shoulder. Press seal into bearing carrier until seal driver bottoms against
bearing carrier.
51872
a
b
c
a-Oil Seal (Lip of Seal Down)
b-Oil Seal Driver
c-Seated
