LEFT HAND NON-RATCHETING
90-855347R1 JANUARY 1999 Page 6B-33

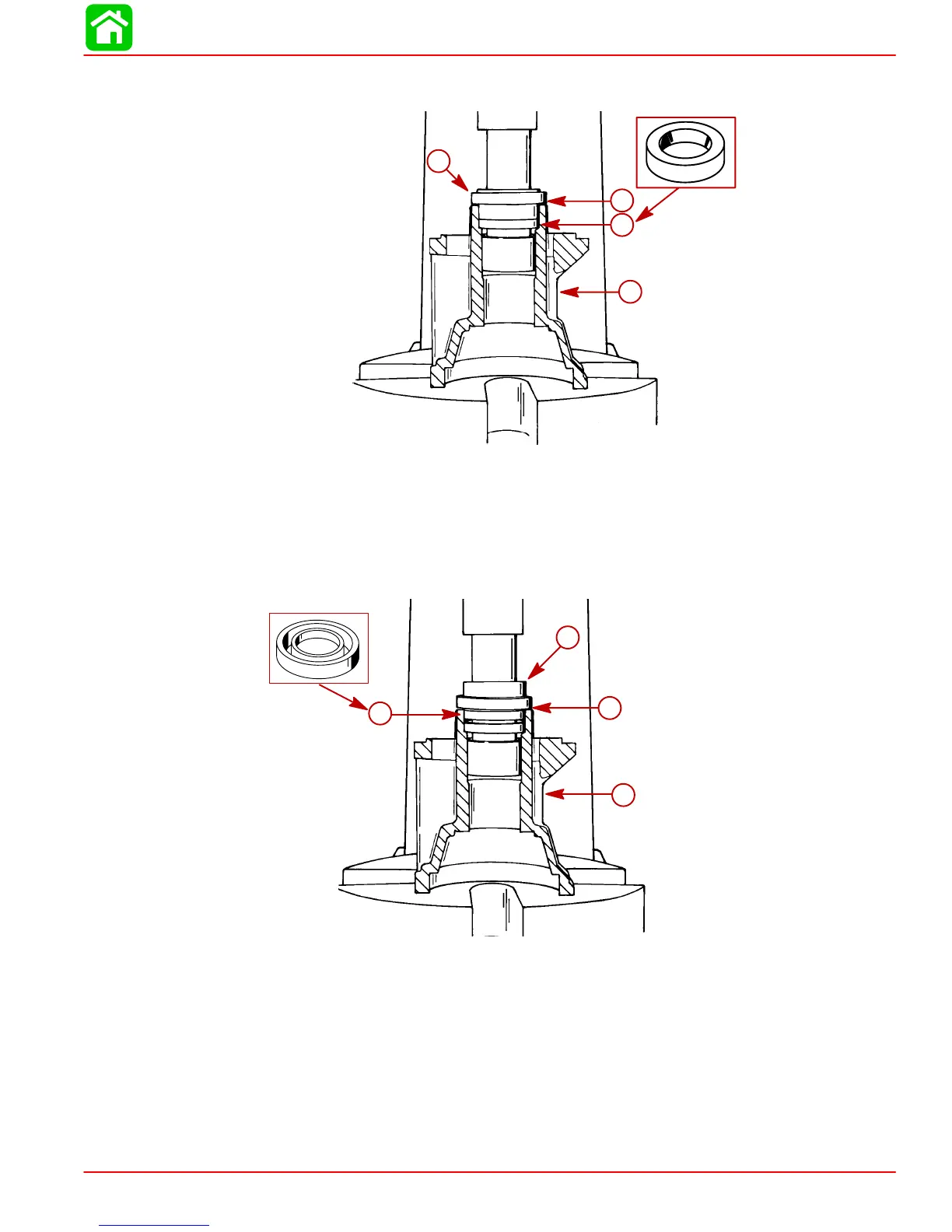

3. With seal lip facing towards bearing, press inner seal using long end of mandrel
(91-31108) into bearing carrier until mandrel shoulder bottoms out on bearing carrier.
51881
a
b
c
d
a-Inner Seal
b-Mandrel (91-31108)
c-Bearing Carrier
d-Mandrel Shoulder
4. With seal lip facing towards mandrel, press outer seal using short end of mandrel
(91-31108) into bearing carrier until mandrel shoulder bottoms out on bearing carrier.
51881
a
b
c
d
a-Outer Seal
b-Mandrel (91-31108)
c-Bearing Carrier
d-Mandrel Shoulder
5. Lubricate both seal lips with 2-4-C w/Teflon Marine Lubricant (92-90018A12).
