LEFT HAND NON-RATCHETING
Page 6B-46 90-855347R1 JANUARY 1999

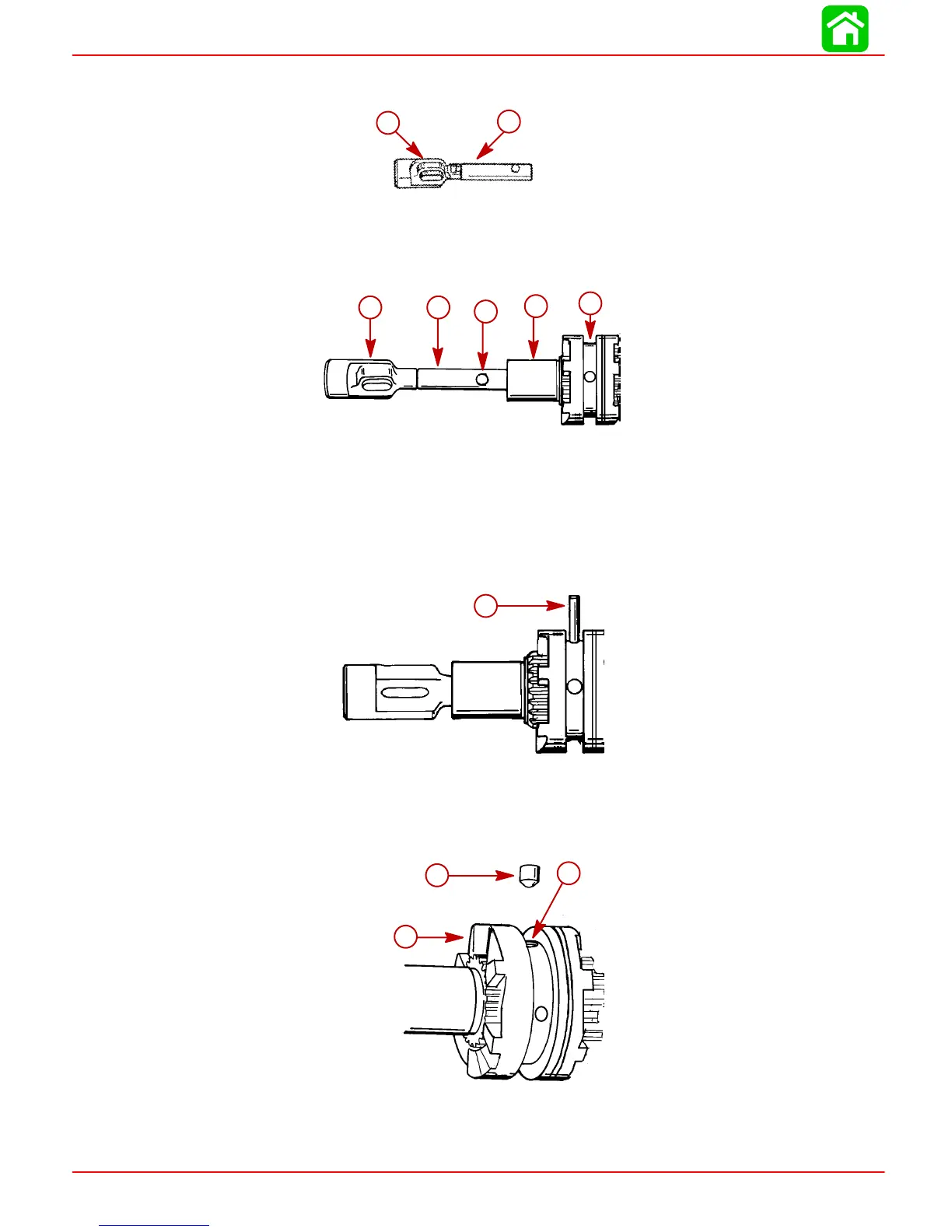

2. Place a small amount of Quicksilver 2-4-C w/Teflon Lubricant on actuator rod and
install cam follower.
a
b
a-Actuator Rod
b-Cam Follower
3. Slide clutch actuator assembly into propeller shaft. Align cross pin slot in actuator rod
with cross pin slot in clutch/propeller shaft.
51875
a
b
c
d
e
a-Cam Follower
b-Clutch Actuator Rod
c-Propeller Shaft
d-Cross Pin Slot
e-Clutch/Propeller Shaft
4. Insert cross pin through sliding clutch, propeller shaft and actuator rod forcing cross
pin tool out.
51875
a
a-Cross Pin
5. Apply a small amount of 2-4-C w/Teflon Marine Lubricant (92-90018A12) to the
rounded end of detent pin. Position detent pin in detent pin hole of sliding clutch with
rounded end of pin toward propeller shaft.
51879
a
b
c
a-Detent Pin
b-Detent Pin Hole
c-Sliding Clutch
To Next Page
