5. Inspection and lubrication of steering head assembly (rotary or straight rack) should
be performed once each year (by your Authorized Dealer) or whenever steering
mount and/or steering head are disassembled, or if steering effort has increased. Lu-
bricate with 2-4-C w/Teflon.
28168
a
a
b
c
d
a
a
b
c
d

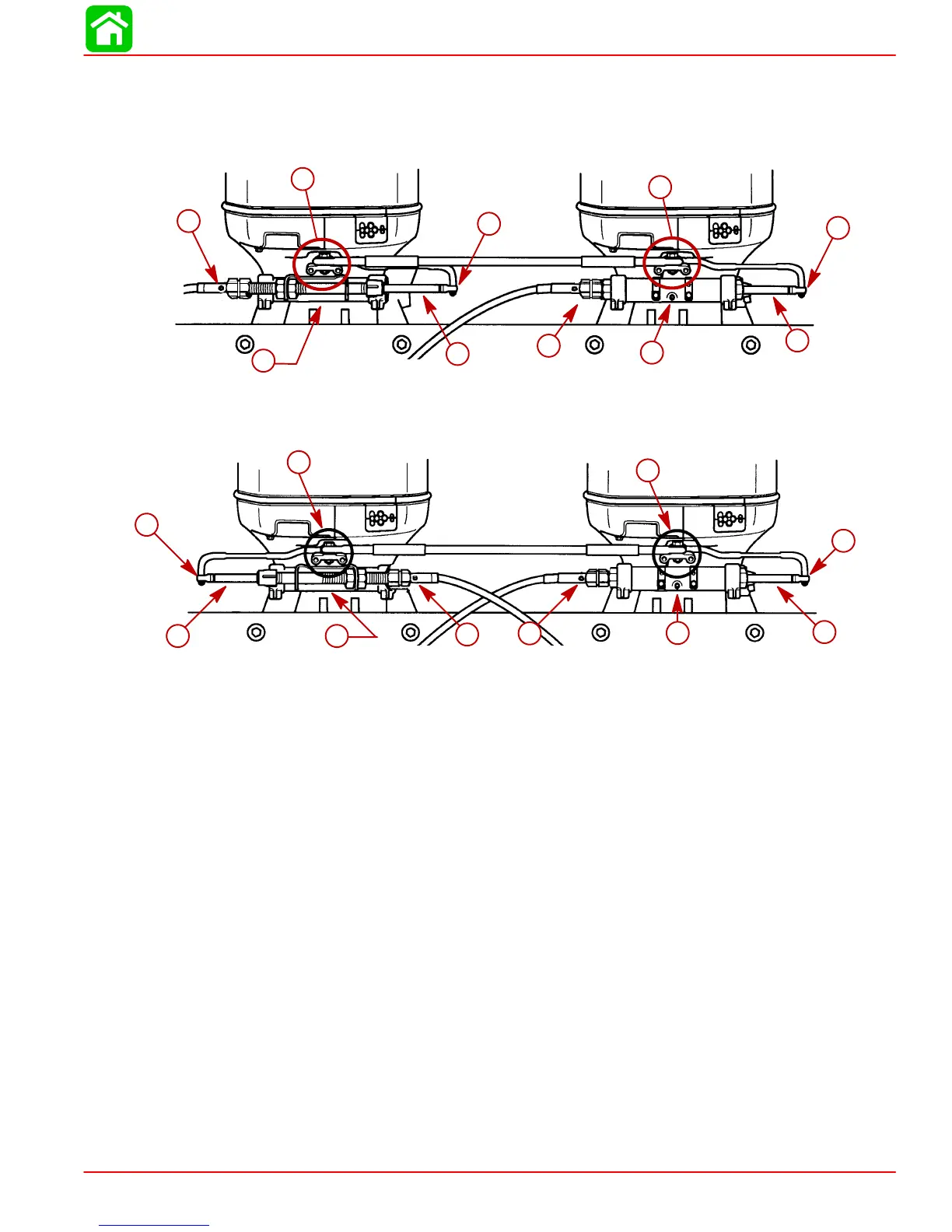

Lubrication Points for Parallel Cable Routing Installations
28175
a
a
a
a
b
c
d
b
c
d
Lubrication Points for Opposite Side Cable Routing Installations
a-Grease Fittings
b-Cable Ends
c-Pivot Points
d-Ball Joints
