MERLO PANORAMIC - Page 64

4 - COMMANDS AND INSTRUMENTS
4 - 9
• indication of operating faults
Any faults with the machine are signalled to the operator by the lighting up of the
relative indicator lights in the specific fields (A) of the LCD display (62).
Some faults also light up, at the same time, the corresponding indicator light at
the top of the instrument panel. In this case, follow the instructions in the table of
the section "INDICATOR LIGHTS ON THE INSTRUMENT PANEL".

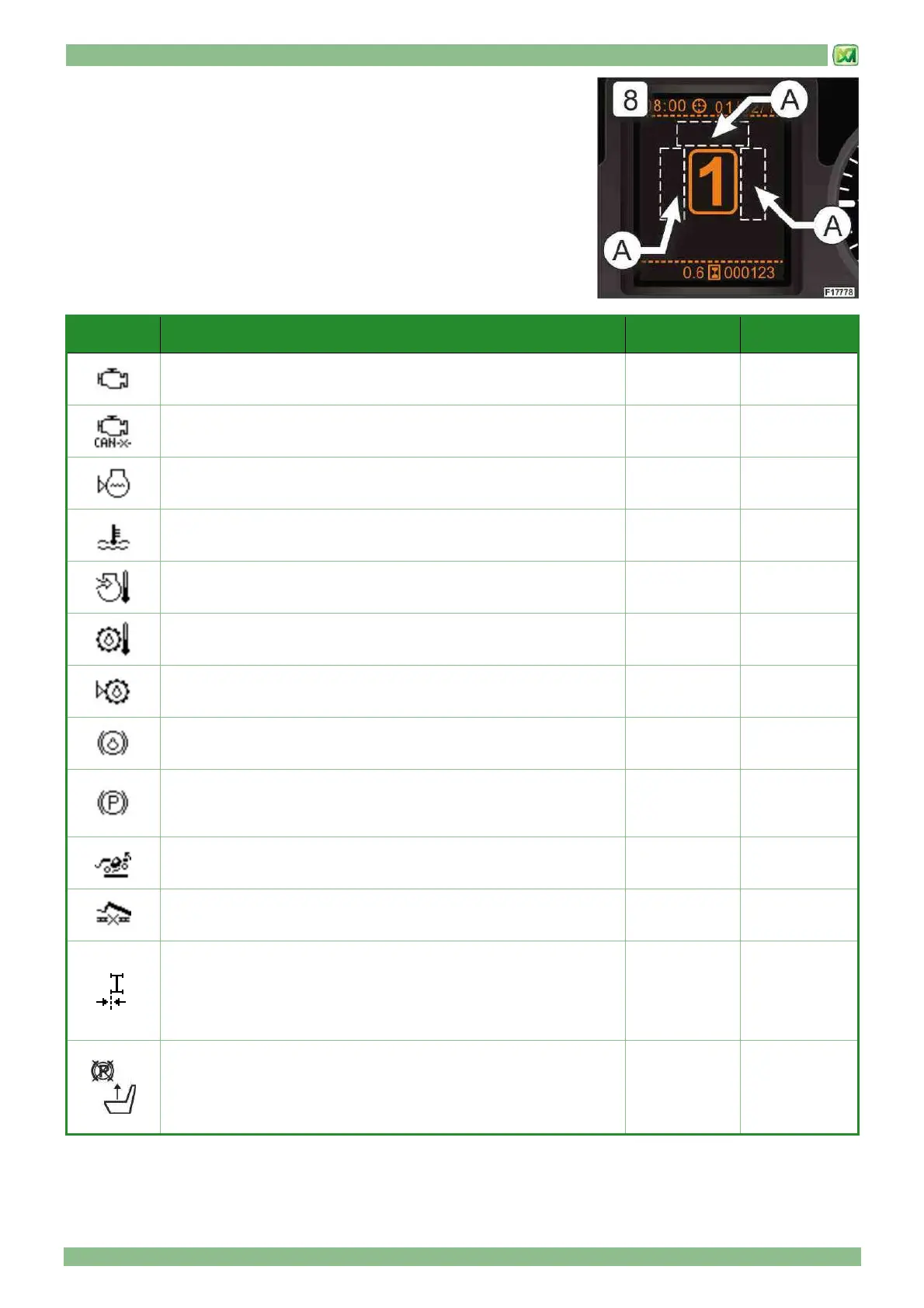

The following table shows all the possible faults that can be signalled:
INDICATOR
LIGHT
FAULT DESCRIPTION
IGNITION
MODE
AUDIBLE
ALARM
Engine fault
Function corresponding to warning light (87)
Steady No
Communication error between control unit and engine
(not active on this model)
Steady No
Engine coolant level
Function corresponding to warning light (132)
Flashing Intermittent
Engine coolant temperature
Function corresponding to warning light (93)
Steady No
Intercooler system air temperature
(not active on this model)
Steady No
Hydrostatic transmission oil temperature
Function corresponding to warning light (49)
Steady No
Hydrostatic transmission oil level
Function corresponding to warning light (48)
Steady No
Brake oil level
Function corresponding to warning light (46)
Steady No
Parking brake alarm
With the engine running and the parking brake applied, the
forward/reverse drive is selected.
Flashing Intermittent
Front overturn prevention system control
Function corresponding to warning light (54)
Steady No
Break in ropes
Function corresponding to warning light (206)
Steady No
Centring rear axle wheels (on request)
The wheels of the rear axle are not centred with the axis of the
machine. In this condition, do not drive on public roads. (for additional
information, refer to the section “OPTIONAL ATTACHMENTS AND
ACCESSORIES”.
Flashing Intermittent
Starting the engine or drive direction command inhibited
Starting the engine or drive direction command (forward / reverse) are
inhibited because no operator is sitting on the seat.
Sit correctly to restore operating conditions.
Steady Intermittent
