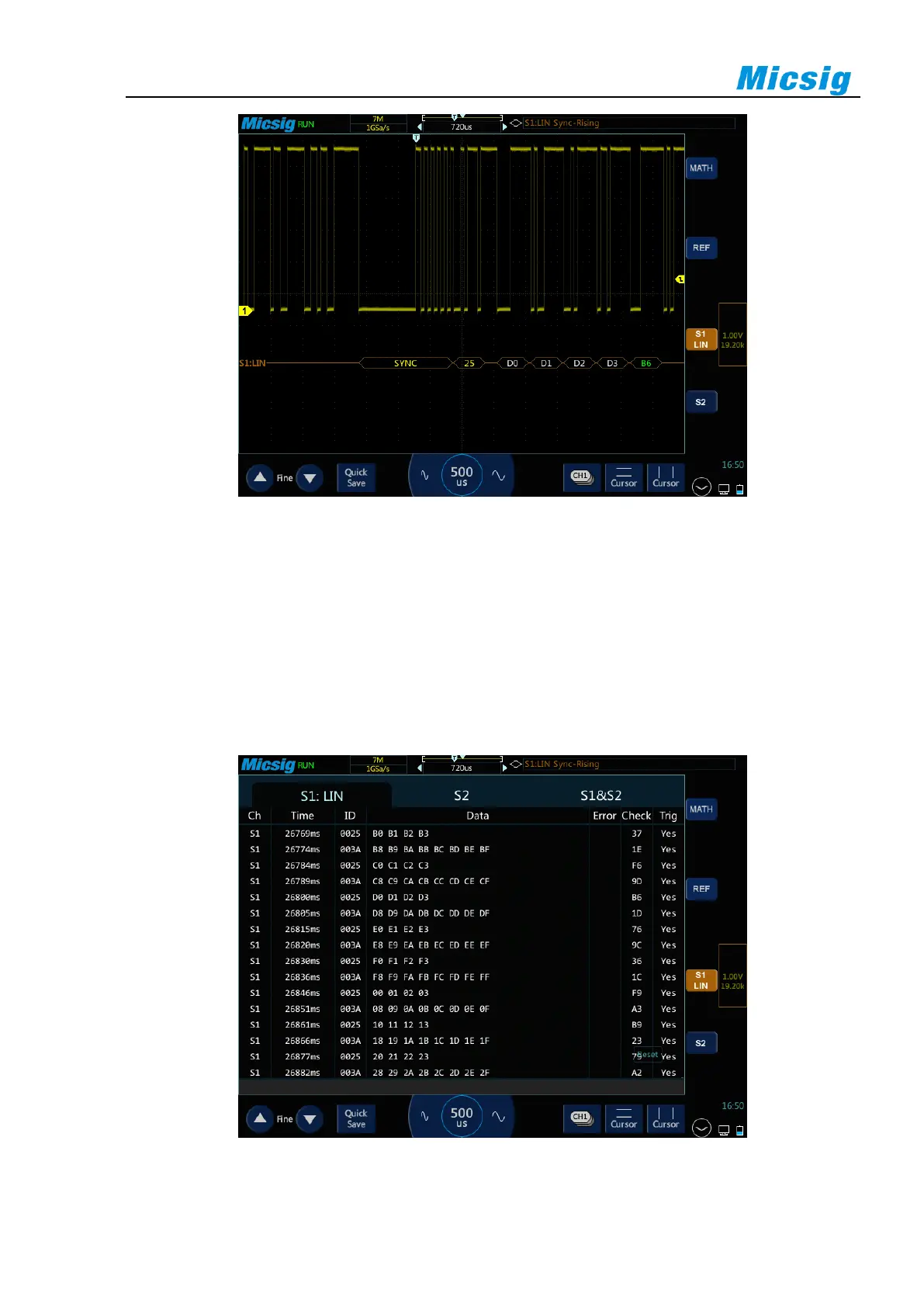

Figure 12-12 LIN Graphic Interface
LIN decode data packet description:
(1) Decode data packet displays real-time data about the bus activities.
(2) Decode data displays as hexadecimal system.
(3) “Frame ID” displays in yellow, “Data” displays in white, and “Parity sum” displays in green. If the
parity sum has error, it is displayed in red “E”.
(4) When “?” appears, the time base needs to be adjusted to view decode results.
Figure 12-13 LIN Text Interface
