Milli-Q Direct 8 - Tubing, Cables and Power Cord

24 Milli-Q® Direct 8/16 System

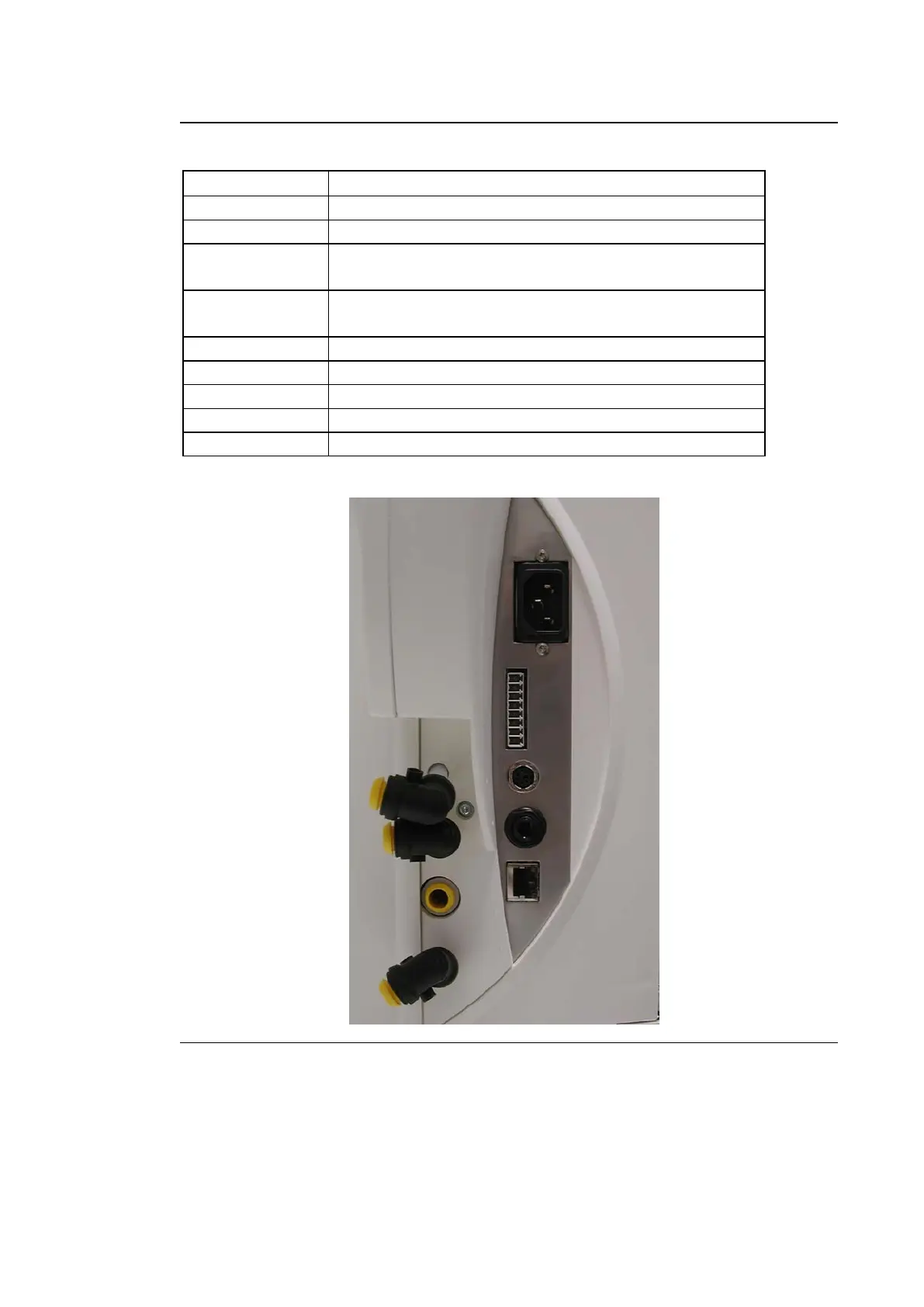

Tubing, cables and power cord
Summary
Item
Description
1
RO Reject Water tubing. Goes to a drain.
2
Feed water supply tubing to Milli-Q® Direct system.
3
Tubing connected here comes from the bottom of the
Reservoir. See the next section.
4
Tubing connected here goes to the bottom of the
Reservoir. See the next section.
A
Power cord
B
Accessories cable
C
Termination Plug
D
Level Sensor from Reservoir
E
Ethernet cable
Continued on next page
1
4
D
3
2
E
C
B
A
