Basic Operations
4
6
Installing a Roll Sheet
4

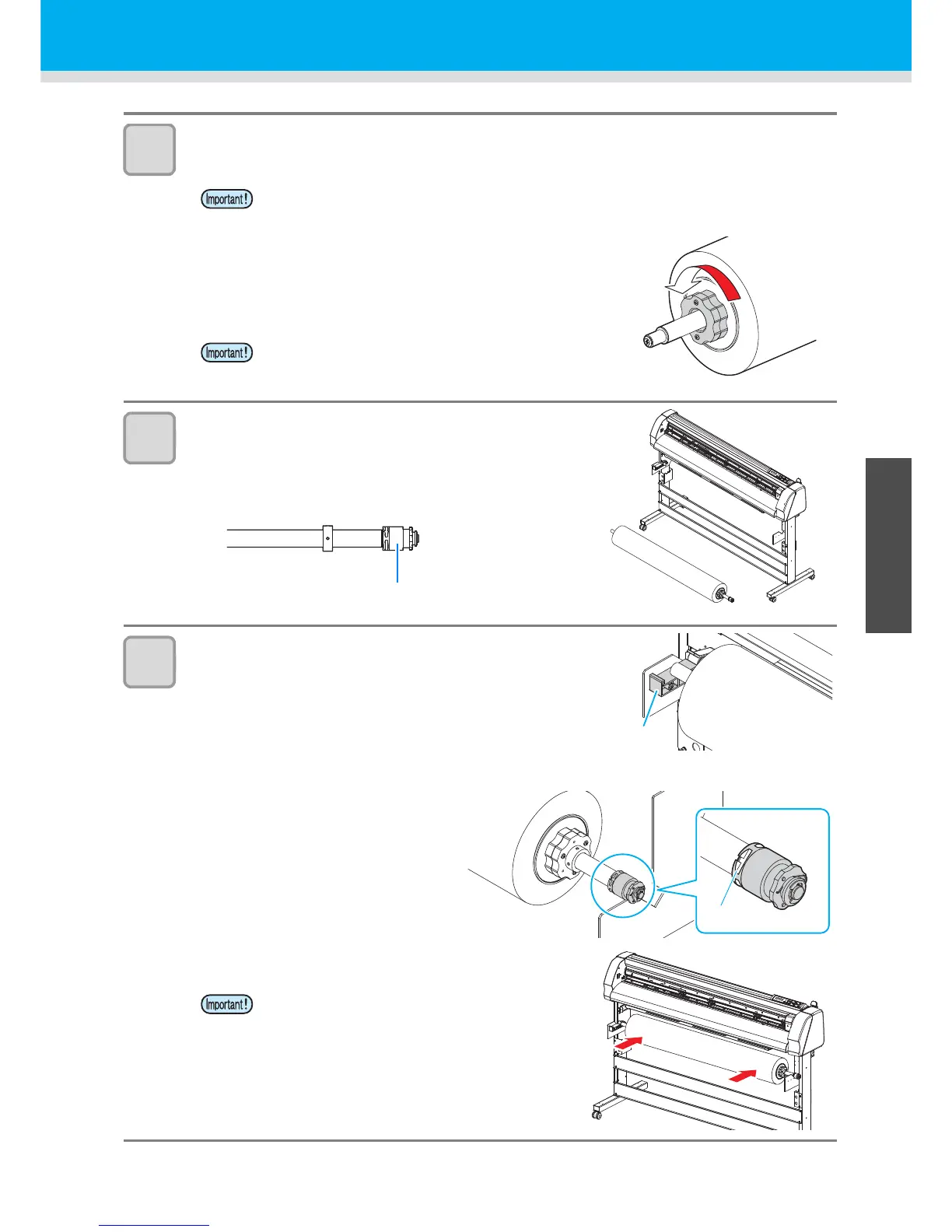

Put another roll holder into the roll bar through, and fix the roll sheet.
(1) Loosen the roll set screw of another roll holder.
(2) Insert the roll holder into the paper core of the roll sheet
and tighten the roll set screw.
• Insert it firmly so that the paper core may not move
during cutting (plotting).
5
Making the torque limiter side of the roll bar with
sheet to the right side, arrange it in the front side
of this device.
6
Attach the roll sheet on this device.
(1) Put the left side of the roll bar on the sheet tray.
(2) Align the groove of torque limiter part on the right side of the roll bar with the sheet holder.
(3) Push the roll sheet to the rear slowly to set it.
• Be careful not to loosen the roll set screw too much. If you loosen it too much, the roll
holder may be broken down.
• Check that the roll sheet does not move.
• If the roll sheet goes around, use the attached
roll handle and insert firmly.
• If you push the roll sheet fast and furious, the
roll sheet may fall off from the sheet tray and it
may cause injury. Therefore, be sure to set it
slowly.
