About sheet detection
When you move the clamp lever to the rear side with the power of this device ON, the device enters in the
sheet detection mode.
There are two types of sheet detection.
When you detect sheet with “normal detection”
When “PAPER SET” is displayed on the screen, press the key to detect the sheet.
When you detect sheet with “sheet width detection”
When “PAPER SET” is displayed on the screen, press the key to detect the sheet.

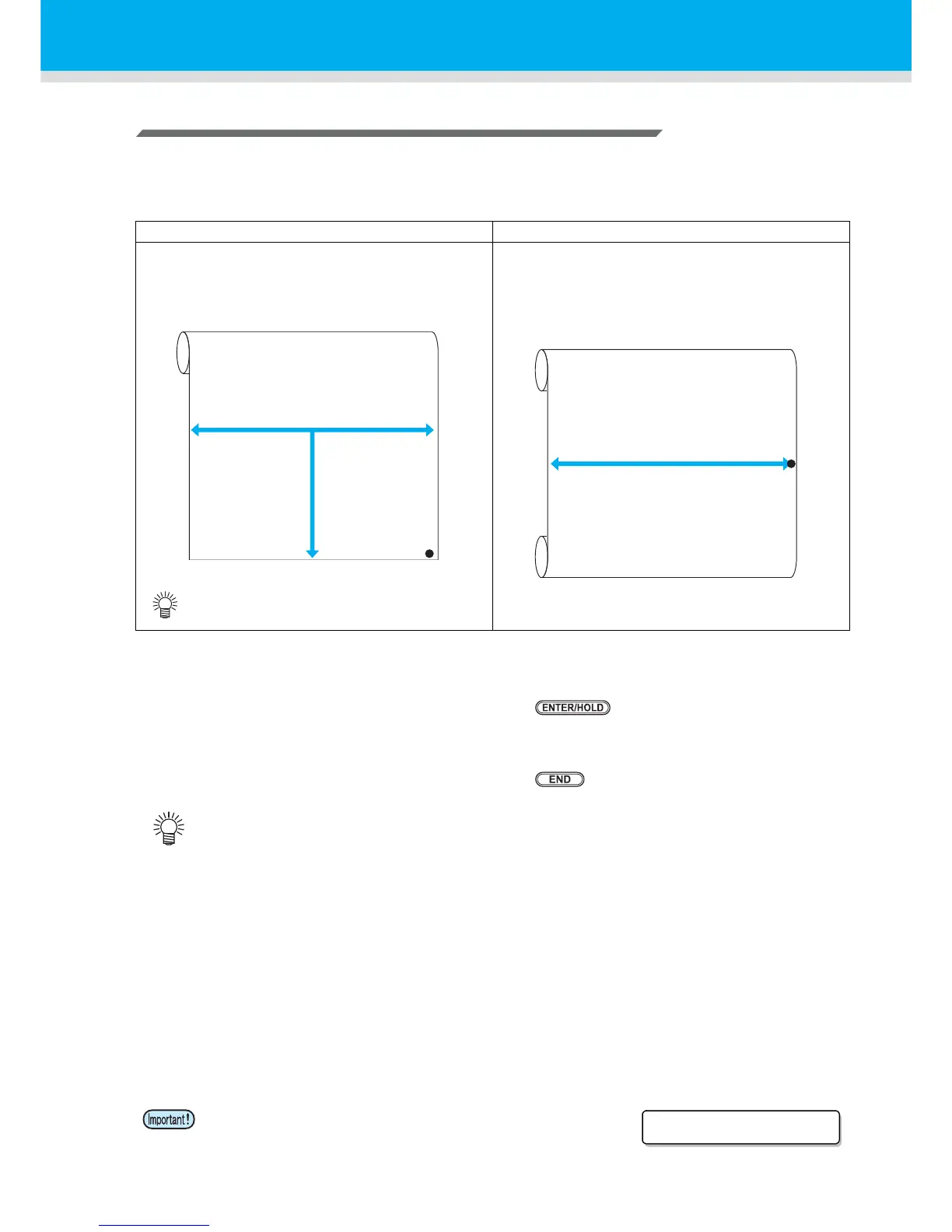

Normal detection Sheet width detection
After the sheet width was detected, detects the sheet front
edge. In the following cases, perform “normal detection”.
• When you set a roll sheet
• When you cut off the sheet and detect the sheet again
Only detects the sheet width.
In the following case, perform “sheet width detection”.
• When you cut (plot) continuously without cutting off the
sheet
The operation after sheet detection differs depending on the setting contents of the setting
function.
• When you set “pre-feed setting” (For the recommended value, refer to P.2-10 “Reference for cutting
condition”.)
(1) The sheet is fed automatically by the feed length set in “pre-feed setting”.
(2)
Acclimate the sheet to the work environment until the waiting time set in “pre-feed setting” has passed.
(3) Take the sheet up by the set feed length.
• When you set “over feed” of “pre-feed setting” to ON
(1) The sheet is fed automatically by twice the feed length set in “pre-feed setting”.
(2) Take the sheet by half of fed length (length set for feed length).
(3)
Acclimate the sheet to the work environment until the waiting time set in “pre-feed setting” has passed.
(4) Take the sheet up by the set feed length.
• When you set “DUMMY CUT function”
When you select CUT 1 to 7 in the tool condition, after the sheet has been detected, the cut off
operation is performed.
• If you operate the clamp lever without the sheet set, the right
screen appears.
