Adjusting the cutter blade
Adjustment of the blade of any cutter other than that supplied with the unit is described below.
After the completion of adjustment, be sure to set cutting conditions and perform test cutting to
check the blade for sharpness.
Refer to page 2.11 for how to adjust the cutter blade supplied with the unit.

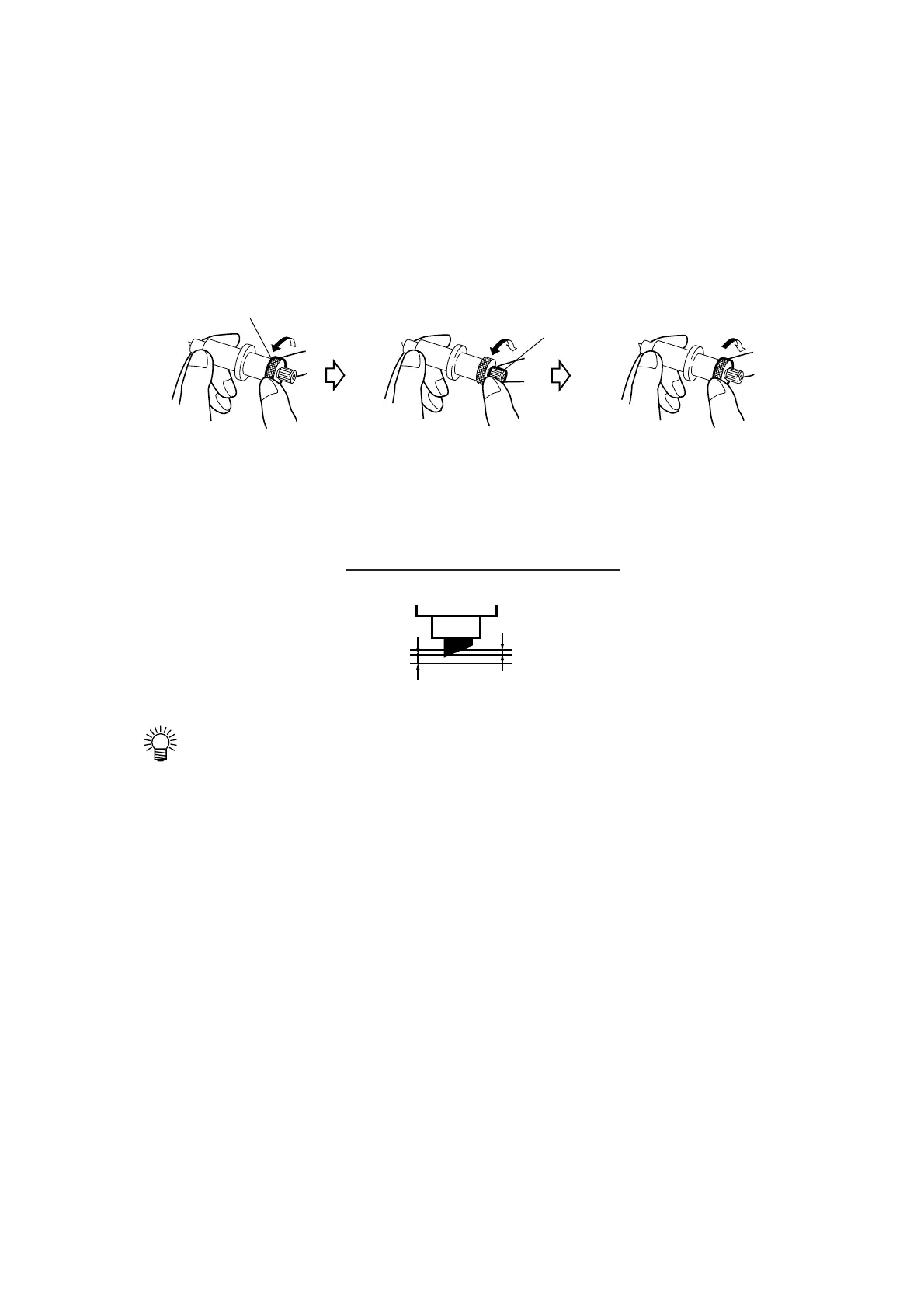

Protruding amount (Film thickness + Base paper thickness)
of the blade 2
=
Base paper thickness
Film thickness
2) Turn the adjusting knob
to adjust the protruding
amount of the blade.
Lock nut
Adjusting knob
3) Tighten the locknut to
secure the adjusting knob.
1) Loosen the locknut.
• The blade adjuster (model: OPT-S1005) will facilitate the adjustment of the
protruding amount of the blade.
