– 2.10 –
ATTACHING A TOOL
The below-stated tools can be used with the device.
Cutter, pen (water-ink ball-point pen) supplied with the unit, and pouncing tool (optional)
To use the cutter, adjust the blade tip of the cutter in prior to attaching it.
• Refer to the appendix for how to replace the cutter blade and how to adjust the
blade tip of a cutter that is not supplied with the unit.

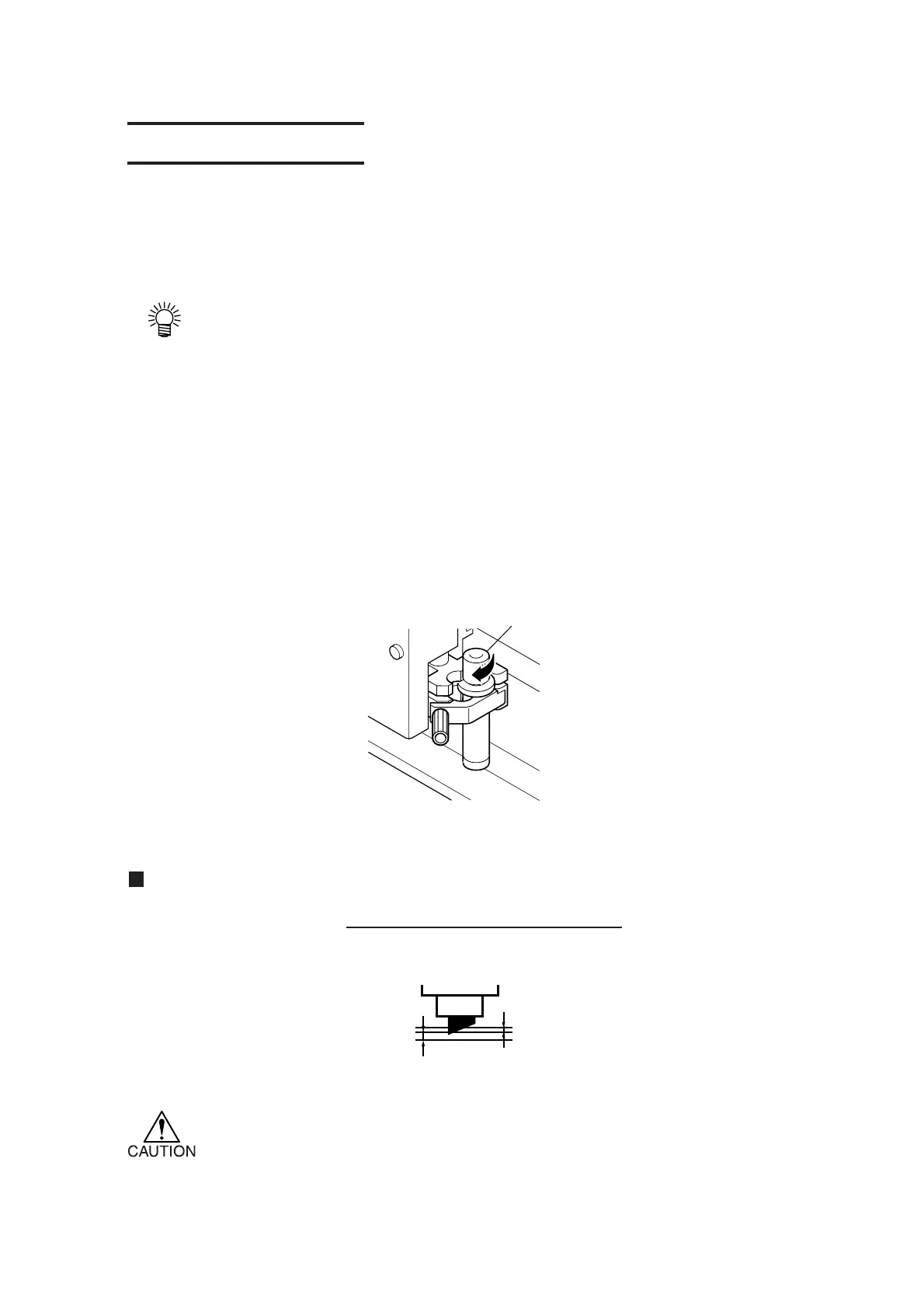

Adjusting the blade tip of the cutter
Adjust the protruding amount of the cutter blade to the type of cutter and sheet of media to be used.
When you have adjusted the cutter blade, conduct test cutting to check the cutter for sharpness.
For the cutter supplied with unit, the protruding amount of the blade can be adjusted with the cutter
mounted in the pen carriage.
Protruding amount of the cutter blade
Protruding amount (Film thickness + Base paper thickness)
of the cutter blade 2
* Take care not to protrude the blade too much. If the cutter is used with its blade
excessively protruded, the cutter can cut out the base paper to damage the main
unit.
=
Base paper thickness
Film thickness
Turn the adjusting knob.
To Next Page
