Mindray A7 Service Manual

Assembly Installation Guide
2 - 8 046-006272-00 A7™ Service Manual

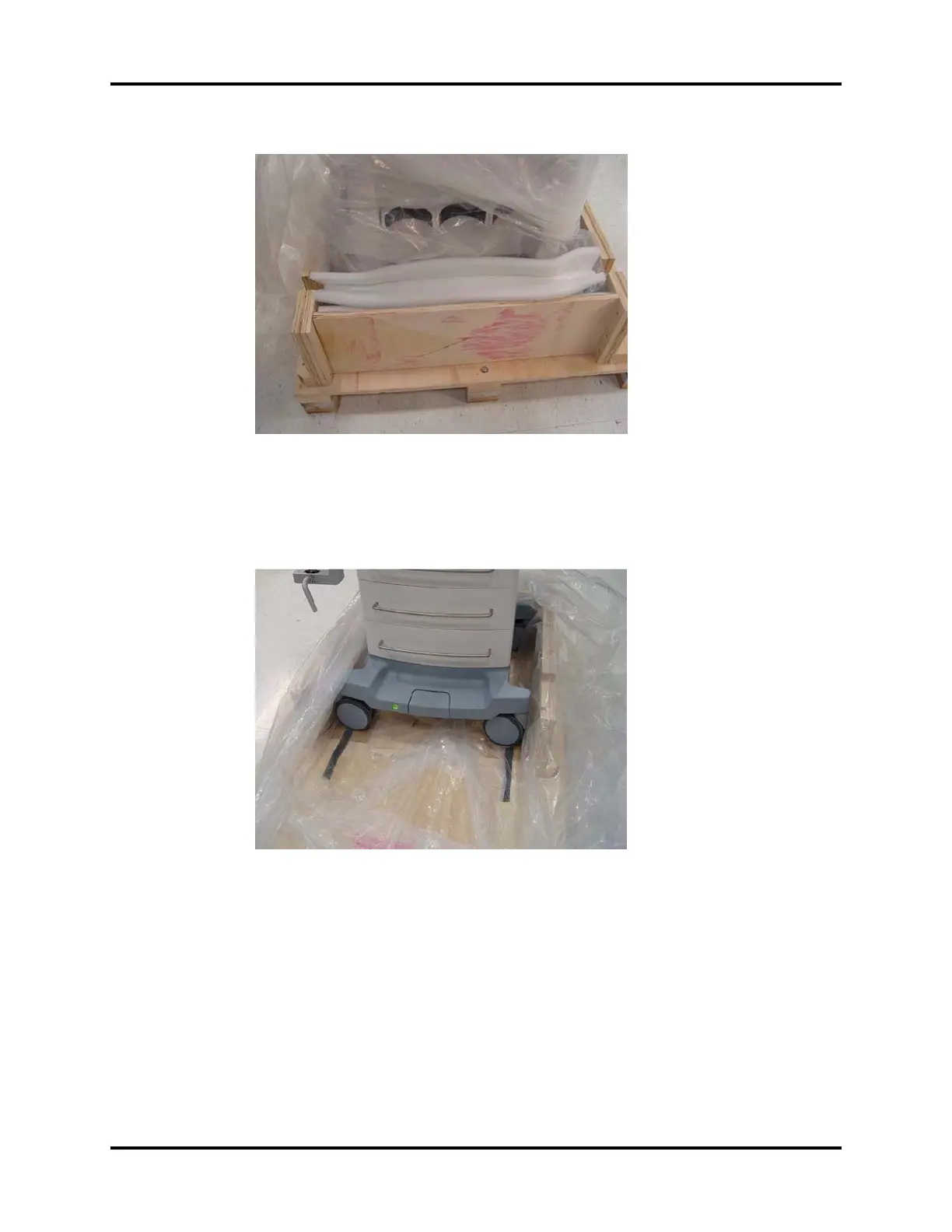

FIGURE 2-11
13. Create a ramp for the unit by placing the top of the container next to the base of the container
as shown. The flat side of the wood should be facing up. The other side of the wood has support
to hold up the ramp. Secure the ramp to the container using the hook-and-loop straps.
FIGURE 2-12
NOTE: Check that there are green beads in the desiccant pack and that they
have not turned pink.
14. Rotate the casters 90° and carefully roll the A7 unit down the ramp. Remove the bag from the
unit. Save the bag in case repacking is needed.
15. Open the bottom drawer and remove the Breathing Assembly and the Bag Arm Assembly.

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
