A7™ Service Manual 046-006272-00 4 - 35
Calibration System Calibration

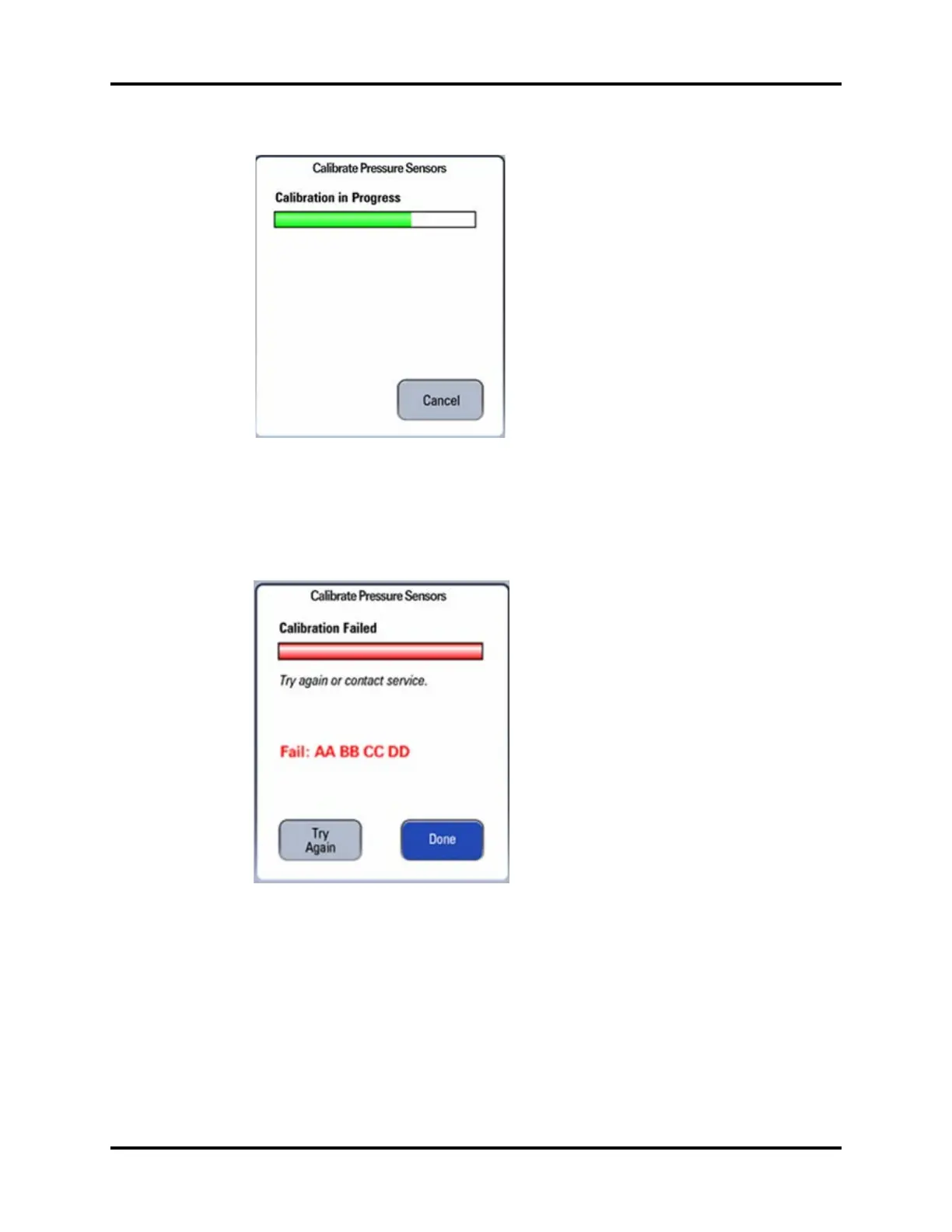

FIGURE 4-44
10. The screens shown below are displayed after the calibration is completed.
• The screen shown below is displayed if the pressure sensor calibration has failed. Select Try
Again to do the calibration again.Select Done to exit the calibration screen.
FIGURE 4-45
• The screen shown below is displayed after a successful pressure sensor calibration. Select
Done to exit the calibration screen.
