Operator’s Manual of Anesthesia System 7 - 5
Anesthetic Gases and O
2
Concentration Monitoring Identify External AG Module
2. Set the [Agent Usage] to (off ) or (on). If the [Agent Usage] is set to (off ),
no agent consumption speed is displayed on the Main Screen. If the [Agent Usage] is set to
(on), the agent consumption speed is displayed on the Main Screen.
3. Set the Cost/ml of Liquid Agent. When the [Agent Usage] is set to (on), the cost of used
agent is displayed on the Main Screen.
7.5 Identify External AG Module

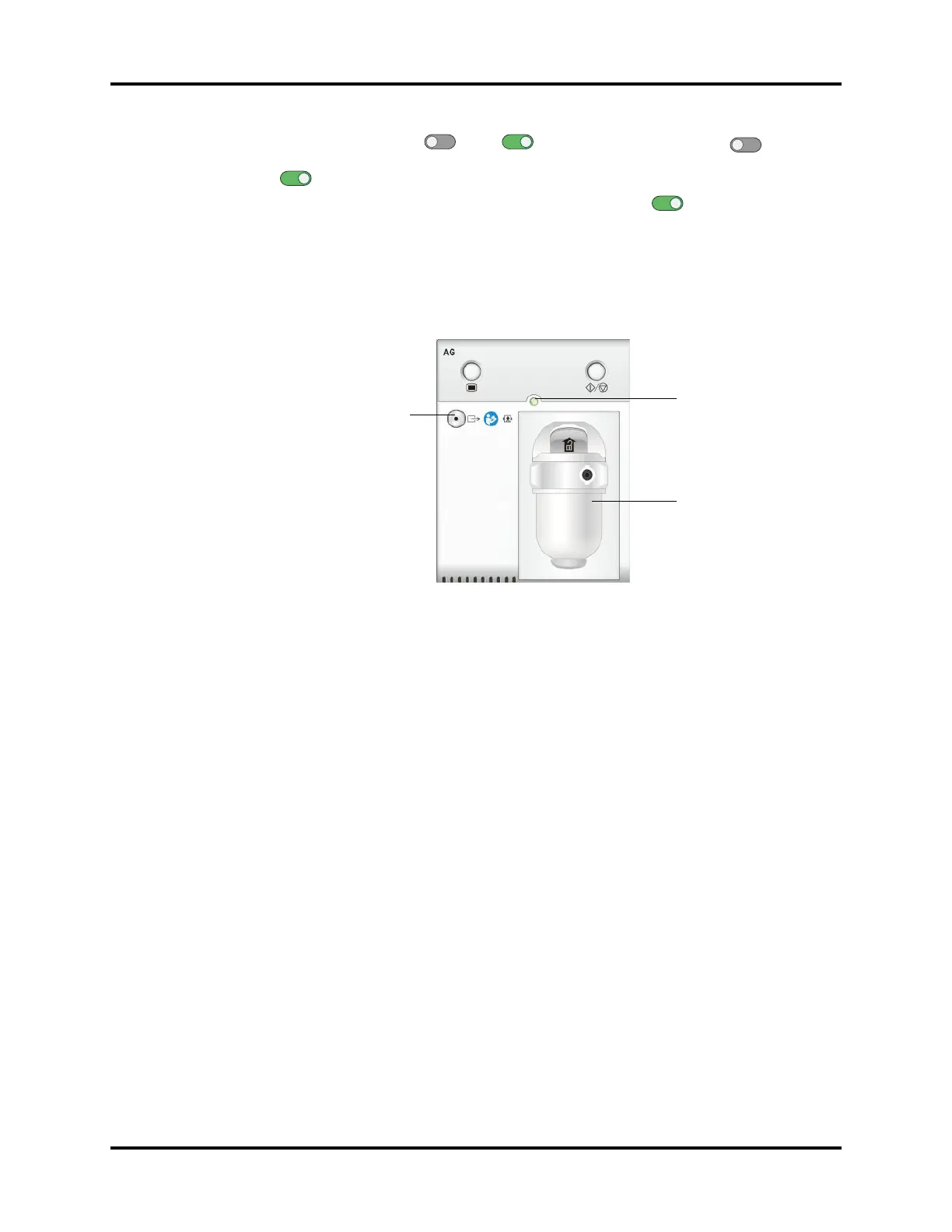

Figure 7-3 External AG module
NOTE: The AG module is configured with an automatic barometric pressure
compensation feature.
NOTE: The buttons on the AG module have been disabled.
NOTE: The indicator will flash when the module performs a self-test or when
the communication between the module and the system is abnormal.
The indicator is on when the communication between the module and
the system is normal.
Gas outlet
Indicator
Watertrap
