Mindray A9 Operating Instructions

Operator’s Manual of Anesthesia System 7 - 11
Anesthetic Gases and O
2
Concentration Monitoring Calibrate the AG Module
WARNING: When using AG module to perform AG measurements on the patient who is receiving
or has recently received anesthetic agents, you must connect the gas outlet on the
module to the sample gas return port to return the sample gas to the patient circuit,
preventing the medical staff from breathing in the anesthetic agent.
WARNING: When the Sample Gas Recirculation feature is enabled, please install a breathing
system filter compliant with the ISO 23328-1 and ISO 23328-2 standards on the
patient end.
NOTE: The sample gas recirculation will not impact the measuring precision.
7.11 Calibrate the AG Module
Prepare the following before doing the calibration:
• Gas cylinder: contains a standard or mixed gas. The gas concentration should meet the
following requirements: AA>1.5%, CO
2
>1.5%, N
2
O >40%, O
2
>40%. AA represents an
anesthetic gas.
• T-shape connector
• Breathing tubes
Follow this procedure to perform a calibration:
1. Use the T-shape connector to connect the gas cylinder, gas bag and sampling tube as follows.

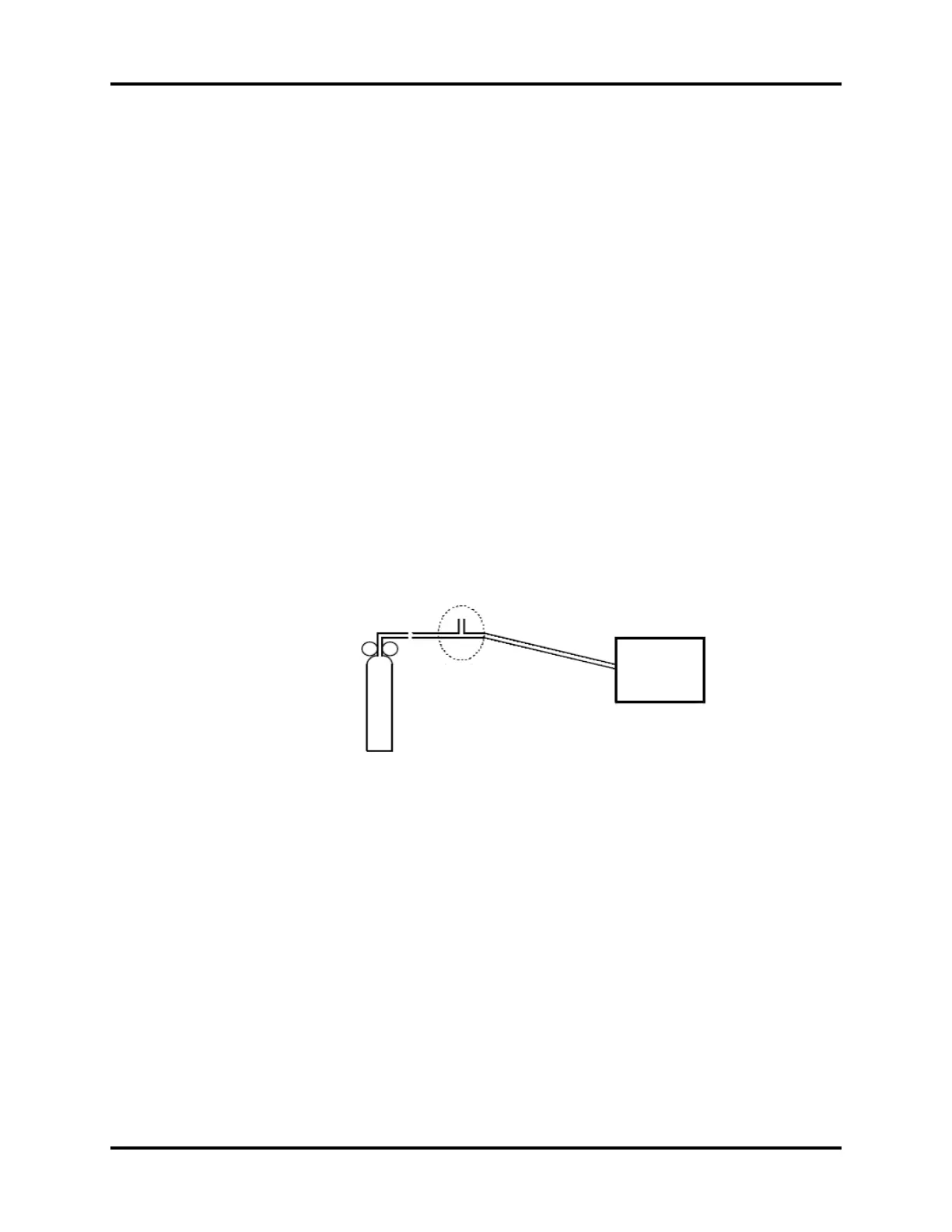

Figure 7-7 Calibrate the AG module
Relief valve
Gas cylinder
Sampling tube
AG module
Vented to the air

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
