Anesthetic Gas Scavenging System (AGSS) Installation and Disassembly
3 - 8 Operator’s Manual of Anesthesia System
3.7 Anesthetic Gas Scavenging System (AGSS)
3.7.1 Active AGSS
• When the ACGO circuit needs to scavenge the gas to the AGSS, connect the AGSS port with the
ACGO as shown below.
Figure 3-6 Active AGSS (connecting to the ACGO circuit)
• When the gas path of the patient monitor does not meet the biological compatibility standard,
the patient monitor needs to scavenge the waste gas to the AGSS. Use the adapter as shown
below.
Figure 3-7 Active AGSS (connecting to the patient monitor)

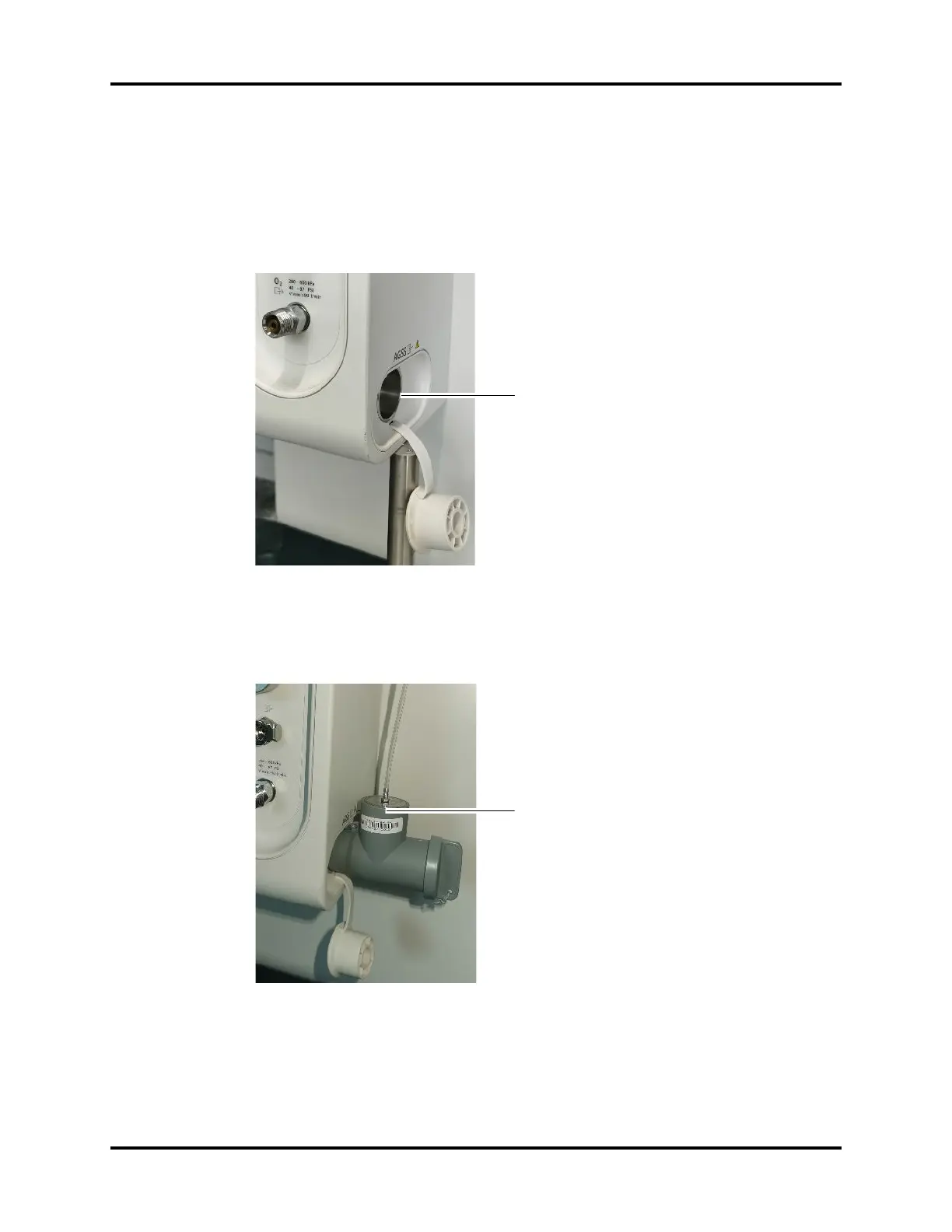

Connecting to the ACGO circuit
Connecting to the patient
monitor via sampling tube
