Mindray A9 Operating Instructions

Setup Menu System Interface
4 - 28 Operator’s Manual of Anesthesia System
4.7.1 Ventilation

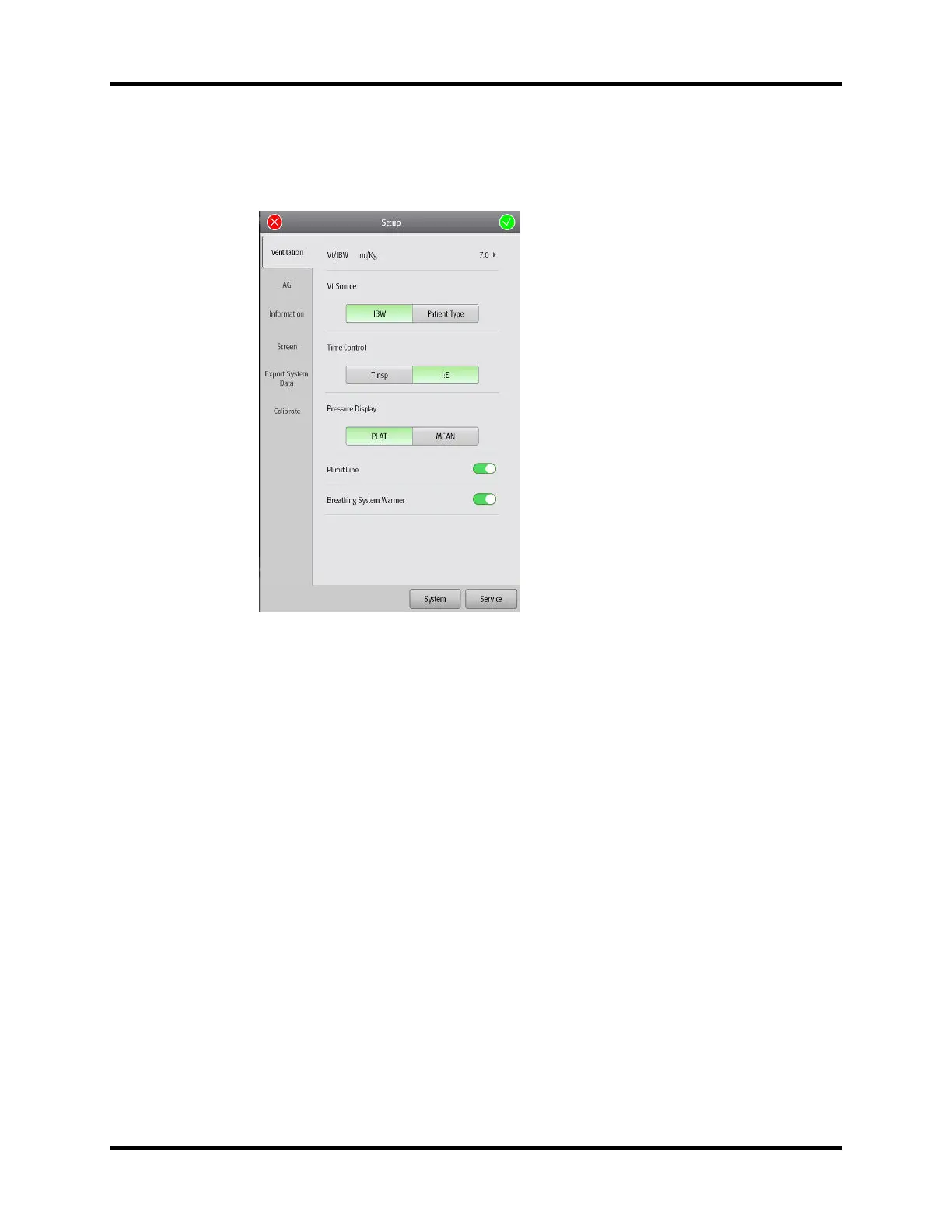

Figure 4-31 Ventilation (taking AG module configuration for example)
Vt/IBW
The system calculates the default tidal volume in the ventilation mode based on the [Vt/IBW] value.
It is available for the VCV, SIMV-VC, PCV-VG, and SIMV-VG modes.
Vt Source
Set the [Vt Source] to [IBW] or [Patient Type]. When the [Vt Source] is set to [Patient Type],
changes to [IBW] won't impact [Vt] setting. When the [Vt Source] is set to [IBW], changes to [IBW]
will impact [Vt] and [RR] settings based on the aforementioned Vt/IBW result.
Time Control
When [Time Control] is set to [I:E], the time control parameter in the VCV, PCV and PCV-VG
ventilation modes is [I:E], and that in the PS and CPAP/PS ventilation modes is [Apnea I:E]. When
[Time Control] is set to [Tinsp], the time control parameter in the VCV, PCV and PCV-VG ventilation
modes is [Tinsp], and that in the PS and CPAP/PS ventilation modes is [Apnea Ti].
Pressure Display
Set the pressure monitoring to display on the Main Screen to [Plat] or [Mean].

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
