Mindray A9 Operating Instructions

Main Screen System Interface
4 - 2 Operator’s Manual of Anesthesia System
4.1 Main Screen

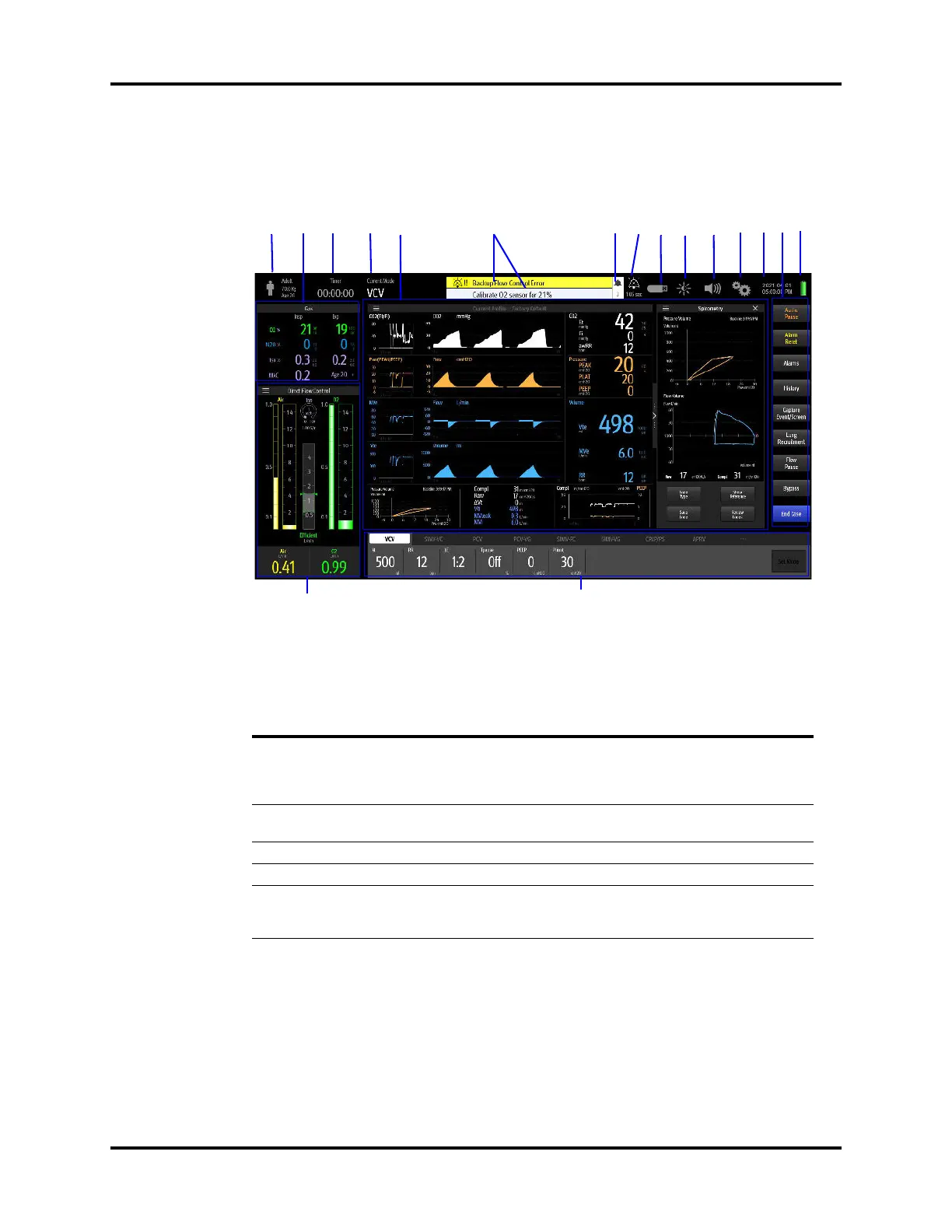

Figure 4-1 Main Screen
SERIAL
NO. MAIN SCREEN DESCRIPTION
1 Patient information Shows the information of the current patient, including
the patient type, weight and age. You can click on the
section to view more personal information of the patient.
See (Pages 4-3) 4.2.1 "Patient Information".
2 Gas Area The section displays parameter information in real time
when the Gas or O
2
Sensor module is configured.
3 Elapsed / Countdown Timer Displays elapsed time. Select to start,stop, or reset the timer.
4 Current ventilation mode Displays the current ventilation mode.
5 Waveform/parameter/
spirometry/trend display
zone
Displays the waveforms, monitoring parameters, spirometry,
trends.
Table 4-1 Main Screen
1
2
4
8
9
11
3
125
6
10
7
16
17
13 1514

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
