Operator’s Manual of Anesthesia System 4 - 17
System Interface Waveform/Parameter/Spirometry/Trend Display Zone
4.4.1 Waveform/Parameter Screen
Displays the pressure, flow rate, volume, CO
2
, O
2
, N
2
O, and AA waveforms and monitoring parameters.

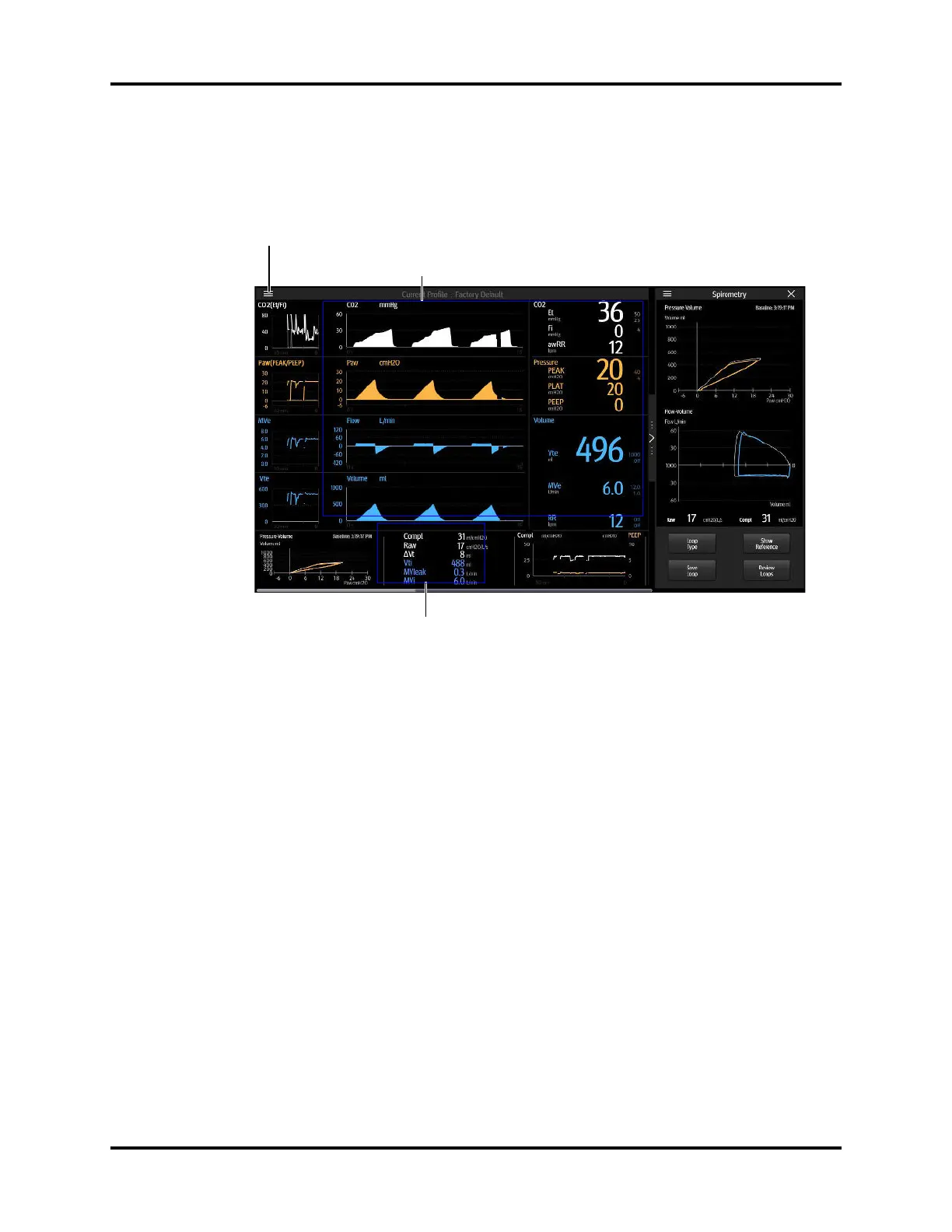

Figure 4-19 Waveform/parameter screen
4.4.2 Spirometry Screen
Spirometry loops reflect patient lung function and ventilation. They also indicate other related
parameters such as compliance, over-inflation, breathing system leak, and airway blockage.
The system provides three types of spirometry loops: pressure - volume loop, flow - volume loop
and pressure - flow loop. Loops data comes from pressure and flow data. A maximum of two loops
are displayed at a time.
Four soft keys are displayed on the Spirometry screen: Loop Type, Show Reference, Save Loop and
Review Loops.
Select this control to select the desired waveforms and
monitoring parameters to display on the pop-up screen.
Waveform and its monitoring parameters
Monitored parameters
