5-48 Image Optimization
General Parameters Preset
 Display Format: to set the image display format in 3D image viewing status.
 Tool: to set the edit type in image edit mode.
 Edit Depth: to set the edit depth in image edit mode.
 MPR Line: to set the display manner of MPR Line in image rendering mode.
Parameter Package Preset
There are five presettable parameter packages for each mode. They are independent
from each other.

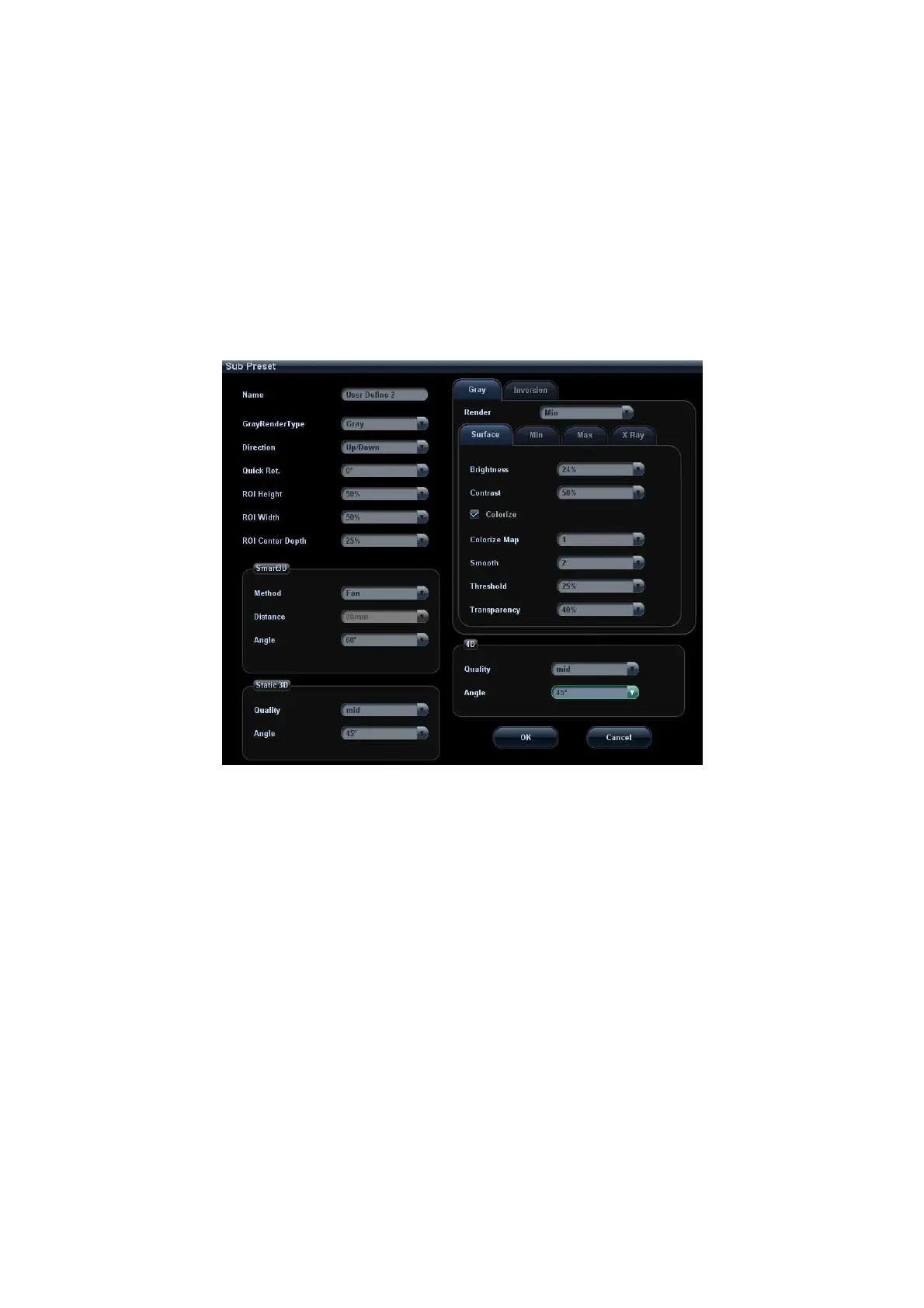

Click the button of one package to enter the Sub Preset interface, see the following figure.
1. Name: move the cursor to the Name column and enter the preset package name.
2. General parameters preset:
Render: select image rendering mode.
Direction: select 3D view direction.
Quick Rot.: set the angle for quick rotation.
ROI Height: set ROI height.
ROI Width: set ROI width.
ROI Center Depth: set ROI center depth.
3. Sub modes parameters preset
Set mode-specified parameters for Smart3D, Static 3D or 4D separately.
4. Parameters of rendering modes
There are two types of rendering modes: grayscale rendering and inversion, both
includes four types: Surface, Max, Min, X Ray. Click a rendering mode tab to preset
its rendering parameters.
