Mindray M6 User Manual

2-14 System Overview
2.8 Extend Modules
There are four extend modules available for the system:
 Probe extend module
 I/O extend module
 V/A extend module
 ECG module
2.8.1 Probe Extend Module

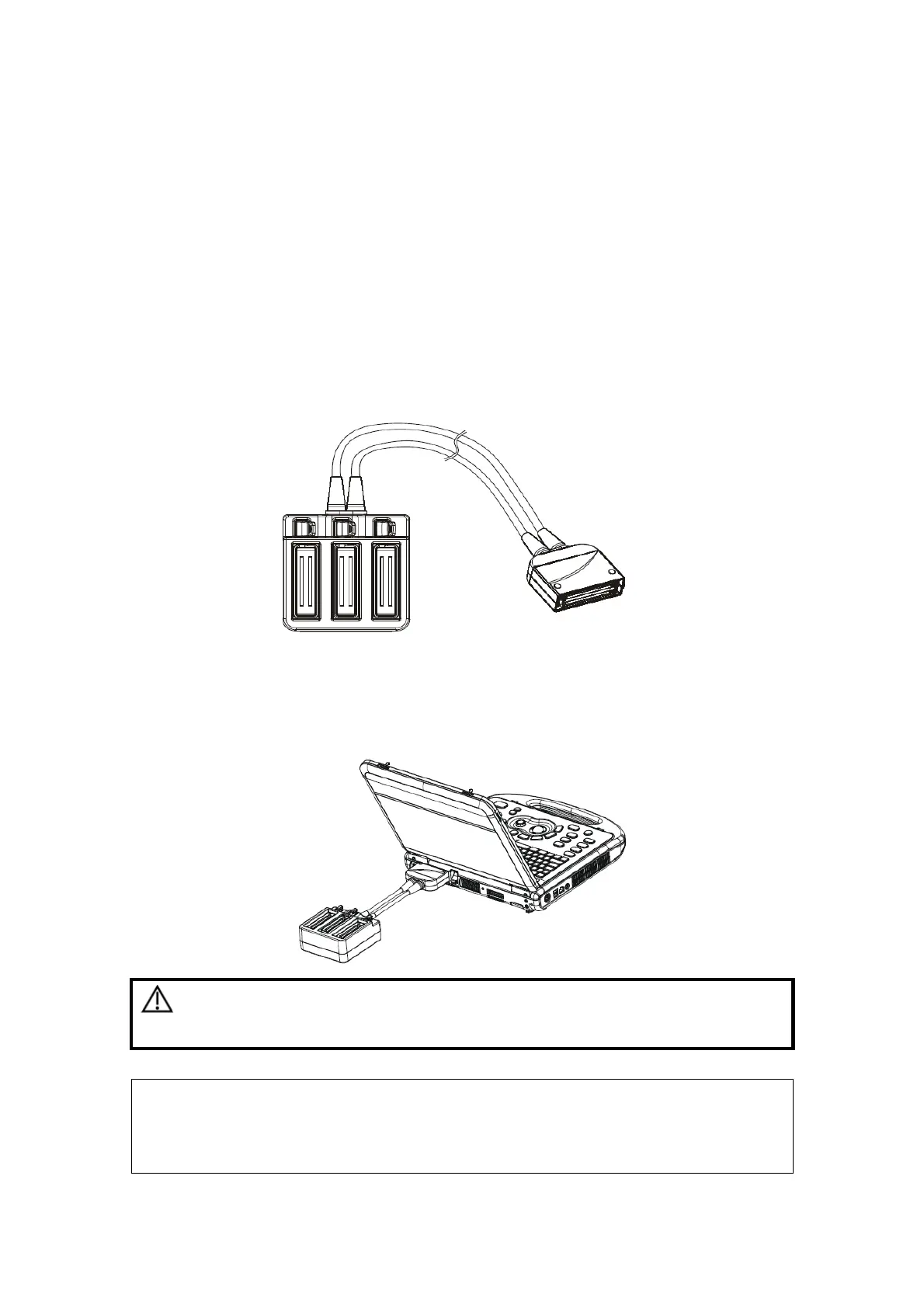

 Overview
 To connect the module:
a) Insert the module connector into the probe port with its bulge facing to the
right side of the system (when you are facing to the front of the system).
b) Toggle the lock lever to the top position.
CAUTION:
You must turn off the ultrasound system before connecting or
disconnecting the probe extend module. Otherwise the
system may be damaged.
NOTE: 1. Before connecting/disconnecting the probe extend module, please freeze
the image first to keep the module in a good condition.
2. If you use the probe extend module to connect a probe, the image quality
may be degraded.

Mindray M6 Specifications

General

Type	Portable Ultrasound System
Applications	Abdominal, Cardiac, Vascular, Small Parts, Musculoskeletal
Operating System	Windows-based
Ports	Ethernet, USB
Supported Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
